MSI B650M Project Zero DDR5 AMD AM5 M-ATX WiFi 6E PCIe 4.0 Gaming Motherboard :
Overview :

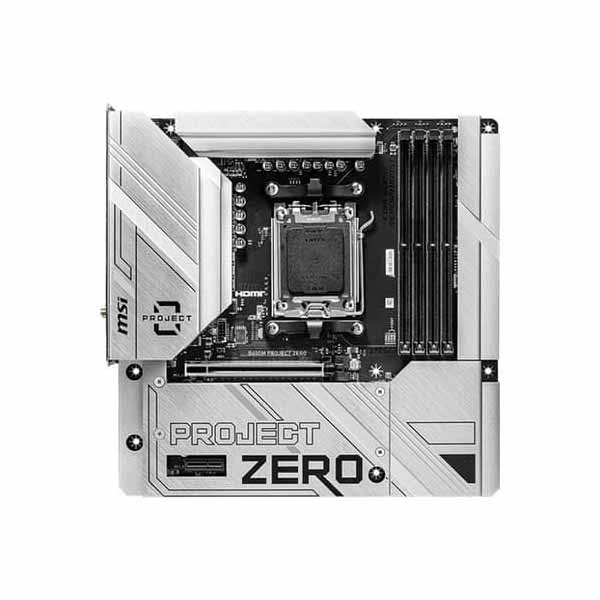

The MSI B650M Project Zero is an innovative mATX motherboard built on AMD’s B650 chipset, featuring the AM5 socket for Ryzen 7000/8000 series CPUs. MSI B650M Project Zero stands out with its rear-connect design, relocating cables like power, front-panel, SATA, and fan headers to the back—creating a truly clean and uncluttered front build aesthetic. MSI B650M Project Zero Equipped with robust 10+2+1‑phase VRM and active cooling, it supports DDR5 memory up to 7600+ MHz (OC), PCIe 4.0, dual M.2 Gen 4, Wi‑Fi 6E + Bluetooth 5.3, and 2.5 GbE LAN—making itboth stylish and performance-ready for modern PC builds
Features :
- Rear‑connect layout: hides all cabling (power, fans, USB, RGB) at the back for a minimalist build
- AM5 socket with AMD B650 chipset—compatible with Ryzen 7000/8000 CPUs
- Memory: 4× DDR5 slots, OC support up to 7600+ MHz, 256 GB capacity
- Power delivery: 10+2+1 phase VRM (80 A), suitable for high-end Ryzen CPUs
- Expansion slots: 1× PCIe 4.0 x16, 1× PCIe 3.0 x1
- Storage: 2× M.2 (PCIe 4.0 x4) + 4× SATA 6 Gb/s
- Networking: Realtek RTL8125BG 2.5 GbE LAN; AMD Wi‑Fi 6E + Bluetooth 5.3

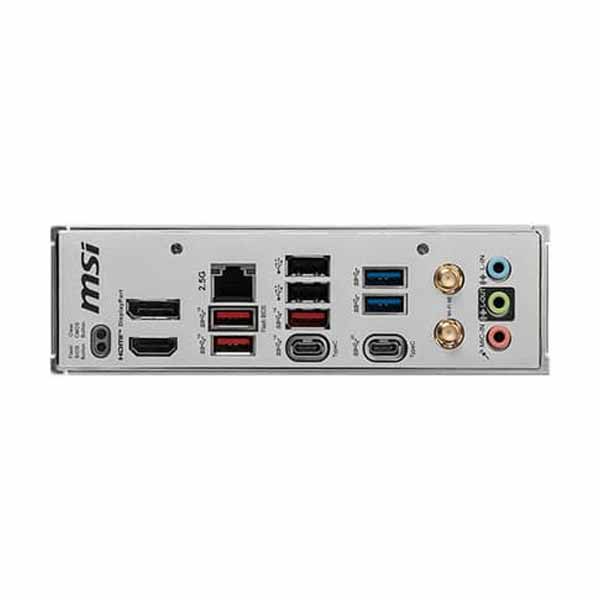

- Rear I/O: USB 3.2 Gen2x2 Type‑C (20 Gb/s), USB 3.2 Gen2 & Gen1 Type-A, HDMI 2.1, DP 1.4, audio jacks, BIOS Flashback & Clear CMOS buttons
- Audio: Realtek ALC897, 7.1 HD audio via Audio Boost
- DIY friendliness: Flash BIOS button, Debug LED, pump header for custom cooling
- Enhanced PCB: 6-layer board, 2 oz copper, SMT DDR5 slots for stability
Specifications :
| Model | MSI B650M Project Zero |
| Form Factor | micro‑ATX (243.8 × 243.8 mm) |
| CPU Socket | AM5 |
| Chipset | AMD B650 |
| Power Design | 10+2+1‑phase VRM, 80 A each for CPU phases |
| Memory | 4× DDR5, up to 7600+ MHz OC, 256 GB |
| PCIe Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| M.2 Slots | 2× PCIe 4.0 x4 (2280/2260) |
| SATA Ports | 4× SATA 6 Gb/s |
| Rear USB Ports | 1× USB-C 20 Gb/s, 3× USB-A 10 Gb/s, 2× USB-A 5 Gb/s, 2× USB 2.0 |
| Internal USB Headers | 2× USB 2.0, 2× USB 3.2 Gen1, 1× USB-C Gen2 (front) |
| Video Outputs | 1× HDMI 2.1, 1× DisplayPort 1.4 |
| LAN | Realtek RTL8125BG 2.5 GbE |
| Wi‑Fi / Bluetooth | AMD Wi‑Fi 6E, Bluetooth 5.3 |
| Audio Codec | Realtek ALC897 with 7.1 CH HD Audio & Audio Boost |
| DIY Features | Debug LED, BIOS Flashback, Clear CMOS, pump & fan headers |
| Thermal / PCB | Extended heatsinks, 6-layer, 2 oz copper |
| Back‑Connect Design | All cabling, headers and connectors relocated to rear |
| OS Support | Windows 10 / 11 (64‑bit) |
| Warranty | 3 Years |
