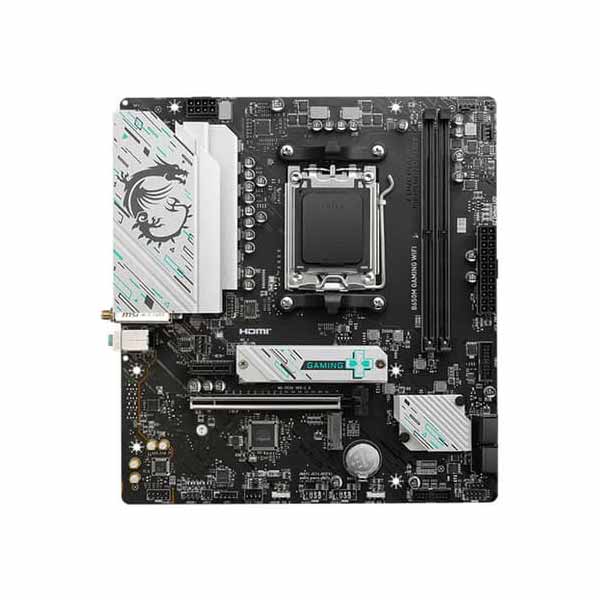

MSI B650M Gaming WiFi DDR5 AMD AM5 M-ATX WiFi 6E PCIe 4.0 Gaming Motherboard :
Overview :
The MSI B650M Gaming WiFi is a compact yet powerful micro-ATX AM5 motherboard built on the AMD B650 chipset. Perfectly tailored for modern gaming rigs, it supports AMD Ryzen 7000/8000/9000 Series processors, DDR5 memory up to 7800+ MHz (OC) in dual-channel configuration, and offers essential features like PCIe 4.0 x16, dual M.2 PCIe 4.0 storage, 2.5 GbE LAN, and Wi‑Fi 6E with Bluetooth 5.3. MSI B650M Gaming WiFi With a sturdy 5+2+1-phase VRM, Smart Fan 6, and EZ-Latch PCIe slot, it’s an excellent option for compact high-performance builds.
Features :
- AM5 platform: Supports Ryzen 7000/8000/9000 Series CPUs on the B650 chipset
- DDR5 memory: 2 DIMMs supporting up to 128 GB and OC speeds up to 7800+ MHz
- Robust VRM: 5+2+1 phase digital power delivery ensures stable power for Ryzen CPUs
- Expansion & storage: 1× PCIe 4.0 x16 (EZ-Latch), 2× PCIe 4.0 x4 M.2 slots, plus 4× SATA 6 Gb/s
- Connectivity: HDMI 2.1 & DisplayPort 1.4 outputs, multiple USB-A/C ports, front USB-C header
- Networking: Intel Wi‑Fi 6E + Bluetooth 5.3, Realtek RTL8125BG 2.5 GbE LAN
- Audio: Realtek ALC897 with 7.1 HD Audio and audio noise guar
- Cooling & build: Smart Fan 6, extended heatsinks, M.2 Shield Frozr, 6-layer 2 oz copper PCB
- User-focused: PCIe EZ-Latch, Flash BIOS button, debug LEDs, ARGB/RGB headers
Specifications :
| Model | MSI B650M Gaming WiFi |
| Form Factor | micro‑ATX (244 × 244 mm) |
| Chipset / Socket | AMD B650 / AM5 |
| CPU Support | Ryzen 7000 / 8000 / 9000 Series |
| Power Design | 5+2+1 digital VRM phases |
| Memory | DDR5, 2× DIMMs, up to 128 GB, OC to 7800+ MHz |
| PCIe Slots | 1× PCIe 4.0 x16 (EZ-Latch), 1× PCIe 3.0 x1 |
| M.2 Slots | 2× PCIe 4.0 x4 (2280), with M.2 Shield Frozr |
| SATA Ports | 4× SATA 6 Gb/s |

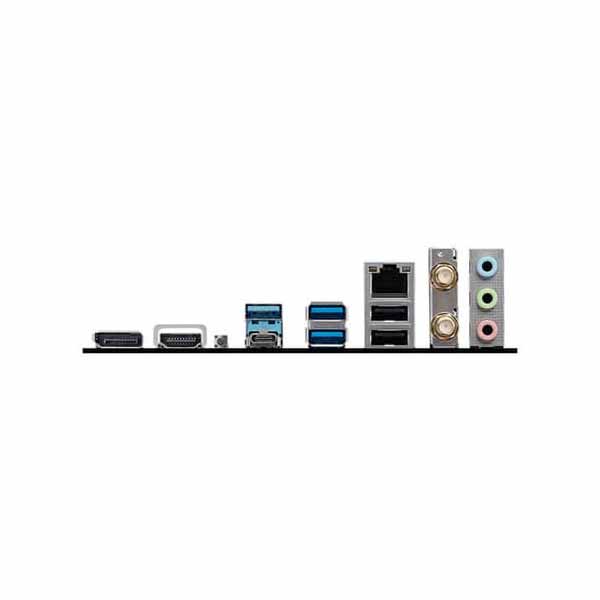

| Rear USB | USB-C 20 Gb/s, 3× USB-A 10 Gb/s, 4× USB-A 5 Gb/s, plus USB 2.0 ports |
| Internal USB Headers | 1× USB-C Gen2 (front), USB 3.2 Gen1, USB 2.0 headers |
| Video Outputs | HDMI 2.1 (4K@60Hz), DisplayPort 1.4 |
| LAN | Realtek RTL8125BG 2.5 GbE |
| Wi‑Fi / Bluetooth | Wi‑Fi 6E (802.11ax), Bluetooth 5.3 |
| Audio Codec | Realtek ALC897, 7.1 HD Audio, Audio Noise Guard |
| Cooling Features | Extended heatsinks, Smart Fan 6, M.2 Shield Frozr |
| BIOS & DIY Features | Flash BIOS, Debug LEDs, PCIe EZ-Latch, ARGB/RGB headers |
| PCB & Build | 6-layer PCB with 2 oz copper |
| OS Compatibility | Windows 11 / 10 (64-bit) |
| Warranty | 3 Years |
