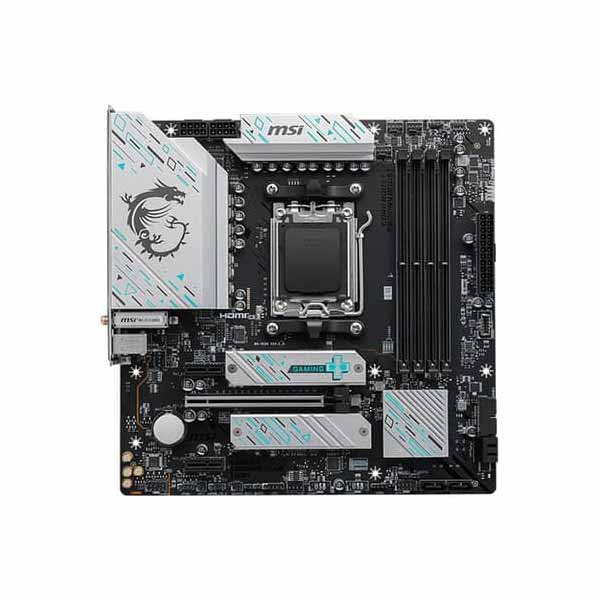

MSI B650M Gaming Plus WiFi DDR5 AMD AM5 M-ATX WiFi 6E PCIe 4.0 Gaming Motherboard :
Overview :
The MSI B650M Gaming Plus WiFi is a feature-rich micro-ATX motherboard built on the AMD B650 chipset for the AM5 platform (Ryzen 7000/8000/9000 series). MSI B650M Gaming Plus WiFi Designed for gamers and PC enthusiasts, it offers DDR5 support up to 7200 MHz+ (OC), a robust 10+2+1 VRM design, PCIe 4.0 x16, dual M.2 PCIe 4.0 storage, Wi-Fi 6E & Bluetooth 5.3, and 2.5 GbE LAN. MSI B650M Gaming Plus WiFi With Smart Fan 6, EZ-Latch PCIe, and RGB headers built in, it’s a compelling choice for compact, high-performance gaming builds.
Features :
- AM5 Socket — Supports Ryzen 7000/8000/9000 series CPUs on B650 chipset
- 10+2+1 digital VRM with Solid-Pin CPU power connectors for stable power delivery
- DDR5 Memory — Four DIMM slots supporting up to 256 GB and overclocked speeds beyond 7200 MHz
- PCIe & Storage — 1× PCIe 4.0 x16 slot with EZ-Latch; dual PCIe 4.0 x4 M.2 slots; 4× SATA 6 Gb/s
- Networking — Built-in Wi‑Fi 6E (802.11ax) + Bluetooth 5.3 and Realtek 2.5G Ethernet
- I/O & Display — HDMI 2.1, DisplayPort 1.4; rear panel USB-A/C ports (USB 3.2 Gen2x2 & Gen1); front USB‑C header
- Cooling & Design — Smart Fan 6 with multiple headers and sensors, large heatsinks, M.2 Shield Frozr
- User-Friendly — PCIe EZ-Latch, Flash BIOS Button, Debug LEDs, RGB+ARGB headers
Specifications :
| Model | MSI B650M Gaming Plus WiFi |
| Form Factor | micro‑ATX (244 × 244 mm) |
| Chipset / Socket | AMD B650 / AM5 |
| CPU Support | Ryzen 7000 / 8000 / 9000 Series |
| Power Delivery | 10+2+1 digital VRM, Solid-Pin 8‑pin CPU connectors |
| Memory | DDR5, 4× DIMM, OC up to 7200 MHz+, 256 GB max |
| PCIe Slots | 1× PCIe 4.0 x16 (EZ-Latch), 2× PCIe 3.0 x1 |
| M.2 Slots | 2× PCIe 4.0 x4 (with Shield Frozr) |
| SATA Ports | 4× SATA 6 Gb/s |

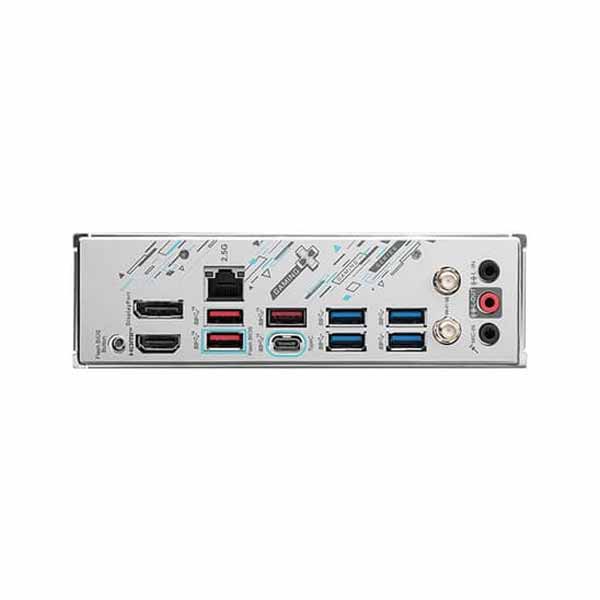

| Rear USB | 1× USB-C 20 Gb/s, 3× USB-A 10 Gb/s, 4× USB-A 5 Gb/s |
| Internal USB Headers | USB 3.2 Gen2x2 Type-C (front), USB 3.2 Gen1, USB 2.0 |
| Display Outputs | 1× HDMI 2.1 (4K@60), 1× DisplayPort 1.4 |
| Wi-Fi / Bluetooth | Wi-Fi 6E (802.11ax) / Bluetooth 5.3 |
| LAN | Realtek RTL8125BG 2.5 GbE |
| Audio | Realtek ALC897, 7.1 HD Audio, Audio Noise Guard |
| Fan Headers | Smart Fan 6 — CPU, pump & system fan headers |
| BIOS Features | Flash BIOS Button, Debug LEDs |
| RGB Headers | 1× ARGB, 1× RGB |
| Thermals | Extended heatsinks, M.2 Shield Frozr, MOSFET thermal pads |
| Extras | PCIe EZ-Latch, 6-layer PCB, high-quality components |
| OS Support | Windows 11 / 10 (64-bit) |
| Warranty | 3 Years |
