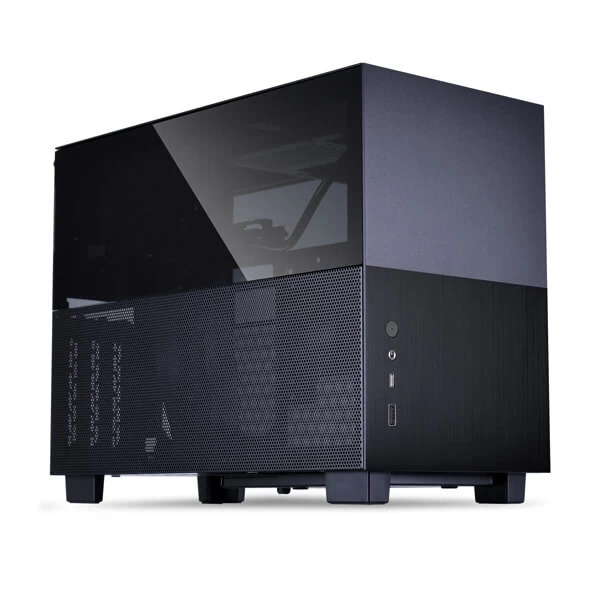

Lian Li Q58 40 Black Cabinet Mini ITX motherboard supported Small Form Factor Tempered Glass ITX Chassis with PCIe 4.0 Gen 4 Riser Cable.
Features :

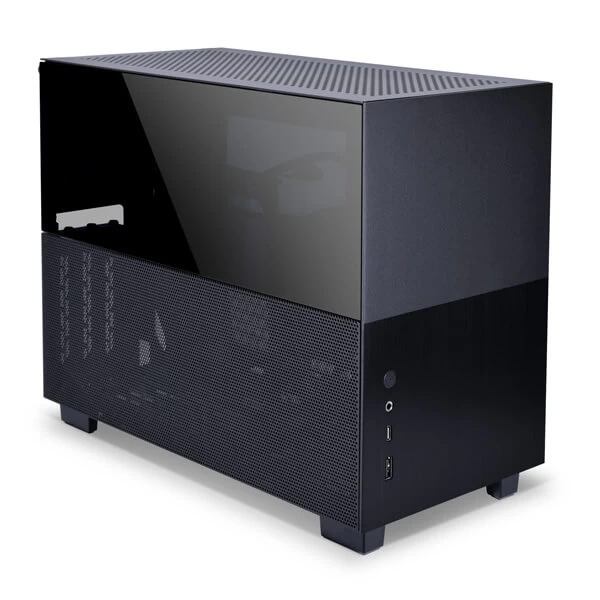

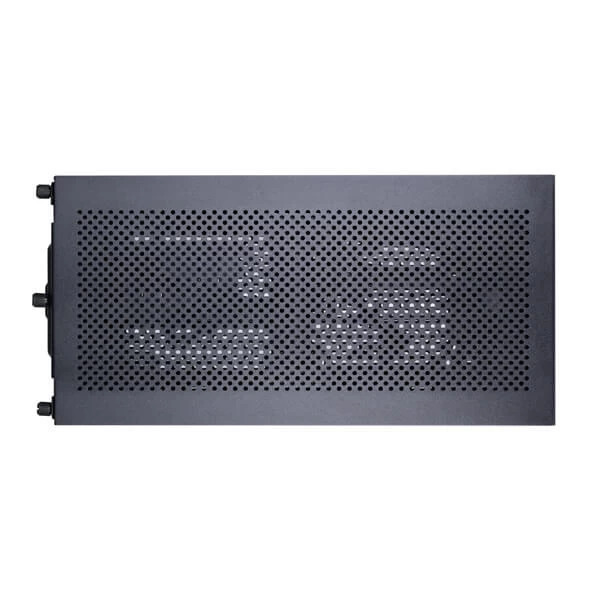

- Split Mesh and glass side panels
- Mini-ITX motherboard support with slit at top of motherboard tray to pass PCIE cable
- PCIe 4.0 version

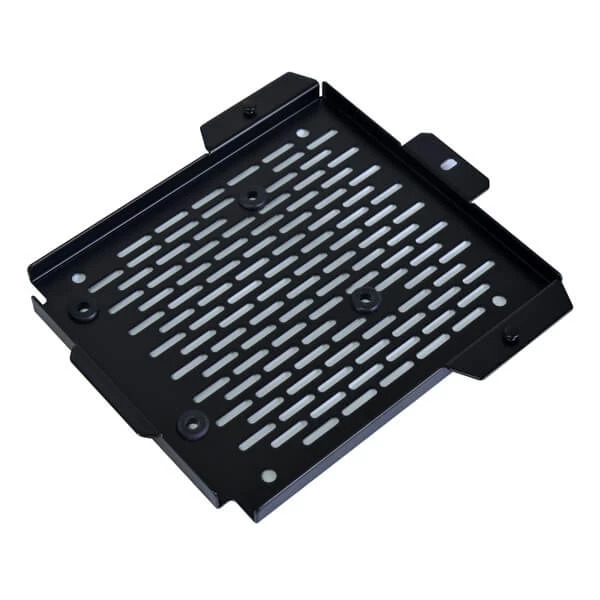

- Motherboard tray SSD mounting location
- Optional aRGB diffuses strip, can be installed at top and bottom of each side panel with bracket in Lian Li Q58 40 Black
Specifications :
| PRODUCT NAME | Lian Li Q58 40 Black | |||
|---|---|---|---|---|
| MODEL | Q58X4 | |||
| COLOR | Black | |||
| RISER CABLE GENERATION | PCIe4.0 | |||
| DIMENSIONS | (D) 342mm x (W) 170mm x (H) 250mm | |||
| MATERIALS | Aluminum Exterior SPCC Steel Interior 3.0mm tinted tempered glass side panels | |||
| MOTHERBOARD SUPPORT | Mini-ITX | |||
| FAN SUPPORT | SFX PSU Mode: Top：2x 120mm or 2x 140mm Bottom：1x 120mm ATX PSU Mode: Top：1x 120mm or 1x 140mm Bottom：1x 120mm | |||
| RADIATOR SUPPORT | SFX PSU Mode: Top：1x 240mm or 280mm (Max length 315mm, or max 325mm if remove front SSD tray) Bottom：1x 120mm ATX PSU Mode: Top：1x 120mm Bottom：1x 120mm | |||
| PSU SUPPORT | SFX/SFX-L/ATX (max length 160mm) | |||
| GPU LENGTH CLEARANCE | Max 320mm | |||
| CPU COOLER CLEARANCE | Max 67mm | |||
| DRIVE SUPPORT | SFX PSU Mode: 4x 2.5” SSD or 3x 2.5” SSD + 1x 3.5” HDD ATX PSU Mode: 2x 2.5” SSD | |||
| EXPANSION SLOT | 3 | |||

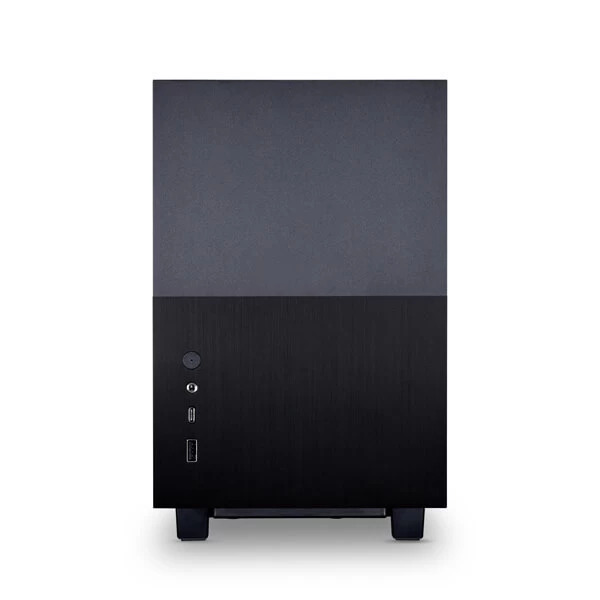

| I/O PORTS | 1x USB 3.0, 1x USB 3.1 TYPE-C, 1x HD AUDIO | |||

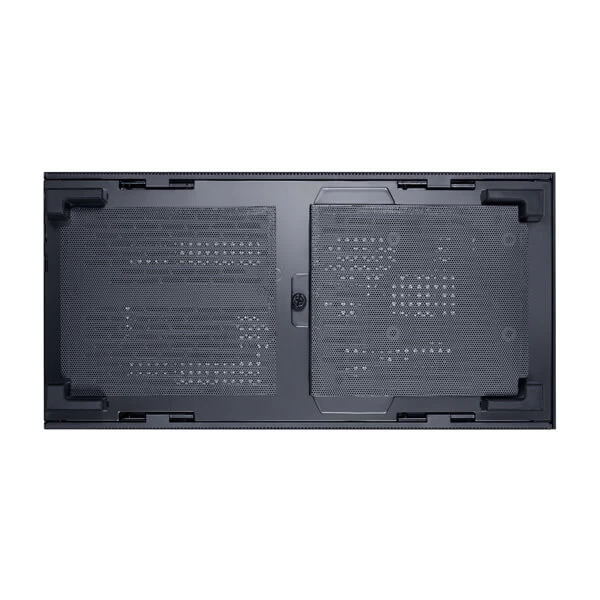

| DUST FILTER | 2 x bottom magnetic | |||
| WARRANTY | 1 year | |||
