Lian Li Lancool 216 Mesh White ARGB Mid Tower Cabinet
- Mid-tower chassis configurable for air cooling and water cooling
- Airflow optimized front, top and PSU shroud side mesh panels
- Equipped with 2 x front 160 PWM fans (ARGB or non-RGB) and 1 x rear 140mm PWM fan
- Supports 360 radiator at the top, front and a maximum of 10 fans
- Includes rear PCIe fan bracket
- Front I/O that can be relocated to the bottom
- Extensive cable management solution
The Lian Li Lancool 216 Mesh White ARGB is a mainstream case that features all-around mesh panels for optimal airflow. Thanks to its modular rear panel, it can be optimized for air cooling or water cooling. It includes 2 x 160mm and 1 x 140mm pre-installed PWM fans and an innovative rear PCIe fan bracket to maximize airflow.

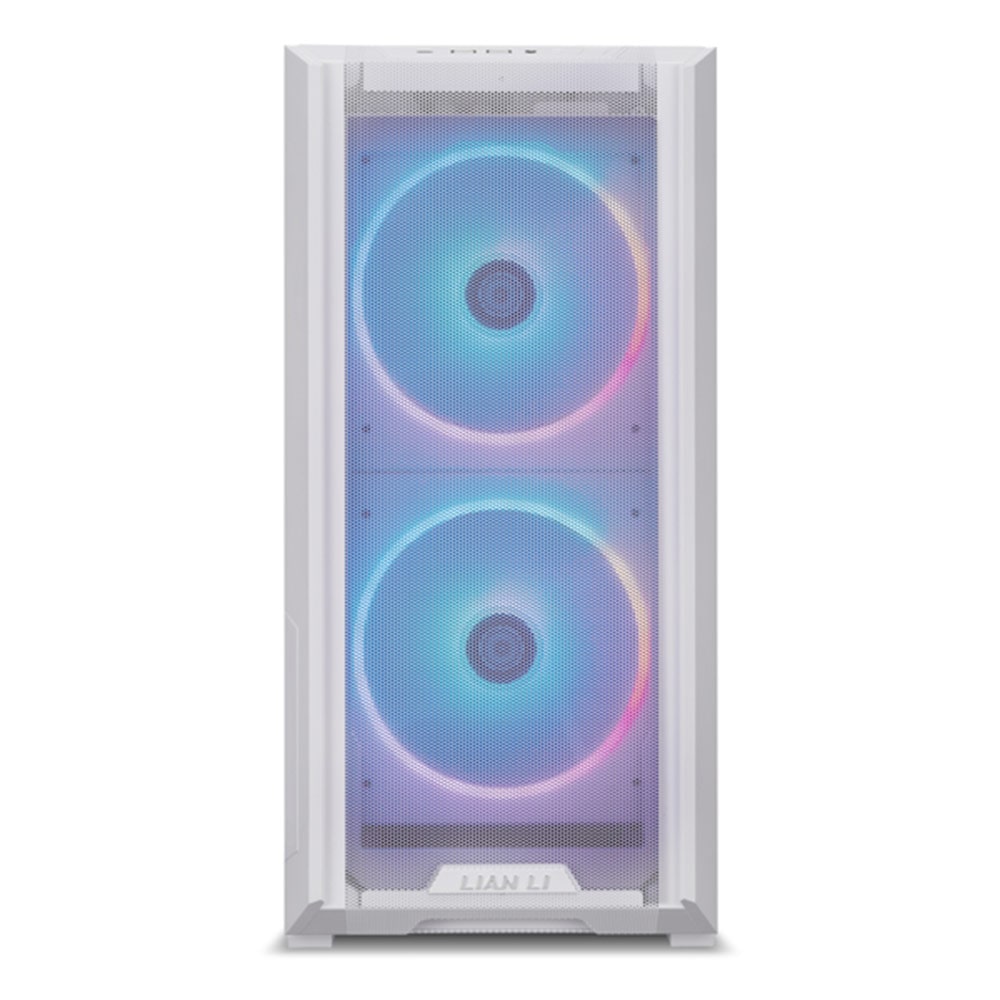

CONTINUOUS FRONT TO TOP MESH
To ensure adequate airflow is provided to the system, the Lian Li Lancool 216 Mesh White ARGB features mesh at the front, top, and on the PSU shroud’s side. The front mesh extends to the top for a continuous mesh panel.
LANCOOL 216 RGB FANS
Lian Li Lancool 216 Mesh White ARGB has included 160mm ARGB fans feature two channels of LEDs (one on the outer rim of the fan, another at the shaft of the fan blades) that can be controlled separately via an optional accessory, or via the motherboard lighting software by connecting them directly to a motherboard 5V 3pin header.
Located in the second chamber behind the motherboard, a SATA-powered fan hub can support up to 4x ARGB and PWM fans.
AIR COOLING MODE / WATER COOLING MODE
The modular motherboard I/O allow users to move the motherboard to a higher position which is more favorable for air-cooled systems, or a lower position for water-cooled systems.
Set lower, the motherboard leaves a 63mm thick gap at the top to install radiator/fan combos, ideal for AIOs or custom water cooling.
FRONT I/O CAN BE RELOCATED
Including a power button, reset button, audio port, 2x USB3.0 ports, and a USB Type C port, the front I/O module can be relocated to the lower left side of the front panel.
The Lian Li Lancool 216 Mesh White ARGB supports ATX, Micro-ATX, MINI-ITX motherboards, and E-ATX under 280mm in width (when the grommet bar is flipped 180°). In addition, thanks to its symmetrical design, cable management in the 2nd chamber remains unaffected.
LATEST GEN. GPU READY
With enough room for graphics cards up to 392mm in length, and 180mm in height (for air cooling mode), the Lian Li Lancool 216 Mesh White ARGB is compatible with even the largest NVIDIA 4000 series cards.
PRESSURE LEAK FREE
Pre-installed at the front of the top radiator bracket, a seal plate ensures no pressure leak is created when installing smaller than a 360 radiator/3x120mm fans at the top.
REMOVEABLE TOP RADIATOR BRACKET
The top mounting bracket can be completely removed from the case for easier hardware installation. The bracket comes off with the left side frame bar to provide optimal clearance.
PCIE FAN BRACKET
The GPU placed at the top of the expansion slots in air cooling mode opens up the possibility to add a 120mm fan at the rear of the case without obstructing the GPU I/O. This is also possible with a vertically mounted GPU in both air-cooled and water-cooled mode. The additional 120mm fan provides better cooling for the GPU and a greater intake/exhaust balance for the system.
VERTICAL GPU COMPATIBLE
The PCIe expansion slot panel can be rotated to vertically install the GPUs, only an additional riser cable is required.

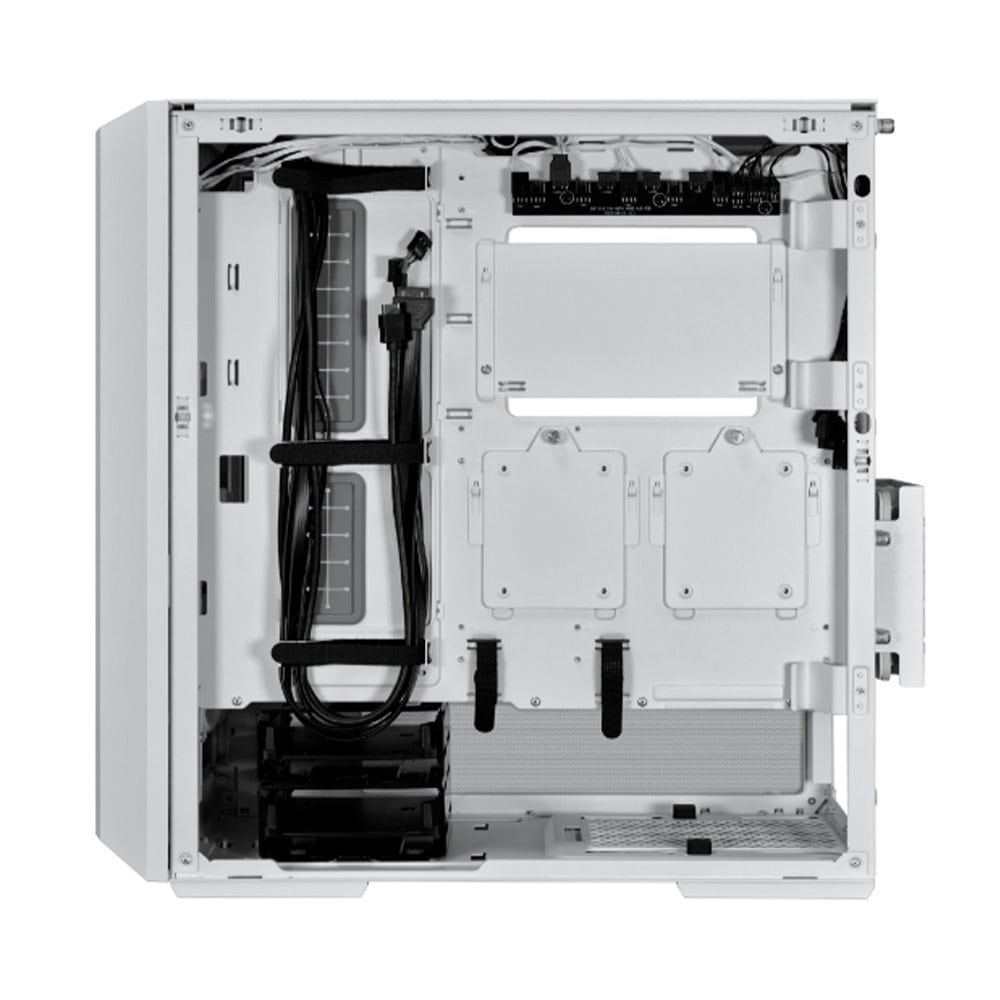

The Lian Li Lancool 216 Mesh White ARGB offers multiple options for easy cable management. Along the cable grommet bar, 3 large velcro straps can hold 2 different sets of cables. 3 small clips are located along the rear side panel, ideal for cleanly routing the CPU 8pin cable, and 2 additional velcro straps are located near the PSU chamber to help hold down the extra PSU cable length away from the ventilation path in the bottom chamber.
For users who take dust management to the next level, a magnetic front panel dust filter is available in Lian Li Lancool 216 Mesh White ARGB as an optional accessory. The dust filter fits perfectly between the front panel and the front fans.
For vertical GPU mounting, only an additional riser cable is required. With a PCB that has a hole spacing of 112.7mm, the Lian-Li PCIe 4.0 X16 RISER CABLE is compatible with the Lian Li Lancool 216 Mesh White ARGB.
|MODEL||Lian Li Lancool 216 Mesh White ARGB|
|DIMENSIONS||(D) 480.9mm x (W) 235mm x (H) 491.7mm|
|MATERIAL||Steel / 4.0mm Tempered Glass|
|MOTHERBOARD SUPPORT||E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX|
|FAN SUPPORT||Top: 3 x 120mm / 2 x 140mm|
PSU Cover: 2 x 120mm / 2 x 140mm (Air Cooling mode)
Front: 3 x 120mm / 2 x 140mm / 2 x 160mm
Rear: 1 x 120mm / 1 x 140mm
PCIe Fan Bracket: 1 x 120mm
|RADIATOR SUPPORT||Front: 360 / 280 / 240mm|
Top: 360 / 280 / 240mm
|PSU SUPPORT LENGTH||ATX (Under 220mm)|
|GPU LENGTH CLEARANCE||392mm (max)|
|CPU COOLER HEIGHT CLEARANCE||180.5mm (max)|
|DRIVE||Drive Cage：2 x 2.5” SSD + 2 x 3.5” HDD|
PSU Cover：2 x 2.5” SSD
Behind MB tray: 2 x 2.5” SSD
|I/O PORTS||1 x Power Button|
1 x Reset Button
2 x USB 3.0
1 x USB Type C
1 x Audio
|INCLUDED FANS||LANCOOL 216 RGB|
Front: 2 x 160mm ARGB Fans
Rear: 1 x 140mm PWM Fan
Front: 2 x 160mm PWM Fans
Rear: 1 x 140mm PWM Fan
|DUST FILTERS||1 x Bottom|
