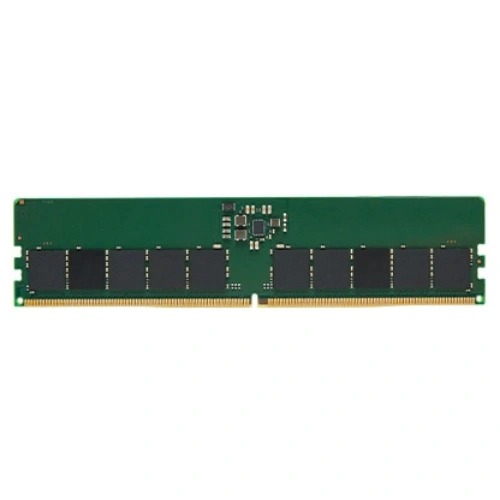

Kingston Server Premier ECC Unbuffered DIMM 16GB (16GBx1) 5600MHz CL46 DDR5 Workstation RAM
Feature:
Kingston Server Premier ECC Unbuffered DIMM 16GB (16GBx1) 5600MH KSM56E46BS8KM-16HA is a 2G x 72-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Features:
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x72 ECC (x36, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free Memory Module Specifications
Specification:
| Model | KSM56E46BS8KM-16HA |
| Product Series | Server Premier |
| Memory Type | DDR5 |
| Capacity | 16GB |
| Lighting | – |
| Kit Type | 16GB x 1 |
| Speed | 5600 MHz |
| Tested Latency | 46 |
| Tested Voltage | 1.1 V |
| Warranty | Limited Lifetime |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
