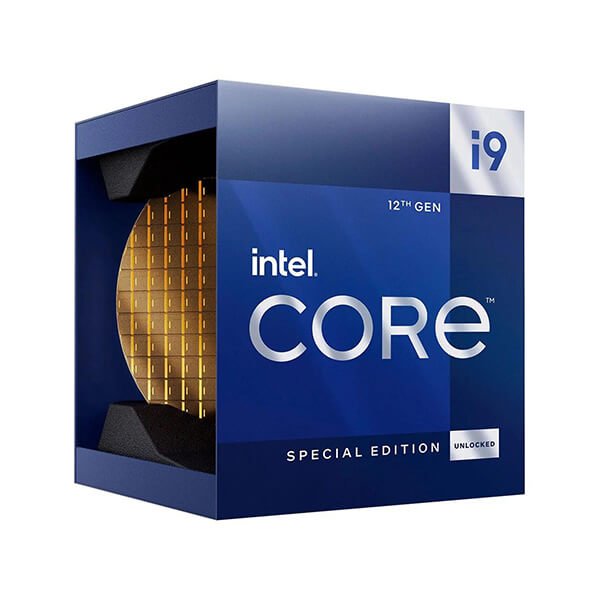

Intel Core i9-12900KS 12th Generation Desktop Processor – 16 Cores (8P+8E) / 24 Threads
Overview:
Power up your productivity, gaming, and content-creation experiences by installing the Intel Core i9-12900KS 3.4 GHz 16-Core LGA 1700 Processor into your desktop computer system. Built using a Hybrid Core architecture with the Intel 7 process this i9 12th generation desktop processor’s 16 cores combine the performance of eight Efficient-cores and eight 3.4 GHz Performance-cores.
The low-voltage Efficient-cores handle background tasks for multitasking while the Performance-cores provide speed for demanding applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time to maximize performance.
Additionally, this processor has a 5.3 GHz Turbo Boost Max 3.0 frequency with 30MB of cache for fast and reliable performance. Thermal Velocity Boost technology can temporarily push speeds up to 5.5 GHz when allowable to help accelerate burst workloads.
The Intel Core i9-12900KS also includes support for up to PCI Express 5.0 and dual-channel DDR5 memory at 4800 MHz to help run and multitask a variety of demanding applications. You can overclock this processor for even greater performance.
The Intel Core i9-12900KS features integrated Intel UHD 770 Graphics. Please note that a thermal solution is NOT included. The processor is compatible with Intel LGA 1700 socket motherboards and is backed by a 3-year warranty.
Specifications:
| Essentials | |
| Product Collection | 12th Generation Intel® Core™ i9 Processors |
| Code Name | Products formerly Alder Lake |
| Vertical Segment | Desktop |
| Processor Number | i9-12900KS |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Total Cores | 16 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 8 |
| Total Threads | 24 |
| Max Turbo Frequency | 5.50 GHz |
| Intel® Thermal Velocity Boost Frequency | 5.50 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency | 5.30 GHz |
| Efficient-core Max Turbo Frequency | 4.00 GHz |
| Performance-core Base Frequency | 3.40 GHz |
| Efficient-core Base Frequency | 2.50 GHz |
| Performance-core Max Turbo Frequency | 5.20 MHz |
| Total L2 Cache | 14 MB |
| Processor Base Power | 150 W |
| Maximum Turbo Power | 241 W |
| Cache | 30 MB Intel® Smart Cache |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| ECC Memory Supported | Yes |
| Processor Graphics | |
| Processor Graphics | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI) | 4096 x 2160 @ 60Hz |
| Max Resolution (DP) | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel) | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported | 4 |
| Device ID | 0x4680 |
| OpenCL* Support | 3.0 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2022E |
| Intel® Thermal Velocity Boost Temperature | 50 °C |
| TJUNCTION | 90°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Adaptive Boost Technology | Yes |
| Intel® Thermal Velocity Boost | Yes |
| Intel® Turbo Boost Max Technology 3.0 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper-Threading Technology | Yes |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel vPro® Platform Eligibility | Intel vPro® Enterprise |
| Intel vPro® Enterprise Platform Eligibility | Yes |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Active Management Technology (AMT) | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Hardware Shield Eligibility | Yes |
| ntel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Total Memory Encryption – Multi Key | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
