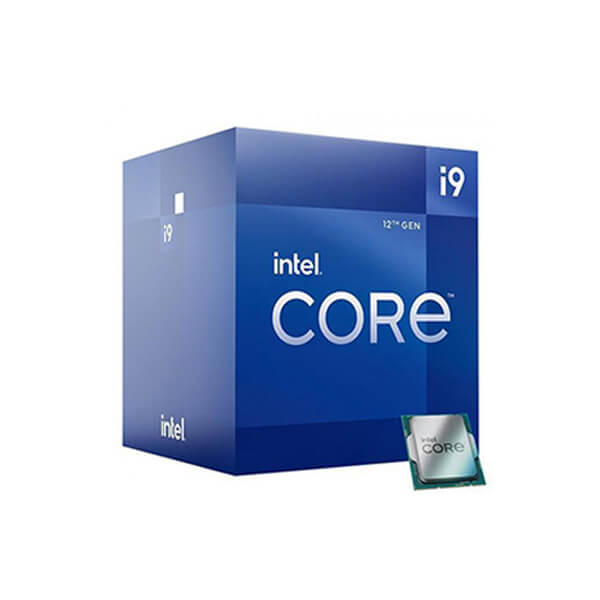

Intel Core i9-12900 12th Generation Desktop Processor – 6 Cores / 12 Threads
Overview:
The latest Intel Core i9-12900 12th generation Intel Core desktop processor is designed to support socket LGA 1700. The Intel 12th gen CPU comes with 16 cores and 24 threads with Hyper Threading technology to run multiple programs simultaneously without slowing down the system.
The Intel Core i9-12900 has a 2.40 GHz as Base frequency, the Intel Turbo Boost 3.0 technology cranks maximum turbo frequency up to blazing 5.10 GHz. The intel Processor is desirable for a gamer looking for a fantastic in-game experience and a creator that is ready to do more creating and sharing alike.
All this paired with 30MB of Intel Smart Cache in Intel Core i9-12900. It has a TDP rating of 202W with max memory size of 128GB dual-channel DDR5 support up-to 4800MHz and also DDR4 support up-to 3200MHz with Intel top notch security features.
Specifications:
| Essentials | |
| Product Collection | 12th Generation Intel® Core™ i9 Processors |
| Code Name | Products formerly Alder Lake |
| Vertical Segment | Desktop |
| Processor Number | i9-12900 |
| Status | Launched |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet, Workstation |
| CPU Specifications | |
| Total Cores | 16 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 8 |
| Total Threads | 24 |
| Max Turbo Frequency | 5.10 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency | 5.10 GHz |
| Processor Base Frequency | 2.40 GHz |
| Cache | 30 MB Intel® Smart Cache |
| Efficient-core Base Frequency | 1.80 GHz |
| Efficient-core Max turbo Frequency | 3.80 GHz |
| Performance-core Max turbo Frequency | 5.00 GHz |
| Total L2 Cache | 14 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 202 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types |
|
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| ECC Memory Supported | Yes |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x4680 |
| OpenCL* Support | 2.1 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported‡ | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel vPro® Platform Eligibility ‡ | Yes |
| Intel vPro® Enterprise Platform Eligibility ‡ | Yes |
| Intel vPro® Essentials Platform Eligibility ‡ | Yes |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Active Management Technology (AMT) ‡ | Yes |
| Intel® Standard Manageability (ISM)‡ | Yes |
| Intel® One-Click Recovery ‡ | Yes |
| Intel® Hardware Shield Eligibility ‡ | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Total Memory Encryption – Multi Key | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® Stable IT Platform Program (SIPP) | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ | Yes |
| Intel® Virtualization Technology (VT- x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
