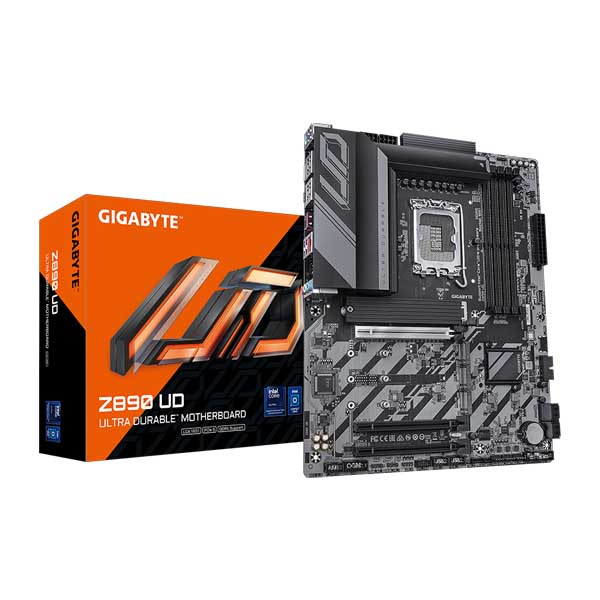

Gigabyte Z890 UD ATX Motherboard (Intel Socket LGA 1851, DDR5)
Feature:
- Gigabyte Z890 UD Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- PCIe EZ-Latch : PCIe slots with Quick Release & Screwless Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN
- Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
Infinite Memory Performance
Gigabyte Z890 UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Durable Performance
Gigabyte Z890 UD Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital Twin VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Comprehensive Thermal
Gigabyte Z890 UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
| CPU Socket | LGA1851 |
| Supported Processors | Intel® Core™ Ultra Processors |
| Chipset | Intel® Z890 Express Chipset |
| Form Factor | ATX (30.5 × 24.4 cm) |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory Capacity | 256 GB |
| Memory Architecture | Dual Channel |
| Supported Memory Speeds | DDR5 5600–9200 MT/s (O.C.) |
| ECC Memory Support | ECC Un-buffered DIMM (Non-ECC Mode) |
| Non-ECC Memory Support | 1Rx8 / 2Rx8 / 1Rx16 Un-buffered DIMM |
| XMP Support | Yes |
| CUDIMM Support | Yes |
| Integrated Graphics Support | Intel® HD Graphics (CPU Dependent) |
| USB4 Video Output | 1 × USB4® USB Type-C® |
| USB4 Max Resolution | 3840 × 2160 @ 144Hz |
| DisplayPort | 1 × DisplayPort 2.1 |
| DisplayPort Max Resolution | 3840 × 2160 @ 144Hz |
| Audio Codec | Realtek® Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel HD Audio |
| LAN | Realtek® 2.5GbE LAN (2.5Gbps / 1Gbps / 100Mbps) |
| PCIe x16 Slot (CPU) | 1 × PCIe 5.0 x16 |
| PCIe x16 Slots (Chipset) | 2 × PCIe 4.0 x4 |
| M.2 PCIe 5.0 Slots | 1 |
| M.2 PCIe 4.0 Slots | 3 |
| Total M.2 Slots | 4 |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (NVMe & SATA) |
| Rear USB4 Port | 1 × USB4® Type-C® |
| Rear USB 3.2 Gen 2 | 1 × Type-A |
| Rear USB 3.2 Gen 1 | 4 × Ports |
| Rear USB 2.0 | 4 × Ports |
| Internal USB Type-C Header | 1 × USB 3.2 Gen 1 |
| Internal USB 3.2 Gen 1 Header | 1 |
| Internal USB 2.0 Headers | 2 |
| CPU Fan Header | 1 |
| CPU Pump Header | 1 |
| System Fan Headers | 4 |
| ARGB Headers | 3 × Addressable RGB Gen2 |
| RGB Headers | 1 |
| Power Connectors | 1 × 24-pin ATX, 2 × 8-pin ATX 12V |
| M.2 Connectors | 4 × M.2 Socket 3 |
| Thunderbolt Add-in Card Headers | 2 |
| TPM Header | 1 |
| Serial Port Header | 1 |
| Power Button | Yes |
| Reset Button | Yes |
| Q-Flash Plus Button | Yes |
| Clear CMOS Jumper | Yes |
| Back Panel USB 2.0 | 4 × USB 2.0/1.1 |
| Back Panel USB 3.2 Gen 1 | 4 × USB 3.2 Gen 1 |
| Back Panel USB 3.2 Gen 2 | 1 × USB 3.2 Gen 2 Type-A |
| Back Panel USB4 | 1 × USB4® Type-C® |
| PS/2 Port | 1 × PS/2 Keyboard/Mouse |
| Back Panel DisplayPort | 1 × DisplayPort |
| Back Panel LAN Port | 1 × RJ-45 |
| Back Panel Audio Jacks | 3 |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control |
| BIOS | 1 × 256 Mbit AMI UEFI BIOS |
| BIOS Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN Bandwidth Management Software |
| Operating System | Windows 11 64-bit |
