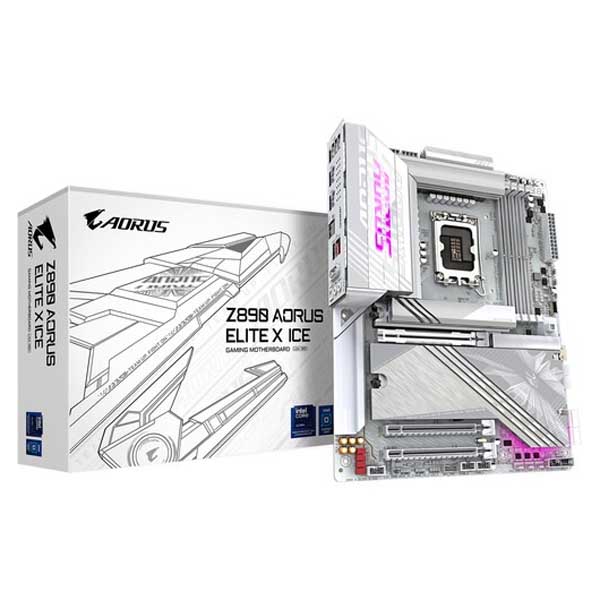

Gigabyte Z890 AORUS ELITE X ICE WIFI ATX Motherboard (Intel Socket LGA 1851, DDR5, Wi-Fi 7)
Feature:
- Gigabyte 890 AORUS ELITE X ICE WIFI Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 16+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH：Auto-Overclocking Software by AI models
- AI Perfdrive：Provides optimal and customized BIOS preset profile for users
- Premium Compatibility：4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI： Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity：THUNDERBOLT™ 4 Type-C with DP-Alt
- High-Res Audio：ALC1220 & WIMA Audiophile Grade Capacitors
- Ultra Durable PCIe Armor：The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
Memory
Infinite Memory Performance
Gigabyte Z890 AORUS ELITE X ICE WIFI gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Effortlessly Boost Your DDR5 Memory Speed
Gigabyte Z890 AORUS ELITE X ICE WIFI DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits.
Sturdy VRM Design
Steady Power
Better Play Gigabyte Z890 AORUS ELITE X ICE WIFI, steady power keeps your gaming smooth.
Cooling
Comprehensive Thermal
Gigabyte Z890 AORUS ELITE X ICE WIFImotherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient
Specification:
| CPU Socket | LGA1851 |
| Supported Processors | Intel® Core™ Ultra Processors |
| Chipset | Intel® Z890 Express |
| Form Factor | ATX (30.5 × 24.4 cm) |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory Capacity | 256 GB |
| Memory Architecture | Dual Channel |
| Supported Memory Speeds | DDR5 5600–6400 MT/s (Native)DDR5 6600–9500 MT/s (O.C.) |
| ECC Memory Support | ECC Un-buffered DIMM (Non-ECC Mode) |
| XMP Support | Yes |
| CUDIMM Support | Yes |
| Integrated Graphics Support | Intel® HD Graphics (CPU Dependent) |
| Thunderbolt Video Output | 1 × Intel® Thunderbolt™ 4 (USB4 Type-C®) |
| Max Resolution (Thunderbolt Monitor) | 5120 × 2880 @ 60Hz |
| Max Resolution (USB4 Type-C Monitor) | 3840 × 2160 @ 240Hz |
| Front HDMI Port | 1 × HDMI 1.4 |
| Front HDMI Max Resolution | 1920 × 1080 @ 30Hz |
| Audio Codec | Realtek® ALC1220 |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel HD Audio |
| S/PDIF Support | Optical S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN |
| Wi-Fi | Wi-Fi 7 (MediaTek MT7925 Rev 1.0 / Realtek RTL8922AE Rev 1.1) |
| Bluetooth | Bluetooth 5.4 |
| Wireless Bands | 2.4 GHz / 5 GHz / 6 GHz |
| PCIe x16 Slot (CPU) | 1 × PCIe 5.0 x16 |
| PCIe x16 Slot (Chipset) | 1 × PCIe 4.0 x4 |
| PCIe Slot (Chipset) | 1 × PCIe 4.0 x1 |
| M.2 Slots | 5 × M.2 Socket 3 |
| M.2 PCIe 5.0 Slots | 1 |
| M.2 PCIe 4.0 Slots | 4 |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (NVMe & SATA) |
| Rear Thunderbolt Ports | 1 × Thunderbolt™ 4 (40Gbps) |
| Rear USB 3.2 Gen 2 | 2 × Type-A |
| Rear USB 3.2 Gen 1 | 4 × Ports |
| Rear USB 2.0 | 4 × Ports |
| Internal USB Type-C Header | 1 × USB 3.2 Gen 2×2 |
| Internal USB 3.2 Gen 1 Header | 1 |
| Internal USB 2.0 Headers | 2 |
| CPU Fan Headers | 1 |
| CPU Pump Header | 1 |
| System Fan Headers | 6 |
| ARGB Headers | 3 × Addressable RGB Gen2 |
| RGB Headers | 1 |
| Power Connectors | 1 × 24-pin ATX2 × 8-pin ATX 12V |
| Front Panel Audio Header | 1 |
| Front Panel Header | 1 |
| TPM Header | 1 |
| Temperature Sensor Headers | 2 |
| Q-Flash Plus Button | Yes |
| Power Button (Onboard) | Yes |
| Reset Button (Onboard) | Yes |
| Clear CMOS Jumper | Yes |
| Noise Detection Header | Yes |
| Back Panel USB 2.0 | 4 × USB 2.0/1.1 |
| Back Panel USB 3.2 Gen 1 | 4 × USB 3.2 Gen 1 |
| Back Panel USB 3.2 Gen 2 | 2 × USB 3.2 Gen 2 Type-A |
| Back Panel Thunderbolt 4 | 1 × USB Type-C |
| Back Panel LAN Port | 1 × RJ-45 |
| Back Panel Audio | 2 × Audio Jacks |
| Back Panel S/PDIF | 1 × Optical S/PDIF Out |
| Antenna Connectors | 2 × (2T2R) |
| BIOS | 1 × 256 Mbit AMI UEFI BIOS |
| Hardware Monitoring | Voltage, Temperature, Fan Speed, Water Flow, Fan Fail Warning, Noise Detection |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN Bandwidth Management Software |
| Operating System Support | Windows 11 64-bit |
