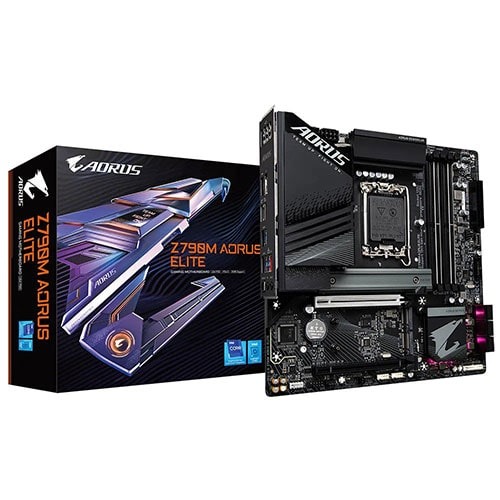

Gigabyte Z790M Aorus Elite M-ATX Motherboard (Intel Socket LGA 1700, DDR5)
Feature:
- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：HDMI, DP, Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, Gigabyte Z790M Aorus Elite always follows the latest trends and provides customers with advanced features and latest technologies. Gigabyte Z790M Aorus Elite motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
OUTSTANDING THERMAL DESIGN
Gigabyte Z790M Aorus Elite Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
Gigabyte Z790M Aorus Elite Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage connectivity.
PERSONALIZATION
Gigabyte Z790M Aorus Elite motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
Gigabyte Z790M Aorus Elite Ultra Durableâ„¢ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Specification:
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| L3 Cache | Varies with CPU |
| Chipset | Intel® Z790 Express Chipset |
| Memory Support | DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4400 MT/s |
| Memory Slots | 2 × DDR5 DIMM |
| Maximum Memory Capacity | Up to 128GB (64GB per DIMM) |
| Memory Architecture | Dual Channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (Non-ECC Mode) |
| Non-ECC Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP Support | Yes |
| Onboard Graphics | Intel® HD Graphics (CPU Dependent) |
| HDMI Port | 1 × HDMI 2.1 |
| HDMI Maximum Resolution | 4096 × 2160 @ 60Hz |
| DisplayPort | 1 × DisplayPort 1.4 |
| DisplayPort Maximum Resolution | 5120 × 2160 @ 60Hz |
| Audio Codec | Realtek® ALC4080 CODEC |
| Audio Channels | 2-Channel High Definition Audio |
| DTS Support | DTS:X® Ultra |
| LAN | Intel® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Module | Intel® Killer™ Wi-Fi 6E AX1690 |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Wireless Bands | 2.4GHz / 5GHz / 6GHz |
| Bluetooth | Bluetooth 5.3 |
| Wi-Fi Speed | Up to 2.4 Gbps (11ax 160MHz) |
| PCIe Slot | 1 × PCIe 5.0 x16 |
| M.2 Slots | 2 × M.2 Socket 3 |
| M.2 CPU Slot | 1 × PCIe 4.0 x4/x2 (2260/2280) |
| M.2 Chipset Slot | 1 × PCIe 4.0 x4/x2 (2280) |
| SATA Ports | 2 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 (NVMe & SATA) |
| Rear USB Type-C | 1 × USB 3.2 Gen 2×2 |
| Internal USB Type-C Header | 1 × USB 3.2 Gen 2 |
| Rear USB 3.2 Gen 2 Type-A | 3 |
| Rear USB 3.2 Gen 1 | 2 |
| Internal USB 3.2 Gen 1 Header | 1 |
| Rear USB 2.0 | 2 |
| Internal USB 2.0 Header | 1 |
| Main Power Connector | 1 × 24-pin ATX |
| CPU Power Connector | 1 × 8-pin ATX 12V |
| External Power Connector | 1 |
| CPU Fan Header | 1 |
| Fan/Pump Header | 1 |
| System Fan Headers | 2 |
| Addressable RGB Header | 1 |
| RGB Header | 1 |
| Front Panel Header | 1 |
| Front Panel Audio Header | 1 |
| Speaker Header | 1 |
| Reset Button | 1 |
| Reset Jumper | 1 |
| Clear CMOS Jumper | 1 |
| Back Panel DisplayPort | 1 |
| Back Panel HDMI | 1 |
| Back Panel USB Type-C | 1 × USB 3.2 Gen 2×2 |
| Back Panel USB 3.2 Gen 2 Type-A | 3 |
| Back Panel USB 3.2 Gen 1 | 2 |
| Back Panel USB 2.0 | 2 |
| Back Panel Q-Flash Plus Button | 1 |
| Back Panel RJ-45 | 1 |
| Back Panel Audio Jacks | 2 |
| SMA Antenna Connectors | 2 × (2T2R) |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control |
| BIOS | 1 × 256 Mbit Flash |
| BIOS Type | Licensed AMI UEFI BIOS |
| BIOS Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM Version), LAN Bandwidth Management Software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Mini-ITX (17.0 × 17.0 cm) |
