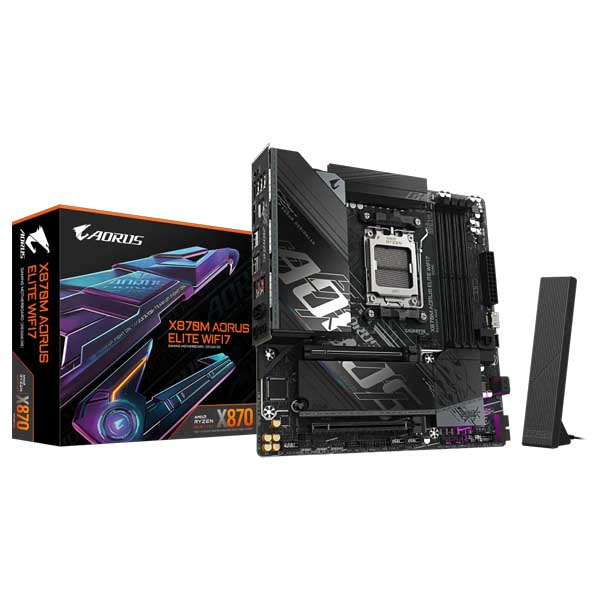

Gigabyte X870M Aorus Elite WIFI M-ATX Motherboard (AMD Socket AM5, DDR5, Wi-Fi 7)
Feature:
- X3D Turbo Mode：Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-Latch：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI：Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
- Ultra-Fast Storage：2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
- Fast Networking：2.5GbE LAN & Wi-Fi 7
- Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
X3D Turbo Mode
Unleash New Era Gaming Performance with One-Click Activation.
Gigabyte X870M Aorus Elite ICE WIFI X3D Turbo Mode’s unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE’s BIOS innovation- X3D Turbo Mode.
One-Click Acceleration :Enhance Gaming FPS Performance with a single click.
Infinite Memory Performance
Gigabyte X870M Aorus Elite ICE WIFI motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Steady Power
Gigabyte X870M Aorus Elite ICE WIFI Series with steady power keeps your AI operation smooth.
Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient
Specification:
| CPU | Supports AMD Ryzenâ„¢ 9000 Series / Ryzenâ„¢ 8000 Series / Ryzenâ„¢ 7000 Series Processors |
| CPU Socket | AMD Socket AM5 |
| Chipset | AMD X870 |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory Capacity | 256GB |
| Memory Architecture | Dual Channel |
| Memory Support | DDR5 4400–8200+ MT/s (OC) |
| Memory Features | Non-ECC Un-buffered DIMM, AMD EXPOâ„¢, Intel XMP |
| Graphics Support | AMD Radeonâ„¢ Graphics (CPU Dependent) |
| USB4 Display Outputs | 2 × USB4 Type-C (DisplayPort) |
| USB4 Maximum Resolution | 3840 × 2160 @ 240Hz |
| HDMI Port | 1 × HDMI 2.1 |
| HDMI Maximum Resolution | 4096 × 2160 @ 60Hz |
| Front HDMI Port | 1 × HDMI 1.4 |
| Front HDMI Maximum Resolution | 1920 × 1080 @ 30Hz |
| Audio Codec | Realtek® ALC1220 CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel HD Audio |
| S/PDIF Support | Optical S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN |
| Wi-Fi | Realtek® Wi-Fi 7 RTL8922AE |
| Bluetooth | Bluetooth 5.4 |
| Wireless Bands | 2.4GHz / 5GHz / 6GHz |
| PCIe x16 Slot (CPU) | 1 × PCIe 5.0 x16 (Ryzen 9000/7000), PCIe 4.0 x8/x4 (Ryzen 8000 Series) |
| PCIe x16 Slot (Chipset) | 1 × PCIe 4.0 x4 |
| M.2 Slots | 2 × M.2 Socket 3 |
| CPU M.2 Slot | 1 × PCIe 5.0 x4/x2 (Ryzen 9000/7000), PCIe 4.0 x4/x2 (Ryzen 8000) |
| Chipset M.2 Slot | 1 × PCIe 4.0 x4/x2 |
| SATA Ports | 2 × SATA 6Gb/s |
| RAID Support | NVMe RAID 0 / 1 / 5 / 10, SATA RAID 0 / 1 |
| Rear USB4 Ports | 2 × USB4 Type-C |
| Rear USB 3.2 Gen 2 | 2 × Type-A + 1 × Type-A (CPU) |
| Rear USB 3.2 Gen 1 | 4 × Type-A |
| Rear USB 2.0 | 4 × USB 2.0 |
| Internal USB Type-C Header | 1 × USB 3.2 Gen 2×2 |
| Internal USB 3.2 Gen 1 Header | 1 (Supports 2 Ports) |
| Internal USB 2.0 Headers | 2 (Supports 4 Ports) |
| Main Power Connector | 1 × 24-pin ATX |
| CPU Power Connector | 1 × 8-pin ATX 12V |
| CPU Fan Header | 1 |
| CPU Pump Header | 1 |
| System Fan Headers | 3 |
| System Pump Header | 1 |
| Addressable RGB Headers | 3 × Addressable RGB Gen2 |
| RGB Header | 1 |
| Front Panel Header | 1 |
| Front Audio Header | 1 |
| TPM Header | 1 |
| Internal HDMI Header | 1 |
| Power Button | 1 |
| Reset Button | 1 |
| Reset Jumper | 1 |
| Clear CMOS Jumper | 1 |
| Back Panel Ports | Clear CMOS Button, Q-Flash Plus Button, HDMI, 4 × USB 2.0, 4 × USB 3.2 Gen 1, 2 × USB 3.2 Gen 2 Type-A, 2 × USB4 Type-C, RJ-45, 2 × Antenna Connectors, 2 × Audio Jacks, Optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control |
| BIOS | 1 × 256 Mbit AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| Operating System | Windows 11 64-bit |
| Form Factor | Micro ATX (24.4 × 24.4 cm) |
