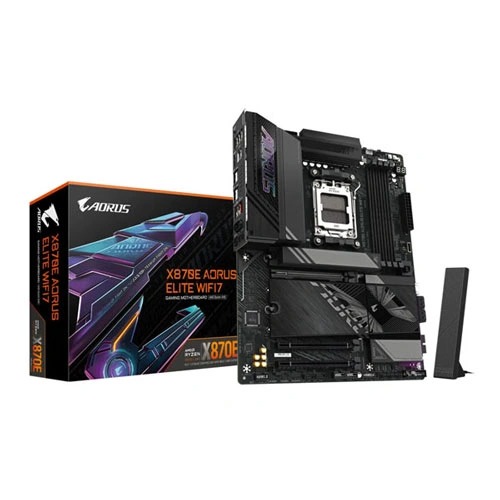

Gigabyte X870E Aorus Elite ATX Motherboard (AMD Socket AM5, DDR5, Wi-Fi 7)
Feature:
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L - Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.
Cooling Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
Specification:
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870E |
| Memory Speed | up to 8200 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x HDMI,2 x USB4 |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x HDMI port (Note) 2 x USB4 USB Type-C ports (DisplayPort (Note)) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
