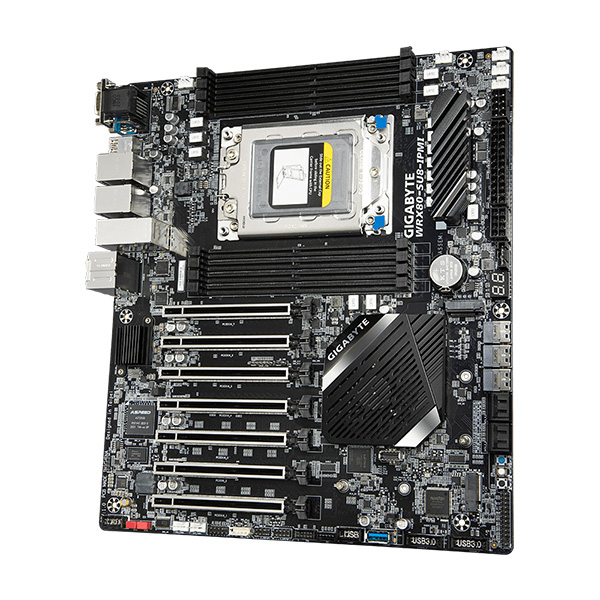

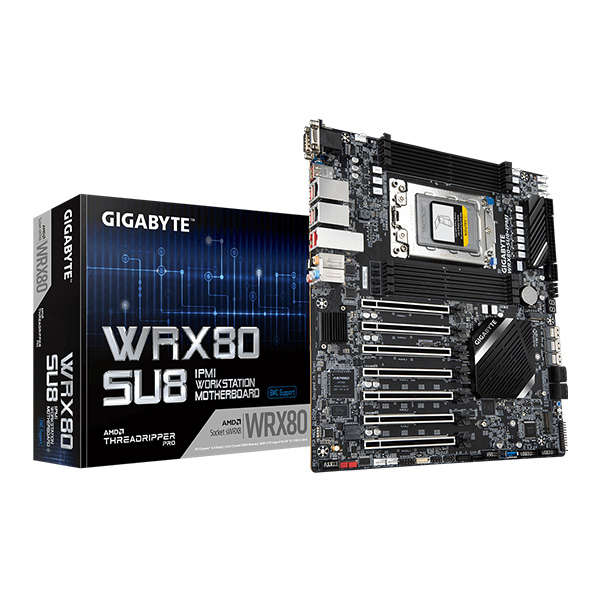

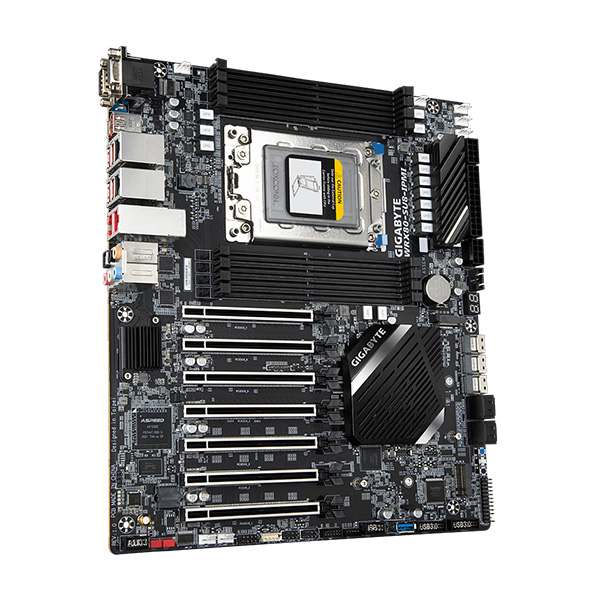

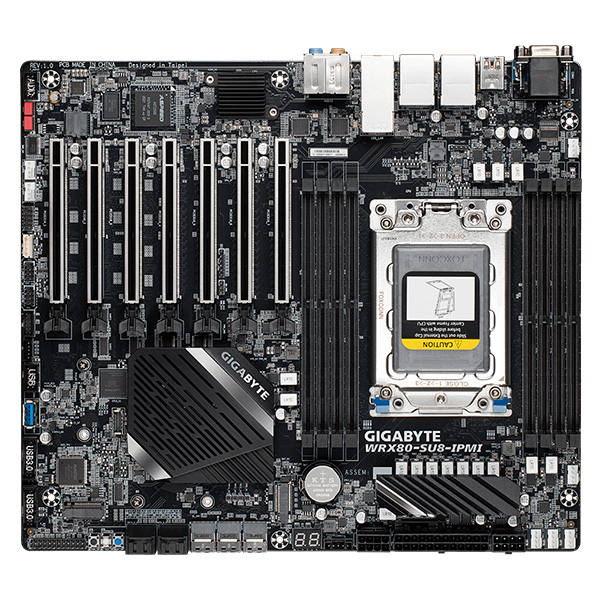

Gigabyte WRX80 SU8 IPMI (rev. 1.0) Motherboard

68,699 (Inclusive of GST)

Brand:

Out of stock

Email when back in stock

Gigabyte WRX80 SU8 IPMI (rev. 1.0) Motherboard :

AMD WRX80 Motherboard with sWRX8 4094 Socket, 8-Channel DDR4 RDIMM 8 x DIMMs, Aspeed® AST2500 BMC, Dual M.2, Dual Intel® Server 10G and 1G LAN, 7 x PCIe 4.0 x16 Slots for multi cards

Features :

  • AMD Ryzen™ Threadripper™ PRO 3000WX Series Processors, sWRX8 4094 Socket
  • 8-Channel DDR4 RDIMM/LRDIMM 8 x DIMMs
  • Aspeed® AST2500 BMC
  • Dual Intel® Server 10G LAN and GbE LAN
  • 7 PCIe 4.0 x16 Slots for Multi-GPU, supports for DirectX® 12
  • Multiple storage interface: 4 SATA3 Ports, 3 SlimSAS ports (NVMe and SATA are available)
  • Next-gen transfer speeds: Dual M.2 (NVMe and SATA mode) and 6 USB 3.2 Gen2 including 1 Type-C
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
  • 120dB SNR AMP-UP Audio with ALC1220

Overview :

PERFORMANCE

PCIe 4.0 Design

Gigabyte WRX80 SU8 IPMI equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe 4.0 performance on PCIe, M.2 and SlimSAS interface.

Low Signal Loss PCB

  • SlimSAS port PCIe 4.0 Ready (from WRX80 Chipset)
  • 2 x M.2 PCIe 4.0 Connectors (from CPU)
  • 7x PCIe 4.0 Slot (from CPU)
  • PCIe 4.0 Re-Driver (at the back)

7 PCIe 4.0 Slots to enrich your various card configuration

Gigabyte WRX80 SU8 IPMI Comes with leadership architecture of AMD Ryzen™ Threadripper™ PRO, max out the 128 PCIe 4.0 lanes from 3000WX series with 6 PCIe 4.0 x16 and 1 PCIe 4.0 x8 slot that makes Gigabyte WRX80 SU8 IPMI the various card configuration and fulfill your content creation, deep learning and virtual machine application.

Multiple storage interface:
4 SATA3 Ports + 3 SlimSAS Ports

Plentiful NVMe and SATA interface can fulfill your hot and cold data processing requirement at once.

  • 4 x SATA ports for cold data from WRX80 chipset
  • 3 x SlimSAS ports (PCIe 4.0 x4 or SATA3x4 mode) from WRX80 chipset

Dual-Mode M.2 Slot Design (PCIe 4.0 x4 or SATA mode)

Support both PCIe NVMe + SATA SSDs
Gigabyte WRX80 SU8 IPMI are built with dual M.2 Slots with a PCIe NVMe + SATA dual-mode design. It can offer user flexible storage configuration and adaptation to fit most users’ requests

Carefully Selected Components
GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.

CONNECTIVITY

Dual Intel® Server 10GbE and GbE LAN

The Intel® X550AT2 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T Ethernet Controller which is able to provide up to 10 GbE network connectivity as well as Intel SR-IOV feature. It is perfectly designed for media centers, workstations and virtual machine requirement.

The i210AT supports Windows server OS with fault tolerance, link aggregation, load balancing feature. The network interface is shared with IPMI management with NCSI. User can choose data transferring or remote management on GbE LAN by their requirement.

Native USB 3.2 Gen2

Connecting the Future – USB Type-C™
AMD’s native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

USB 3.2 Gen2 Type-C™ Front Panel Connector
The onboard USB Type-C™ header for USB 3.2 Gen2 makes access convenient when connecting a USB 3.2 Gen2 drive or charging your new mobile device.

GIGABYTE Remote Management

With ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface.

  • Key Features include:
  • IPMI 2.0 implementation
  • Full configuration via web interface
  • Hardware status monitor
  • Remote power control
  • Remote BIOS/firmware update
  • Remote KVM with image redirection
  • Event log and reporting
  • Easy and convenient user management

AUDIO

ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
ALC 1220 120dB SNR HD Audio

The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.

True High-Fidelity Music (Realtek ALC1220-VB)

Paired with Realtek’s latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.

Audiophile Grade Capacitors (Nichicon Fine Gold)

To ensure a studio-quality experience, Nichicon Fine Gold capacitors are used to provide power to the overall system.

ULTRA DURABLE

GIGABYTE Patented Double Locking Bracket

Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Specifications :

CPU

1. Ryzen™ Threadripper™ PRO 3000WX (up to 64C)
2. Single sWRX8 4094 socket; CPU TDP supports up to 280W

Chipset

1. AMD WRX80 Chipset

Memory

1. 8 x DDR4 DIMM slots supports
2. 8 channels memory architecture (1 DIMM per channel)
3. Support up to DDR4 3200/2933/2600 MHz
4. Support for UDIMM (ECC), RDIMM, 3DS RDIMM and LRDIMM memory modules
5. Support system memory capacity up to 1024GB

Audio

1. Realtek® ALC1220-VB codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

LAN

1. Dual Intel® X550 10GbE LAN
2. Dual Intel® i210AT GbE LAN (NCSI MLAN)

Expansion Slots

(Slot7) PCIe x16 (running at Gen4 x16)

(Slot6) PCIe x16 (running at Gen4 x16)
(Slot5) PCIe x16 (running at Gen4 x16)
(Slot4) PCIe x16 (running at Gen4 x16)
(Slot3) PCIe x16 (running at Gen4 x16)
(Slot2) PCIe x16 (running at Gen4 x8)
(Slot1) PCIe x16 (running at Gen4 x16)

Storage Interface

1. 4 x SATA 6Gb/s connectors (support software RAID 0; RAID1; RAID5; RAID10)
2. 2 x M.2 Connectors (Socket 3; M key; Form Factor 2242/2280 ; Supports PCIe gen4 x4 or SATA mode)
3. 2 x slimSAS (PCIe gen4 x4 or 4x SATAIII) + 1 x slimSAS (PCIe gen4 x4) connectors

USB

1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
2. 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3. 1 x USB Type-C™ header onboard, with USB3.2 Gen2 support
4. 2 x USB 3.2 Gen 1 header onboard
5. 1 x USB 3.2 Gen 1 vertical connector onboard
6. 1 x USB 2.0 header on board

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V CPU power connector
3. 1 x 8-pin ATX 12V GPU power connector
4. 1 x CPU fan header
5. 6 x system fan headers
6. 4 x SATA 6Gb/s connectors
7. 2 x M.2 Socket 3 connectors
8. 3 x slimSAS connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
12. 1 x USB 3.2 Gen 1 vertical connector
13. 2 x USB 3.2 Gen 1 header
14. 1 x USB 2.0 header
15. 1 x Thunderbolt™ add-in card connector
16. 1 x Trusted Platform Module(TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
17. 1 x serial port header
18. 1 x chassis intrusion header
19. 1 x Clear CMOS jumper
20. 2 x SATA SGPIO headers
21. 1 x BMC_VGA jumper
22. 1 x BMC_WATCHD jumper
23. 1 x SMB_IPMB connector
24. 1 x PMBUS header
25. 1 x Speaker

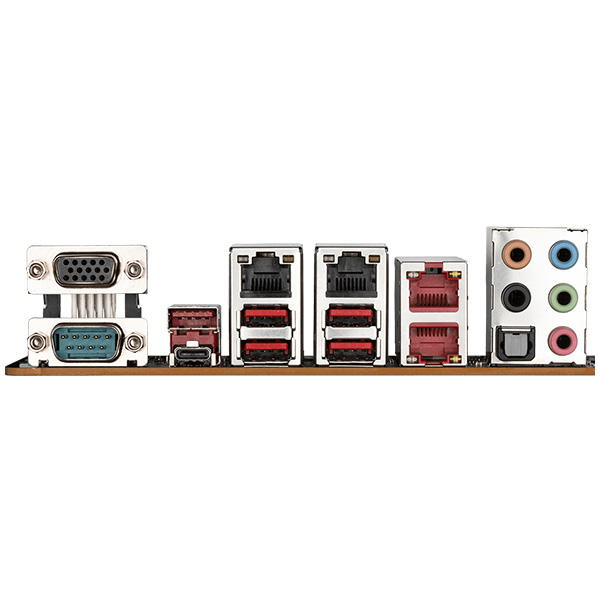

Back Panel Connectors

1. 1 x D-sub port
2. 1 x serial port
3. 1 x USB 3.2 Gen 2 Type-C port (red)
4. 5 x USB 3.2 Gen 2 Type-A port (red)
5. 2 x GbE RJ-45 ports
6. 2 x 10GbE RJ-45 ports
7. 1 x optical S/PDIF Out connector
8. 5 x audio jacks

I/O Controller

1. ASPEED® AST2500 BMC chip

H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

Operating Properties

1. Operating temperature: 10°C to 40°C
2. Operating humidity: 8 – 80%
3. Non-operating temperature: -40°C to 70°C
4. Non-operating humidity: 5% – 95%

Form Factor

1. CEB Form Factor; 30.5cm x 26.7cm

Support OS

1. Windows 10
2. Linux

Additional information

Weight10 kg
Brand

Gigabyte

Socket

sWRX8

Chipset

WRX80

Form Factor

E-ATX

Memory Slot

8 Slot

Platfrom

AMD

Available Models

WRX80-SU8-IPMI

Memory Slot Type

DDR4
