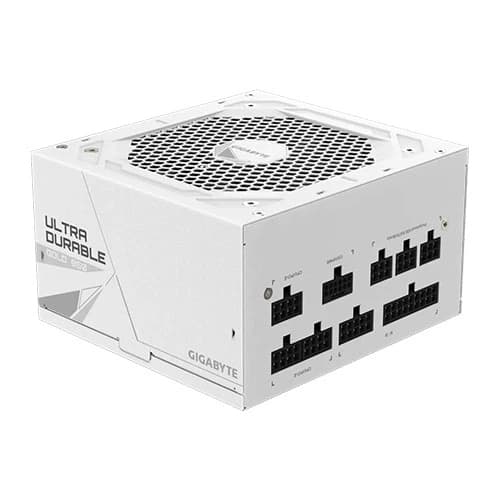

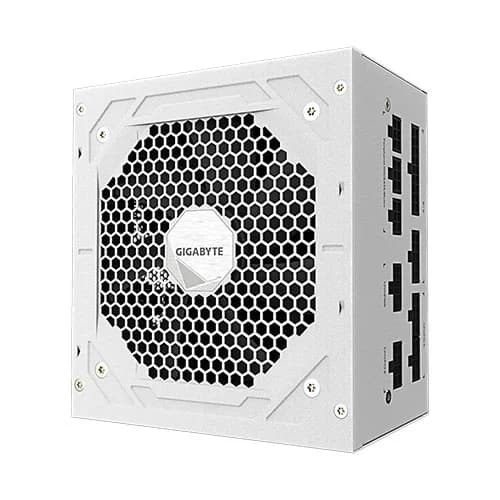

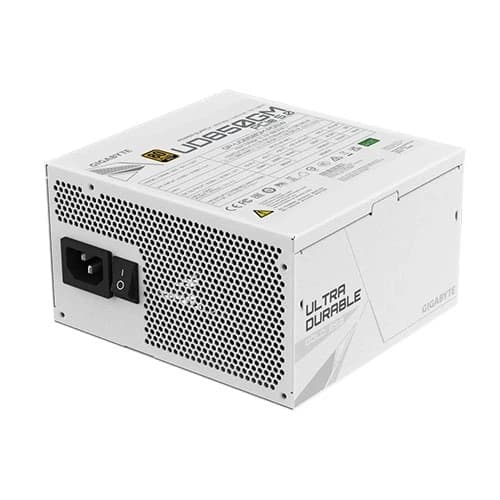

Gigabyte UD850GM PG5W 850 Watt 80 Plus Gold ATX 3.0 Fully Modular Power Supply :
Overview :
The Gigabyte UD850GM PG5W is a high-performance, ATX 3.0-compliant white power supply crafted for modern gaming rigs and workstations. Offering 850 W of continuous power, native support for PCIe 5.0 GPUs via a 16-pin connector, and 80 Plus Gold efficiency, Gigabyte UD850GM PG5W boasts durable internals, compact size, and modular cabling designed to ensure clean builds and consistent stability.
Key Features :
Intel ATX 3.0 + PCIe 5.0 Ready – Supports 200% total excursion and 300% GPU excursion limits; includes native 16-pin cable capable of delivering up to 600 W to GPUs.80 Plus Gold Efficiency – Delivers ~90% efficiency under typical loads, reducing heat and power loss.
Ultra Durable Construction – Equipped with high-quality Japanese capacitors, enhanced heatsinks, and a smart hydraulic-bearing fan.
Smart, Quiet Cooling – 120 mm HYB fan stays off under loads <20%, activating only when needed.
Fully Modular Flat White Cables – Reduces clutter, improves airflow, and suits aesthetic builds.
Comprehensive Protections – OVP, OPP, SCP, UVP, OCP, OTP standards met.
Compact Build – Measures 140 × 150 × 86 mm, fitting most ATX cases with ease.
5-Year Warranty – Backed by region-adjusted coverage.
Specification :
| Model | GP‑UD850GM PG5W |
| Form Factor | ATX 12V v3.0 (ATX 3.0 compatible) |
| Wattage | 850 W |
| Efficiency Rating | 80 Plus Gold (~90% @ 50% load) |
| Input Voltage/Frequency | 100–240 VAC, 50–60 Hz |
| Power Factor Correction | Active PFC (>0.9) |

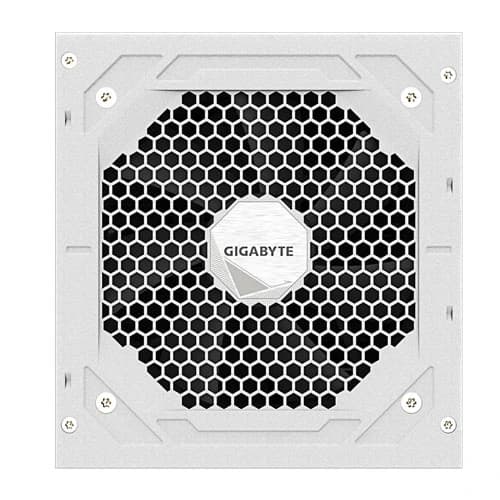

| Cooling Fan | 120 mm Hydraulic Bearing, semi-passive <20% load |
| Rail Design | Single +12 V rail (70.8 A) |
| Capacitors | 100% Japanese electrolytics |
| Protections | OVP, UVP, OCP, SCP, OPP, OTP |
| MTBF |
|
| Hold‑Up Time | >16 ms |
| Power‑Good Signal | 100–150 ms |
| Dimensions | 140 × 150 × 86 mm |

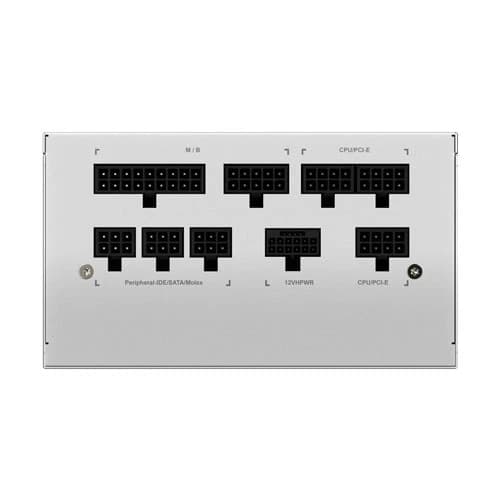

| Cabling | Fully modular, flat white cables:<br>• ATX 20+4 pin ×1<br>• EPS 4+4 pin ×2<br>• PCIe 16-pin ×1<br>• PCIe 6+2-pin ×4<br>• SATA ×8<br>• Molex ×3 + Floppy ×1 |
| Warranty | 5 years (region-dependent) |
