Gigabyte UD750GM PG5 750 Watt 80 Plus Gold ATX 3.0 Fully Modular Power Supply :
Overview :
The Gigabyte UD750GM PG5 Gold ATX 3.0 Power Supply is built to meet the latest power standards and the demands of modern graphics cards and CPUs. Gigabyte UD750GM PG5 Gold ATX 3.0 Fully Modular Power Supply Compliant with Intel ATX 3.0 and PCIe Gen 5.0, Gigabyte UD750GM PG5 Gold ATX 3.0 Fully Modular Power Supply capable of handling sudden power spikes and delivering clean, stable power to next-gen components. With fully modular cables, 80 Plus Gold certification, and 100% Japanese capacitors, this unit ensures efficient, quiet, and reliable performance. Gigabyte UD750GM PG5 Gold ATX 3.0 Fully Modular Power Supply Compact and future-ready, the UD750GM PG5 is ideal for high-performance gaming rigs and creator workstations.
Features :
750W Total Power Output – Built for high-performance GPUs and processors
80 Plus Gold Certified – Delivers up to 90% efficiency under typical loads
Fully Modular Cables – For optimized airflow and easy installation
Intel ATX 3.0 Compliant – Ready for latest generation hardware requirements
PCIe Gen 5.0 Ready – Comes with native 16-pin 12VHPWR connector

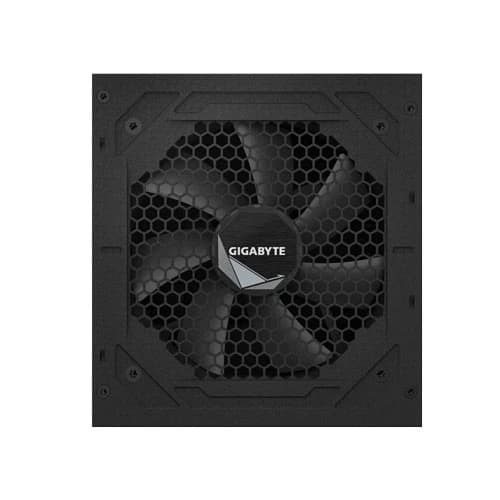

Silent 120mm Hydraulic Bearing Fan – Smart RPM control for quiet operation
100% Japanese Capacitors – Stable, long-lasting power delivery
Comprehensive Safety Protections – OVP, OPP, UVP, SCP, OTP, OCP
Specification Table :
| Model Name | Gigabyte UD750GM PG5 |
| Wattage | 750 Watts |
| Form Factor | ATX |
| ATX Standard | ATX 3.0 |
| Efficiency Rating | 80 Plus Gold (Up to 90% efficiency) |
| PCIe Gen 5 Support | Yes – Includes 1× 16-pin 12VHPWR connector |
| Modularity | Fully Modular |
| Input Voltage | 100 – 240V |
| Input Frequency | 50Hz – 60Hz |
| Fan Type | 120mm Hydraulic Bearing Fan |
| Cooling Technology | Smart Temperature-Controlled Fan |
| Main Capacitors | 100% Japanese Capacitors |
| PFC Type | Active PFC |
| Protections | OVP, OPP, UVP, SCP, OTP, OCP |
| MTBF | >100,000 hours |

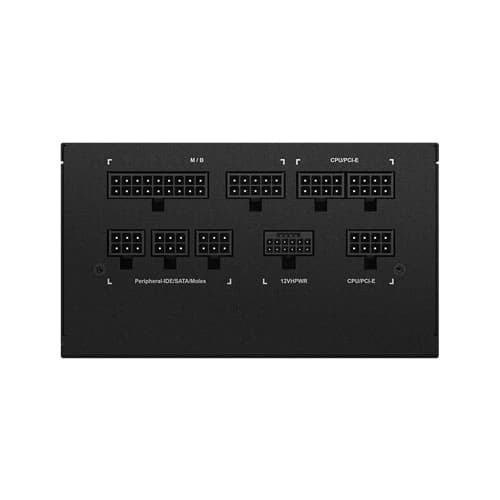

| Connectors | 1× 24-pin ATX, 2× 8-pin EPS, 4× 6+2 PCIe, 8× SATA, 3× Molex, 1× 16-pin PCIe 5 |
| Dimensions (L×W×H) | 140 x 150 x 86 mm |
| Operating Temperature | 0°C – 50°C |
| Warranty | 5 Years Manufacturer Warranty |
