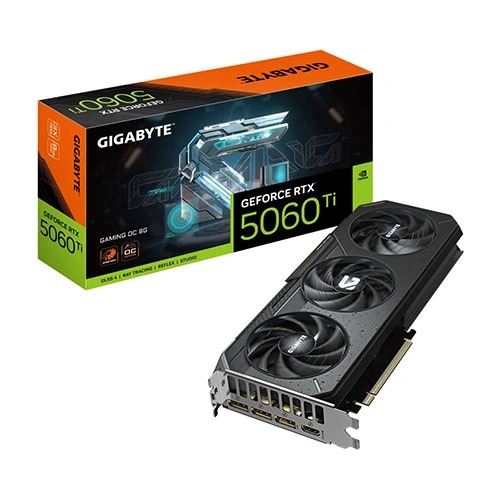

Gigabyte RTX 5060 Ti Gaming OC 8GB GDDR7 Triple Fan Graphics Card
Feature:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTXâ„¢ 5060 Ti
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- RGB lighting
- Dual BIOS (Performance / Silent)
- Reinforced structure
WINDFORCE COOLING SYSTEM
Gigabyte RTX 5060 Ti Gaming OC 8GB has The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN
The Gigabyte RTX 5060 Ti Gaming OC 8GB draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.
UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.
RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.
REINFORCED STRUCTURE
The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.
Specification:
| Model | GV-N506TGAMING-OC-8GD |
| Chipset | NVIDIA GEFORCE |
| GPU | RTX 5060 Ti |
| Engine Clock | 2647 MHz (Reference card :2572 MHz) |
| PCI EXPRESS | 5.0 |
| MEMORY CLOCK | 28 Gbps |
| MEMORY SIZE | 8 GB |
| MEMORY INTERFACE | 128-BIT |
| MEMORY TYPE | GDDR7 |
| OpenGL | 4.6 |
| PORTS | HDMI,DisplayPort |
| DirectX | 12 API |
| RESOLUTION | 7680 x 4320 |
| COOLER | Triple Fan |
| Max Display Support | 4 |
| Recommended PSU | 650W |
| GPU CORE (CUDA CORE) | 4608 |
| POWER CONNECTORS | 1 x 8-pin |
| WARRANTY | 3 Years |
| NOTE** | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only. |
