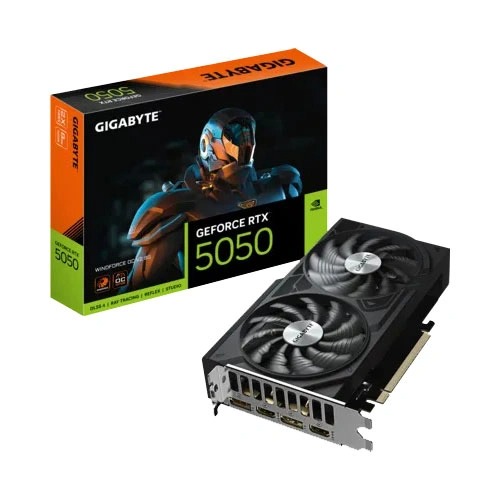

Gigabyte RTX 5050 Windforce OC V2 8GB GDDR6 Dual Fan Graphics Card
Feature:
- Powered by the NVIDIA Blackwell architecture and DLSS 4.5
- Powered by GeForce RTXÂ 5050
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Reinforced structure
WINDFORCE COOLING SYSTEM
Gigabyte RTX 5050 Windforce OC V2 8GB has The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
Gigabyte RTX 5050 Windforce OC V2 8GB has The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipes maximizes the direct contact area with the GPU. The heat pipes also cover the VRAM via a metal plate to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
REINFORCED STRUCTURE
The reinforced backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.
Specification:
| Model | GV-N5050WF2OCV2-8GD |
| Chipset | NVIDIA GEFORCE |
| GPU | RTX 5050 |
| Engine Clock | 2587 MHz (Reference: 2572 MHz) |
| PCI EXPRESS | 5.0 |
| MEMORY CLOCK | 20 Gbps |
| MEMORY SIZE | 8 GB |
| MEMORY INTERFACE | 128-BIT |
| MEMORY TYPE | GDDR6 |
| OpenGL | 4.6 |
| PORTS | HDMI,DisplayPort |
| DirectX | 12 API |
| RESOLUTION | 7680 x 4320 |
| COOLER | Dual Fan |
| Max Display Support | 4 |
| Recommended PSU | 550W |
| GPU CORE (CUDA CORE) | 2560 |
| POWER CONNECTORS | 1 x 8-pin |
| WARRANTY | 3 Years |
| NOTE** | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only. |
