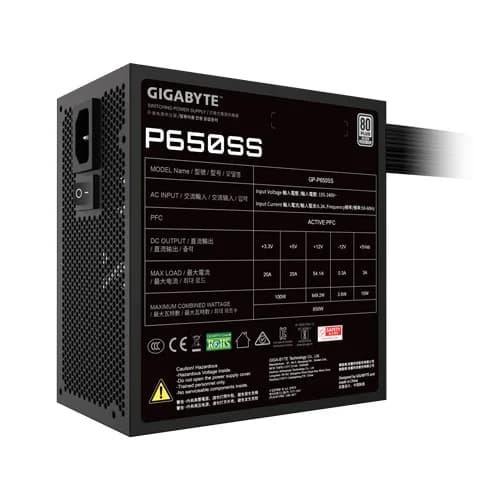

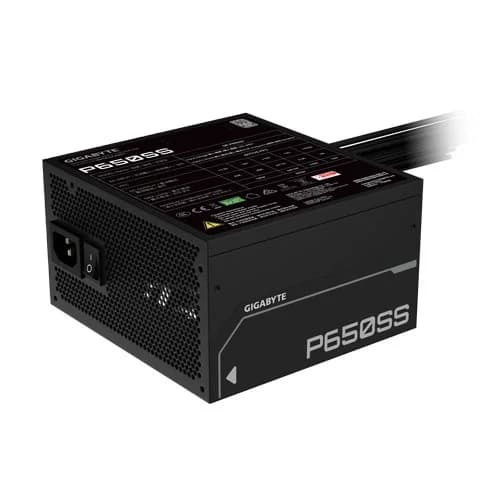

Gigabyte P650SS 650 Watt 80 Plus Silver ATX 3.0 Power Supply
Overview :
The Gigabyte P650SS 650W 80 Plus Silver ATX 3.0 Power Supply is engineered to power the latest gaming PCs and professional builds with efficiency and durability. GIGABYTE P650SS 650 Watt 80 Plus Silver ATX 3.0 Power Supply Compliant with Intel ATX 3.0 standards, it offers robust 650W output, native PCIe Gen 5 support (12VHPWR), fully modular cabling, and premium-grade Japanese capacitors. GIGABYTE P650SS 650 Watt 80 Plus Silver ATX 3.0 Power Supply delivers quiet performance and ensures your system in GIGABYTE P650SS 650 Watt 80 Plus Silver ATX 3.0 Power Supply stays protected under demanding loads with advanced protection features.
Key Features :
- Intel ATX 3.0 Compliant: Future-ready with improved power excursion support.
- 80 PLUS Silver Efficiency: Delivers up to 88% power efficiency for reduced heat and lower energy bills.
- 650W Continuous Output: Ideal for modern CPUs and GPUs including RTX 40 series.
- Native PCIe Gen 5 Ready: Comes with a 12VHPWR connector for next-gen GPUs.
- Fully Modular Design: Simplifies installation and airflow optimization.
- 100% Japanese Capacitors: Delivers stable, long-lasting performance.

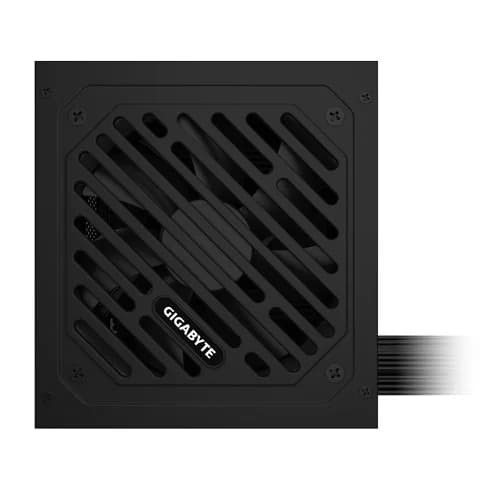

- Silent 120mm Hydraulic Fan: Smart fan control ensures low noise under load.
- Multiple Protection Features: OVP, UVP, OPP, OTP, and SCP for system safety.
- 5-Year Warranty: Backed by Gigabyte for long-term peace of mind.
Specification Table :
| Model | GIGABYTE P650SS |
| Form Factor | ATX 3.0 |
| Total Power Output | 650 Watts |
| Efficiency Certification | 80 PLUS Silver (up to 88% efficiency) |
| Modularity | Fully Modular |
| Input Voltage | 100 – 240V AC |
| Fan Size & Type | 120mm Hydraulic Bearing Fan |
| PCIe Gen 5 Support | Yes, native 12VHPWR connector |
| Connectors | 1× 24-pin ATX2× 4+4 CPU2× 6+2 PCIe1× 12VHPWR6× SATA3× Molex |
| Capacitor Type | 100% Japanese capacitors |
| Protections | OVP, UVP, OPP, OTP, SCP |
| MTBF | >100,000 hours |
| Certifications | CE, FCC, RoHS |
| Color | Black |
| Dimensions (L x W x H) | Approx. 140mm x 150mm x 86mm |
| Weight | Approx. 1.5 kg |
| Warranty | 5 Years |
| Application | Gaming PC, Workstation, High-Performance Desktop |
