Gigabyte Nvidia GeForce RTX 5070 Ti Eagle OC SFF 16GB GDDR7 Triple Fan Graphics Card :
Overview :
The Gigabyte Nvidia GeForce RTX 5070 Ti Eagle OC SFF 16GB GDDR7 Triple Fan Graphics Card is engineered for high-performance gaming and content creation in compact builds. Leveraging NVIDIA’s Blackwell architecture and DLSS 4, Gigabyte Nvidia GeForce RTX 5070 Ti Eagle OC SFF 16GB GDDR7 Triple Fan Graphics Card delivers advanced AI-enhanced graphics, real-time ray tracing, and efficient cooling. The WINDFORCE cooling system ensures optimal thermal performance, Gigabyte Nvidia GeForce RTX 5070 Ti Eagle OC SFF 16GB GDDR7 Triple Fan Graphics Card features like dual BIOS and RGB lighting provide customization and versatility.
Key Features :
NVIDIA Blackwell Architecture: Provides next-generation performance and efficiency.
16GB GDDR7 Memory: Ensures smooth multitasking and rendering with high-speed memory.

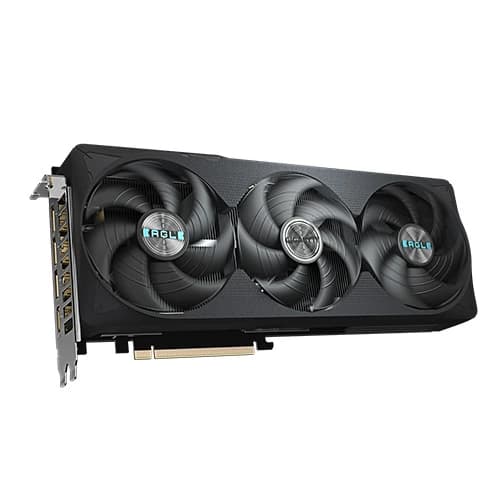

WINDFORCE Cooling System: Features triple Hawk fans, server-grade thermal conductive gel, and composite copper heat pipes for superior thermal management.
Dual BIOS (Performance/Silent): Allows users to switch between high-performance and quieter operation modes.
RGB Lighting: Customizable lighting to match your system’s aesthetics.
NVIDIA SFF-Ready: Designed to fit small form factor builds without compromising performance.
Reinforced Structure: Enhances structural integrity and prevents PCB flex.
Specifications :
| GPU Model | NVIDIA GeForce RTX 5070 Ti |
| CUDA Cores | 8,960 |
| Base Clock | 2,295 MHz |
| Boost Clock | 2,542 MHz |
| Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Memory Speed | 28 Gbps |
| Memory Bandwidth | 896 GB/s |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| Bus Interface | PCI Express 5.0 x16 |

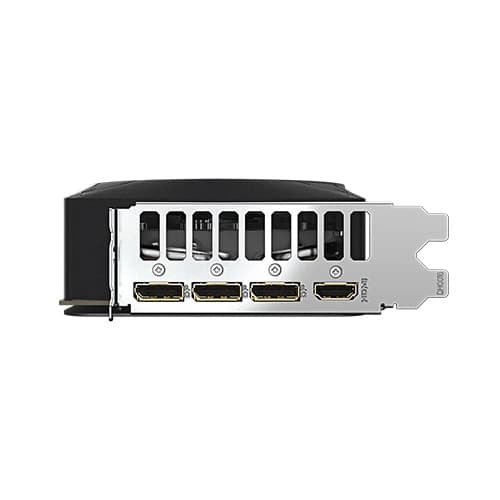

| Display Outputs | 3 x DisplayPort 2.1a, 1 x HDMI 2.1b |
| Maximum Digital Resolution | 7680 x 4320 |
| Multi-Display Support | Up to 4 displays |
| Power Consumption (TDP) | 300W |
| Recommended PSU | 750W |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Cooling System | Triple Fan (WINDFORCE) with Hawk Fans and Composite Heat Pipes |
| Dimensions (L x W x H) | 304 x 126 x 50 mm |
| Slot Size | Dual-slot |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |
| Vulkan API | Vulkan 1.4 |
| Operating System Support | Windows 11 / 10, Linux |
| Additional Features | NVIDIA DLSS 4, NVIDIA Reflex, NVIDIA Broadcast, NVIDIA Studio Drivers |
| Accessories Included | User Manual, 1 x 12V-2×6 to 3 x PCIe 8-pin Adapter, VGA Holder |
| Warranty | 3 Years Manufacturer Warranty |
