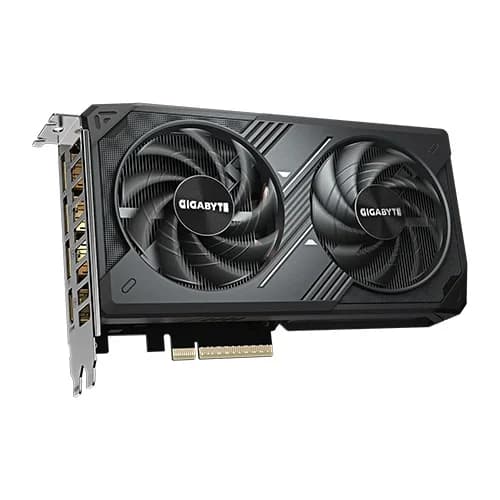

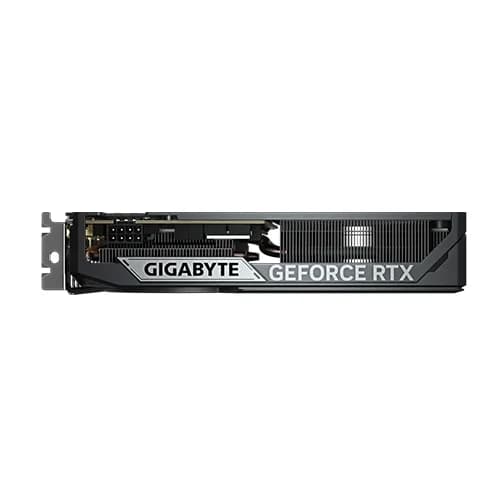

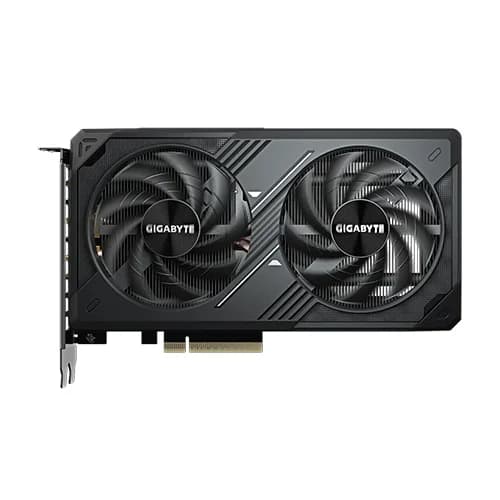

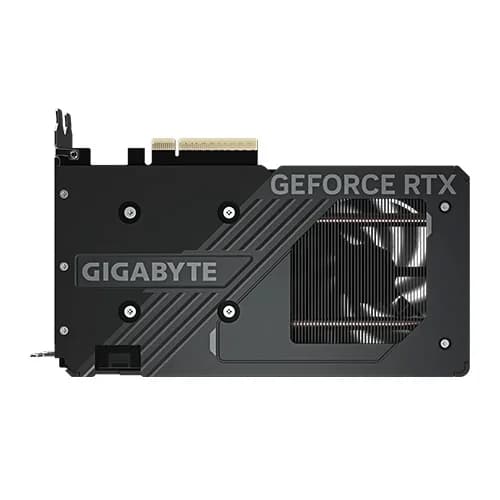

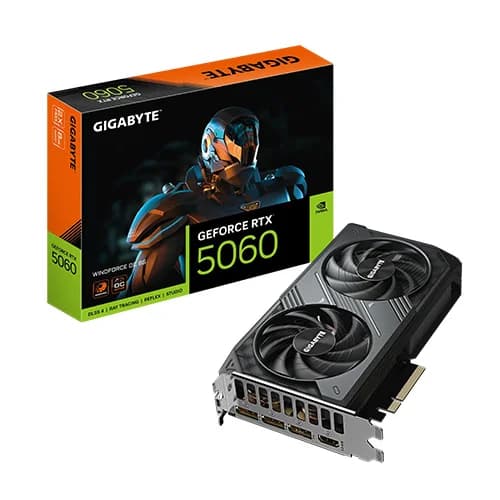

Gigabyte Nvidia GeForce RTX 5060 Windforce OC 8GB GDDR7 Dual Fan Graphics Card :
Overview :
The Gigabyte Nvidia GeForce RTX 5060 Windforce OC 8GB GDDR7 Dual Fan Graphics Card delivers powerful rendering performance with advanced cooling, tailored for gamers and creators. Built on NVIDIA’s Blackwell architecture, Gigabyte Nvidia GeForce RTX 5060 Windforce OC 8GB GDDR7 Dual Fan Graphics Card features factory overclocking, 8GB high-speed GDDR7 memory, and GIGABYTE’s WindForce cooling with dual fans. With support for DLSS 4, ray tracing, and PCIe 5.0, Gigabyte Nvidia GeForce RTX 5060 Windforce OC 8GB GDDR7 Dual Fan Graphics Card provides excellent 1080p and 1440p performance in a compact dual-slot design.
Key Features :
Blackwell GPU & 3,840 CUDA cores for efficient graphics processing
8GB GDDR7 memory (128-bit, 28 Gbps, 448 GB/s) ensures smooth multitasking
WindForce dual-fan cooling with alternate-spinning fans and composite heat pipe for effective thermal control
Factory overclocked for enhanced performance out of the box
DLSS 4 & 4th-gen ray tracing cores deliver lifelike visuals and performance boost
PCIe 5.0 interface and compact design fit most modern PC cases
Specifications Table :
Model | GIGABYTE RTX 5060 WindForce OC |
GPU Architecture | NVIDIA Blackwell |
CUDA Cores | 3,840 |
Video Memory | 8 GB GDDR7 |
Memory Interface | 128‑bit |
Memory Speed | 28 Gbps |
Memory Bandwidth | 448 GB/s |
Boost Clock (OC Mode) | Approx. 2,550 MHz |
Bus Standard | PCIe 5.0 |
Cooling System | WindForce dual fans, composite heat pipe |
Card Dimensions | ~225 × 120 × 42 mm; dual-slot |
Power Connector | 1 × 8‑pin |
TGP | ~145 W |

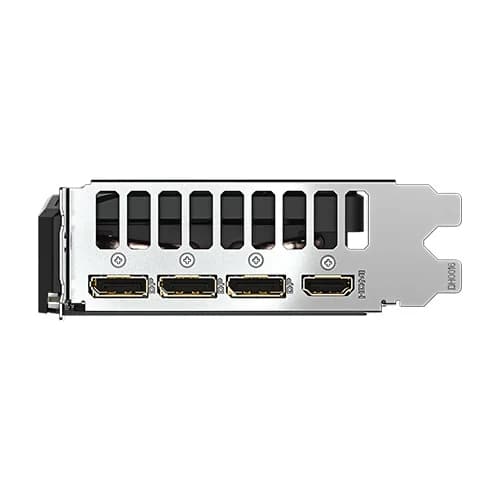

Display Outputs | 3 × DisplayPort 2.1, 1 × HDMI 2.1 |
Recommended PSU | 550 W |
Warranty | 3 Years |
