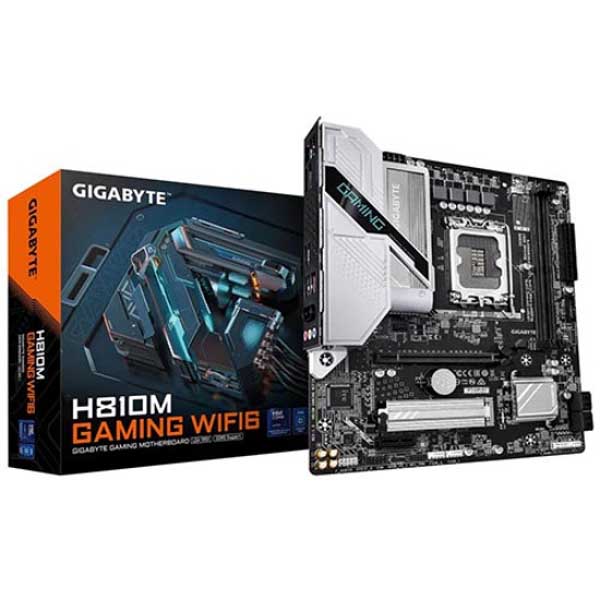

Gigabyte H810M GAMING WIFI M-ATX Motherboard (Intel Socket LGA1851, DDR5, WiFi 6E)
Feature:
- Supports Intel® Core™ Ultra processors (Series 2)
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- M.2 EZ-Latch Plus: Screwless installation for M.2 SSDs
- Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
- Extended Connectivity: HDMI, DisplayPort
Steady Power
Better Play GAMING Series, steady power keeps your gaming smooth.
Comprehensive Thermal
Gigabyte H810M GAMING WIFI motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
Future Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Specification:
| CPU | Supports Intel® Core™ Ultra Processors |
| CPU Socket | LGA1851 |
| Chipset | Intel® H810 Express Chipset |
| Memory Type | DDR5 |
| Memory Slots | 2 × DDR5 DIMM |
| Maximum Memory Capacity | 128GB |
| Memory Architecture | Dual Channel |
| Memory Support | DDR5 5600 / 6400 MT/s |
| ECC Memory Support | ECC Un-buffered DIMM (Non-ECC Mode) |
| XMP Support | Yes |
| Graphics Support | Intel® HD Graphics (CPU Dependent) |
| HDMI Port | 1 × HDMI 2.1 |
| HDMI Maximum Resolution | 4096 × 2160 @ 60Hz |
| DisplayPort | 1 × DisplayPort 2.1 |
| DisplayPort Maximum Resolution | 3840 × 2160 @ 60Hz |
| Audio Codec | Realtek® Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel HD Audio |
| S/PDIF Support | Yes |
| LAN | Realtek® 2.5GbE LAN (2.5Gbps / 1Gbps / 100Mbps) |
| Wi-Fi | Realtek® Wi-Fi 6 RTL8851BE |
| Bluetooth | Bluetooth 5.3 |
| Wireless Bands | 2.4GHz / 5GHz |
| PCIe x16 Slot | 1 × PCIe 4.0 x16 |
| PCIe x1 Slot | 1 × PCIe 3.0 x1 |
| M.2 Slots | 1 × M.2 PCIe 4.0 x4/x2 (2280) |
| SATA Ports | 4 × SATA 6Gb/s |
| Internal USB Type-C Header | 1 × USB 3.2 Gen 1 |
| Rear USB 3.2 Gen 1 | 1 × USB 3.2 Gen 1 |
| Internal USB 3.2 Gen 1 Header | 1 (Supports 2 Ports) |
| Rear USB 2.0 | 5 × USB 2.0 |
| Internal USB 2.0 Headers | 2 (Supports 4 Ports) |
| Main Power Connector | 1 × 24-pin ATX |
| CPU Power Connector | 1 × 8-pin ATX 12V |
| CPU Fan Header | 1 |
| System Fan Headers | 2 |
| Addressable RGB Headers | 2 × Addressable RGB Gen2 |
| Front Panel Header | 1 |
| Front Audio Header | 1 |
| S/PDIF Out Header | 1 |
| TPM Header | 1 |
| Serial Port Header | 1 |
| Clear CMOS Jumper | 1 |
| Back Panel Ports | 1 × PS/2, 1 × HDMI, 1 × DisplayPort, 1 × USB 3.2 Gen 1, 5 × USB 2.0, 1 × RJ-45, 3 × Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control |
| BIOS | 1 × 256 Mbit AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN Bandwidth Management Software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 × 21.5 cm) |
| Warranty | 3 Years |
