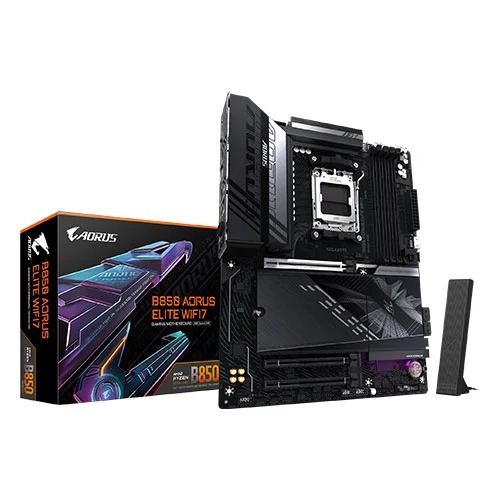

Gigabyte B850 Aorus Elite WIFI ATX Motherboard (AMD Socket AM5, DDR5, WiFi 7)
Feature:
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI,Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
X3D Turbo Mode
Unleash New Era Gaming Performance with One-Click Activation.
X3D Turbo Mode’s unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE’s BIOS innovation- X3D Turbo Mode.
One-Click Acceleration :Enhance Gaming FPS Performance with a single click.
Infinite Memory Performance
Gigabyte B850 Aorus Elite WIFI motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Steady Power
Gigabyte B850 Aorus Elite WIFI Series with steady power keeps your AI operation smooth.
Specification:
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B850 |
| Memory Speed | up to 8200 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE\’s website for more information.) |
| Graphics Port | 1 x DisplayPort,1 x Front HDMI |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x DisplayPort 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
