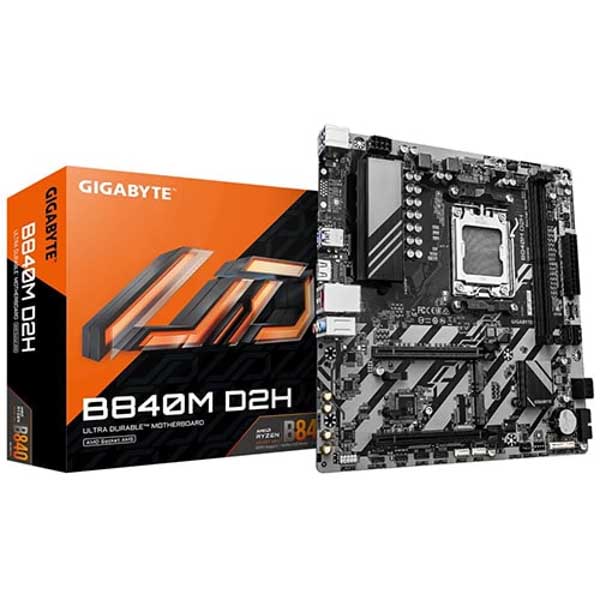

Gigabyte B840M D2H M-ATX Motherboard (AMD Socket AM5, DDR5)
Feature:
- X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Processors
- Digital 5+2+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with AMD EXPOâ„¢ Memory Module Support
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 4.0 x4
- Fast Networking : 2.5GbE LAN
X3D Turbo Mode
Unleash New Era Gaming Performance with One-Click Activation.
Durable Performance
Gigabyte B840M D2H Ultra Durableâ„¢ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Digital VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Infinite Memory Performance
Gigabyte B840M D2H motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Specification:
| Model | GIGABYTE B840M Eagle WiFi M-ATX Motherboard |
| CPU Support | AMD Socket AM5, supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B840 |
| Form Factor | Micro ATX (24.4 × 24.4 cm) |
| Memory Support | 2 × DDR5 DIMM, up to 128GB, DDR5 7600+ MT/s (OC), Dual Channel, AMD EXPO™ & Intel XMP Support |
| Graphics Output | 1 × HDMI 2.1 (up to 4096 × 2160 @ 60Hz), HDR, HDCP 2.3 |
| Audio | Realtek® High Definition Audio, 2/4/5.1/7.1-Channel |
| LAN | Realtek® 2.5GbE LAN |
| Expansion Slots | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x4 |
| Storage | 2 × M.2 (PCIe 4.0 x4 + PCIe 3.0 x2), 4 × SATA 6Gb/s, RAID 0/1/5/10 (NVMe), RAID 0/1/10 (SATA) |
| USB (Rear) | 2 × USB 3.2 Gen1, 4 × USB 2.0 |
| USB (Internal) | 2 × USB 3.2 Gen1, 4 × USB 2.0 |
| Internal Connectors | 24-pin ATX, 8-pin CPU Power, CPU Fan, CPU Pump, System Fan, 2 × ARGB Gen2, 1 × RGB, 4 × SATA, 2 × M.2, Front Panel, Front Audio, USB 3.2 Gen1 Header, 2 × USB 2.0 Headers, TPM Header, Reset Jumper, Clear CMOS Jumper |
| Rear I/O Ports | PS/2 Combo Port, 2 × USB 3.2 Gen1, 4 × USB 2.0, HDMI, Q-Flash Plus Button, RJ-45 LAN, 3 × Audio Jacks |
| BIOS | 256 Mbit AMI UEFI BIOS |
| Hardware Monitoring | Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Smart Fan Control |
| Special Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Software | Norton® Internet Security (OEM), LAN Bandwidth Management Software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| I/O Controller | iTE® I/O Controller Chip |
| Warranty | 3 Years |
