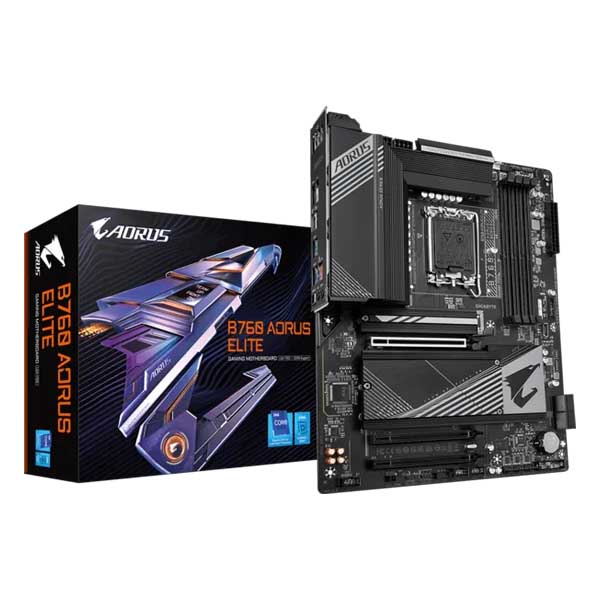

GIGABYTE B760 Aorus Elite ATX Motherboard (Intel Socket LGA 1700, DDR5, Wi-Fi 6E)
Feature:
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：Rear and Front USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE B760 Aorus Elite motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
OUTSTANDING THERMAL DESIGN
GIGABYTE B760 Aorus Elite unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE B760 Aorus Elite Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage connectivity.
PERSONALIZATION
GIGABYTE B760 Aorus Elite motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durableâ„¢ design provides product durability and high-quality manufacturing process. GIGABYTE B760 Aorus Elite motherboards use the best components and reinforce every slots to make each of them solid and durable.
Specification:
| CPU | Supports 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold & Celeron® Processors |
| CPU Socket | LGA1700 |
| Chipset | Intel® B760 Express Chipset |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory Capacity | 256GB |
| Memory Architecture | Dual Channel |
| Memory Support | DDR5 4000–4800 MT/s (Native), DDR5 5200–7800 MT/s (O.C.) |
| ECC Memory Support | ECC Un-buffered DIMM (Non-ECC Mode) |
| XMP Support | Yes |
| Graphics Support | Intel® HD Graphics (CPU Dependent) |
| HDMI Port | 1 × HDMI 2.1 |
| HDMI Maximum Resolution | 4096 × 2160 @ 60Hz |
| DisplayPort | 1 × DisplayPort 1.2 |
| DisplayPort Maximum Resolution | 4096 × 2304 @ 60Hz |
| Audio Codec | Realtek® Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel HD Audio |
| S/PDIF Support | Yes |
| LAN | Realtek® 2.5GbE LAN (2.5Gbps / 1Gbps / 100Mbps) |
| PCIe x16 Slot | 1 × PCIe 4.0 x16 |
| PCIe x1 Slots | 2 × PCIe 3.0 x1 |
| M.2 Slots | 3 × M.2 Socket 3 |
| M.2_1 | PCIe 4.0 x4/x2 (22110/2280, CPU) |
| M.2_2 | PCIe 4.0 x4/x2 (22110/2280, Chipset) |
| M.2_3 | PCIe 4.0 x4/x2 (22110/2280, Chipset) |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (SATA) |
| Rear USB Type-C | 1 × USB 3.2 Gen 2 Type-C |
| Rear USB 3.2 Gen 2 Type-A | 1 × USB 3.2 Gen 2 Type-A |
| Rear USB 3.2 Gen 1 | 4 × USB 3.2 Gen 1 |
| Rear USB 2.0 | 4 × USB 2.0 |
| Internal USB Type-C Header | 1 × USB 3.2 Gen 2 |
| Internal USB 3.2 Gen 1 Header | 1 (Supports 2 Ports) |
| Internal USB 2.0 Headers | 2 (Supports 4 Ports) |
| Main Power Connector | 1 × 24-pin ATX |
| CPU Power Connectors | 1 × 8-pin ATX 12V, 1 × 4-pin ATX 12V |
| CPU Fan Header | 1 |
| CPU Pump Header | 1 |
| System Fan Headers | 3 |
| System Fan/Pump Header | 1 |
| Addressable RGB Headers | 2 |
| RGB Headers | 2 |
| Front Panel Header | 1 |
| Front Audio Header | 1 |
| TPM Header | 1 |
| Reset Button | 1 |
| Q-Flash Plus Button | 1 |
| Reset Jumper | 1 |
| Clear CMOS Jumper | 1 |
| Back Panel Ports | 1 × USB Type-C (USB 3.2 Gen 2), 1 × USB 3.2 Gen 2 Type-A, 4 × USB 3.2 Gen 1, 4 × USB 2.0, 1 × HDMI, 1 × DisplayPort, 1 × RJ-45, 1 × Optical S/PDIF Out, 2 × Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control |
| BIOS | 1 × 256 Mbit AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM), LAN Bandwidth Management Software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX (30.5 × 24.4 cm) |
