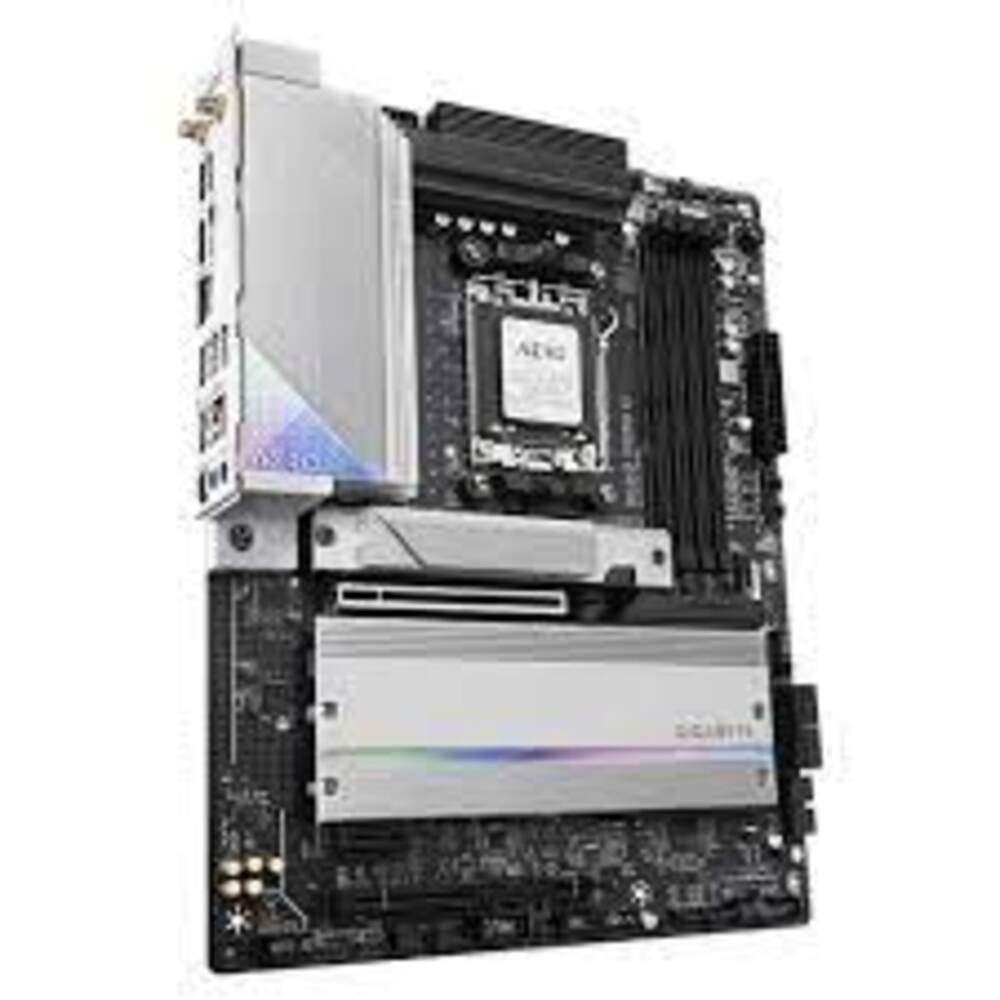

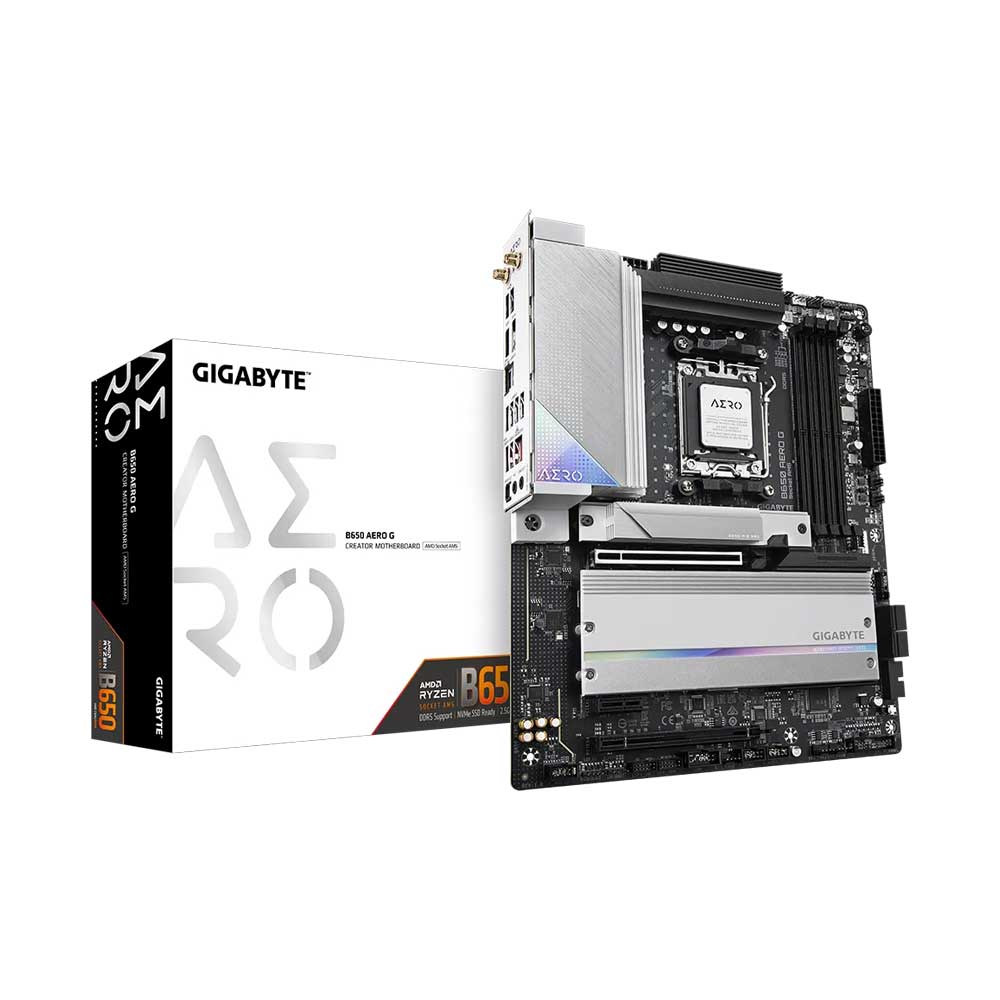

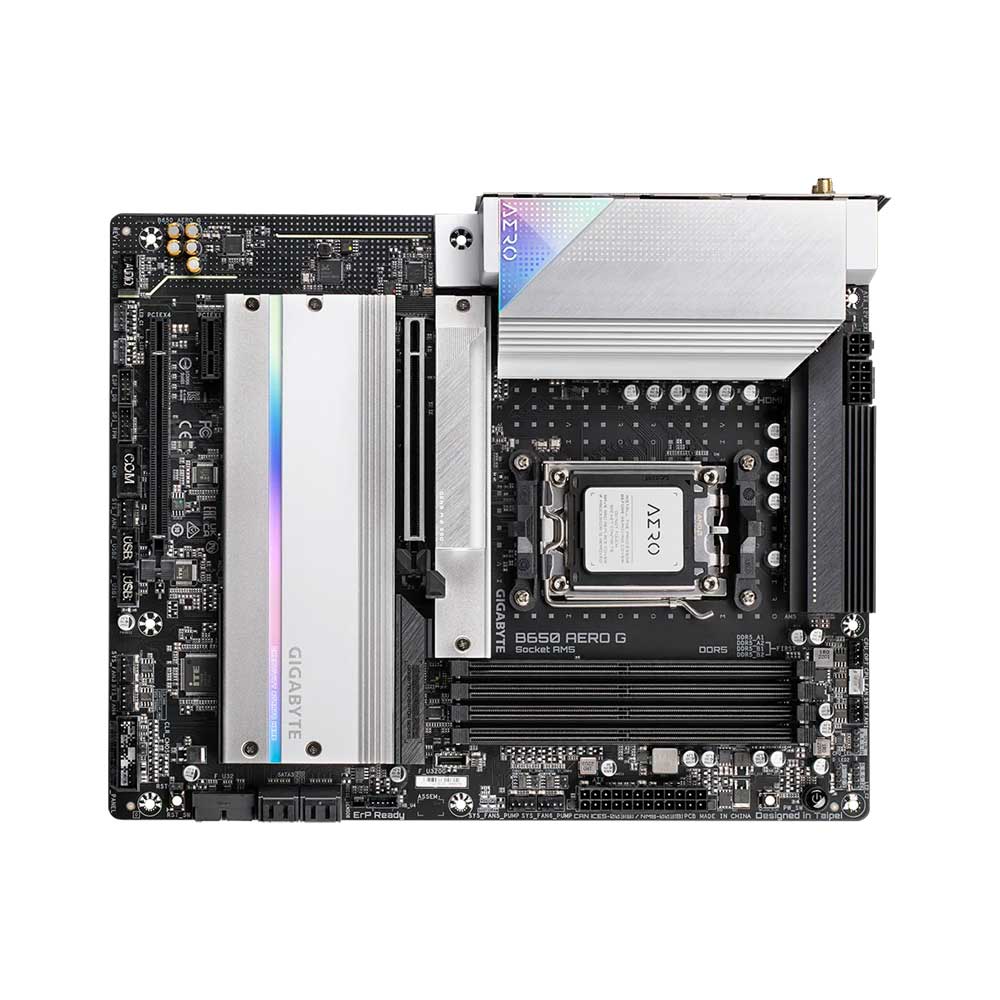

Gigabyte B650 Aero G WiFi DDR5 ATX Motherboard
Overview
The Gigabyte B650 Aero G WiFi is a premium ATX motherboard built for content creators and professionals using AMD Ryzen 7000 series processors. It features DDR5 memory support, PCIe 4.0 expansion, USB4, WiFi 6E, and 2.5GbE LAN, delivering top-tier speed, stability, and connectivity. With VisionLINK technology, advanced cooling, and an Ultra Durable design, it ensures an efficient and reliable workflow for high-performance applications.
Key Features
- AMD Ryzen 7000 Support – Optimized for AM5 processors
- Dual-Channel DDR5 – Up to 192GB, 6400+ MHz (OC)
- PCIe 4.0 Expansion – 1x PCIe 4.0 x16 slot for high-performance GPUs
- Ultra-Fast Storage – 3x M.2 PCIe 4.0 slots with heatsinks
- USB4 & USB 3.2 Gen2 – High-speed connectivity for creators
- VisionLINK Technology – Simplified display & power delivery
- WiFi 6E & 2.5GbE LAN – Reliable, high-speed networking
- Q-Flash Plus – Update BIOS without CPU, RAM, or GPU
- Advanced Cooling – VRM heatsinks, M.2 thermal guards, Smart Fan 6
- Ultra Durable Build – Reinforced PCIe & RAM slots for longevity
Specifications
| Category | Details |
|---|---|
| CPU Support | AMD Ryzen 7000 Series (Socket AM5) |
| Chipset | AMD B650 |
| Memory | 4x DDR5 DIMM slots, Dual-Channel, Up to 192GB, 6400+ MHz (OC) |
| Graphics Support | 1x PCIe 4.0 x16 slot (Reinforced) |
| Storage | 3x M.2 PCIe 4.0 x4 slots, 4x SATA III (6Gbps) ports |
| Networking | WiFi 6E, 2.5GbE LAN, Bluetooth 5.3 |
| Audio | Realtek ALC1220-VB 7.1-Channel HD Audio |

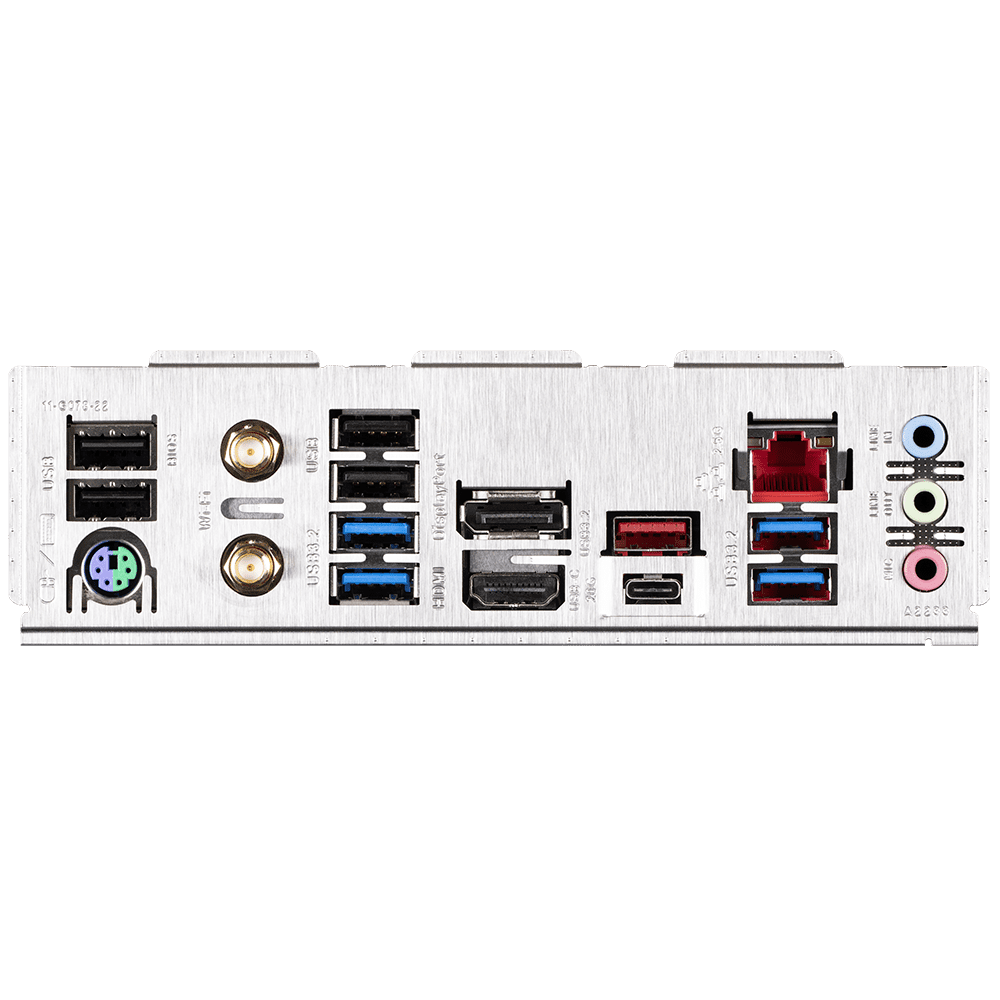

| USB Ports (Rear) | 2x USB4 Type-C, 2x USB 3.2 Gen2 Type-A, 4x USB 3.2 Gen1, 4x USB 2.0 |
| USB Ports (Front) | 1x USB 3.2 Gen1 Header, 2x USB 2.0 Headers |
| BIOS Features | Dual BIOS, Q-Flash Plus, Smart Fan 6, EZ Debug LED |
| Cooling | VRM heatsinks, Hybrid fan headers, Smart Fan 6 control |
| RGB & Lighting | ARGB & RGB headers, RGB Fusion 2.0 |
| Form Factor | ATX (305mm x 244mm) |
| Warranty | 3 years manufacturer warranty |
