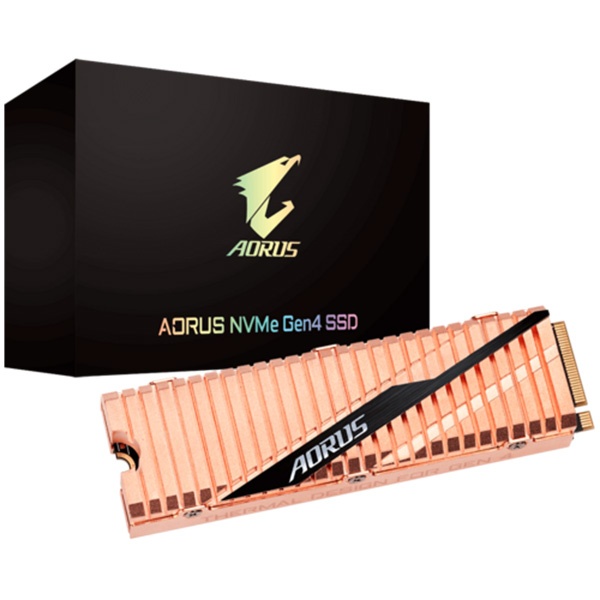

Gigabyte Aorus 2TB Gen4 M.2 NVMe Internal SSD (Copper Heatsink)
- Form Factor: M.2 2280
- Interface: PCI-Express 4.0 x4, NVMe 1.3
- Total Capacity: 2000GB*
- Sequential Read Speed : up to 5000 MB/s**
- Sequential Write speed : up to 4400 MB/s**
- Wear Leveling, Over-Provision technologies
- TRIM & S.M.A.R.T supported
- Fully Body Copper Heat Spreader
- Warranty: Limited 5-years
World First PCIe 4.0×4 Controller
- PCIe 4.0×4, NVMe 1.3 Interface
- DDR4 DRAM cache
- 8 CH with 32 CEs
- Phison 4th Gen LDPC & RAID ECC
- Support Pyrite
- Heat spreader for controller
NAND Flash Selected for High Quality and Performance
Xtreme Storage Performance
Full Body Copper Thermal Solution for Outstanding PCIe 4.0 SSD Performance
Efficient Copper Heat Spreader Design
Why is keeping an SSDs at lower temperatures so important?
- Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher.
- With Full Body Copper Heat Spreaders, the AORUS NVMe Gen 4 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can deliver extreme performance for longer periods.
SSD Tool Box
- Interface : PCI-Express 3.0 x4, NVMe 1.3
- Form Factor : M.2 2280
- Total Capacity : 2000GB
- Warranty : Limited 5-years or 3600TBW
- NAND : 3D TLC Toshiba BiCS4
- External DDR Cache : DDR4 2GB
- Sequential Read speed : Up to 5000 MB/s
- Sequential Write speed : Up to 2500 MB/s
- Random Read IOPS : Up to 750k
- Random Write IOPS : Up to 700k
- Dimension : 80.5 x 11.4 x 23.5 mm
- Mean time between failure (MTBF) : 1.77 million hours
- Power Consumption (Active) : Average: R : 5.9W; W : 4.5W
- Power Consumption (Idle) : 21.1mW
- Temperature (Operating) : 0°C to 70°C
- Temperature (Storage) : -40°C to 85°C
- Note :* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
* Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
* Speeds based on internal testing. Actual performance may vary.
* TBW (Terabyte Written):Terabytes Written” is the total amount of data that can be written into an SSD before it is likely to fail.
* 1GB = 1 billion bytes. Actual useable capacity may vary.
* 5 years or 3600TBW, whichever comes first.
