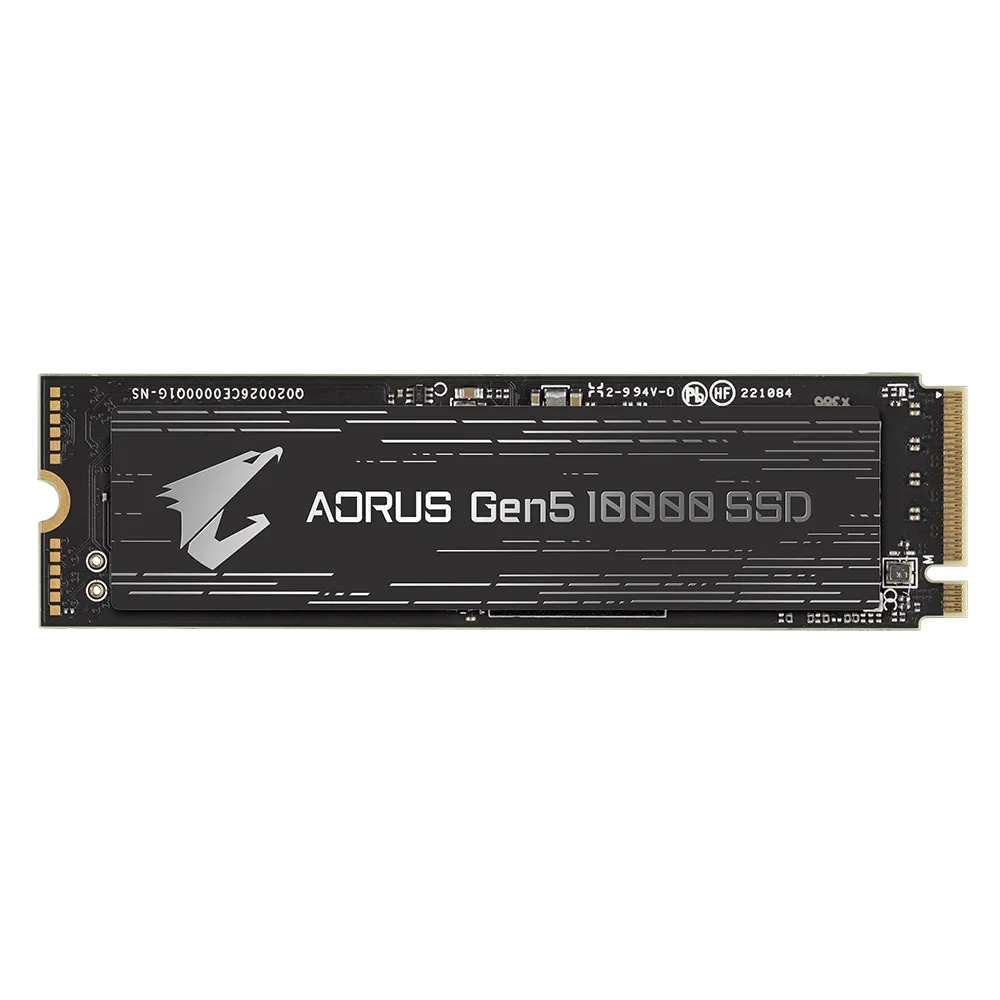

Gigabyte Aorus 10000 2TB Gen5 M.2 NVMe Internal SSD :
Features of Gigabyte Aorus 10000 2TB Gen5 :
- Form Factor: M.2 2280
- Interface: PCI-Express 5.0 x4, NVMe 2.0
- Total Capacity: 1000GB*
- Sequential Read Speed : up to 9,500 MB/s**
- Sequential Write speed : up to 8,500 MB/s**
- M.2 Thermal Guard XTREME with Nanocarbon coating
- Warranty: Limited 5-years
Overview of Gigabyte Aorus 10000 2TB Gen5 :
Top-tier performance power by PCIe 5.0 x4 controller
Power by the PCIe Gen5.0 x4 controller Phison E26 and brand-new 232-layer 3D TLC NAND Flash, Gigabyte Aorus 10000 2TB Gen5 SSD delivers top-tier performance: sequential read/write speeds up to 10,000/9,500 MB/s. Aim at PC enthusiasts, gamers, and rendering professionals, Gigabyte Aorus 10000 2TB Gen5 gives users faster data transferring and a lower-latency gaming experience.
- PCIe 5.0×4, NVMe 2.0 Interface
- Sequential Read Speed : up to 10,000MB/s**
- Sequential Write speed : up to 9,500MB/s**
- DDR4 DRAM cache
- 8 CH with 32 CEs
- Offer with an optional M.2 Thermal Guard XTREME with Nanocarbon Coating
Cutting edge speed
The E26 controller is built with the advanced 12nm process, ensuring sufficient computing power. Also, it supports up to 8 NAND Flash channels with 32CE, DDR4 SLC caching and complies with the NVMe 2.0 standard. Gigabyte Aorus 10000 2TB Gen5 SSD offers approximately 37% faster in read throughput and up to 37% higher write throughput than PCIe Gen4.0 x4.
NAND Flash Selected for High Quality and Performance
Leveraging the superior throughput and high-quality combination that 3D TLC NAND provides, Gigabyte Aorus 10000 2TB Gen5 SSD brings a better experience in work.

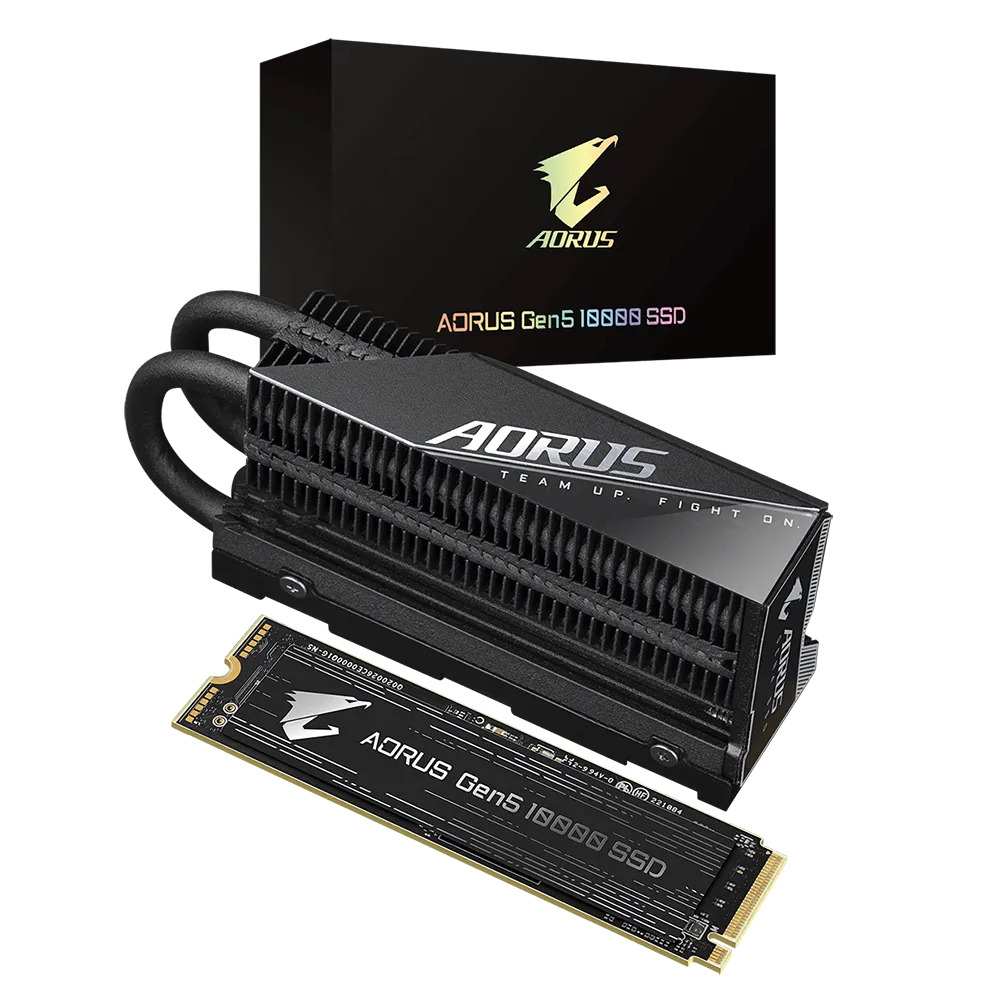

M.2 Thermal Guard XTREME with Nanocarbon Coating
Gigabyte Aorus 10000 2TB Gen5 SSD offer with an optional M.2 Thermal Guard XTREME which is made up of two heatpipes and stacked fins with advanced thermal technology Nanocarbon coating for maximum heat dissipation efficiency. Applied with dual side high conductivity thermal pad ensures the heat transfers to the stacked fins. The M.2 Thermal Guard XTREME is the best solution in passive airflow conditions when your personal computer adopts a CPU AIO water cooler.
Why is keeping an SSDs at lower temperatures so important?
Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. Compared with regular plated heat spreader, the M.2 Thermal Guard XTREME improves thermal dissipation to keep the highest Seq. read performance. With M.2 Thermal Guard XTREME, the SSD can operate at lower working temperatures to improve data storage reliability. Enjoy smoother & upgraded storage performance any time by utilizing M.2 Thermal Guard XTREME.
GIGABYTE CONTROL CENTER (GCC)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Specifications of Gigabyte Aorus 10000 2TB Gen5 :
|PCI-Express 5.0 x4, NVMe 2.0|
|3D TLC NAND Flash|
|Up to 10,000 MB/s|
|UP to 9,500 MB/s|
|SSD without Heatsink: 80 x 22 x 2.3 mm|
SSD with Heatsink: 92 x 23.5 x 44.7 mm
Please refer to the file to check the heatsink incompatible list
|1.6 million hours|
|Read: <10.5W ; Write: <11W|
|0°C to 70°C|
|-40°C to 85°C|
