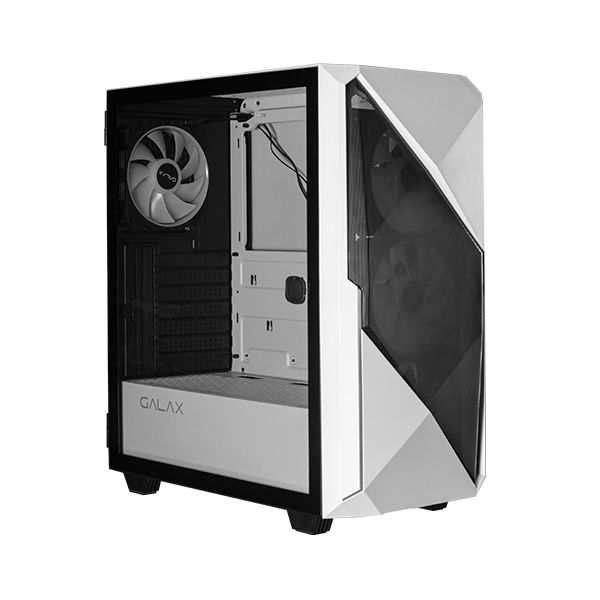

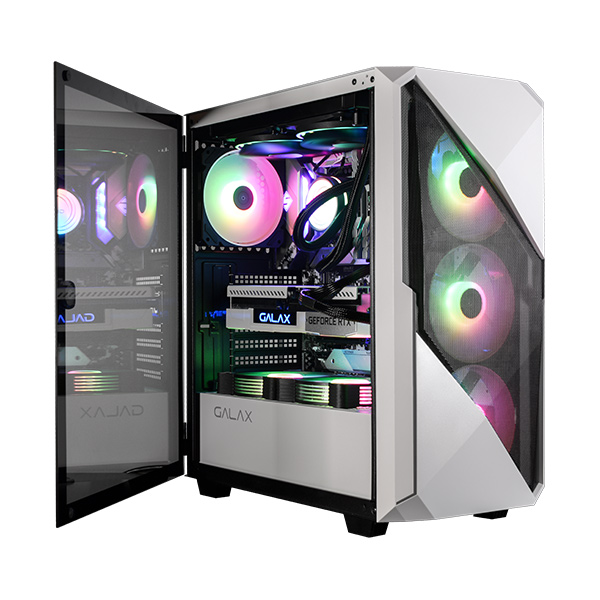

Galax Revolution 01 White Cabinet :

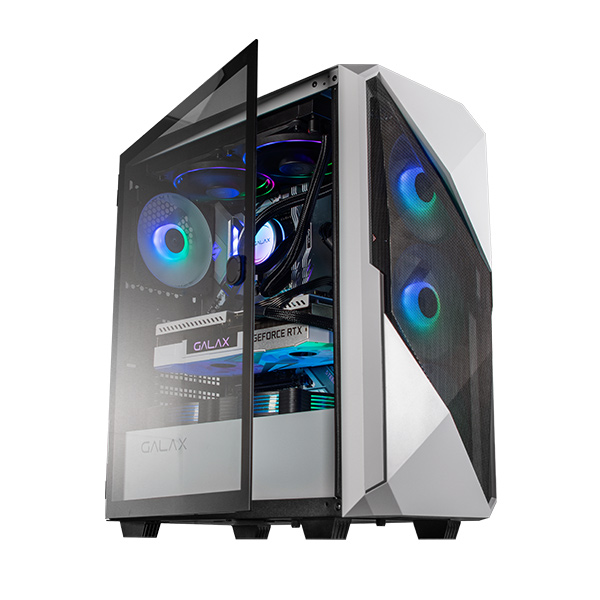

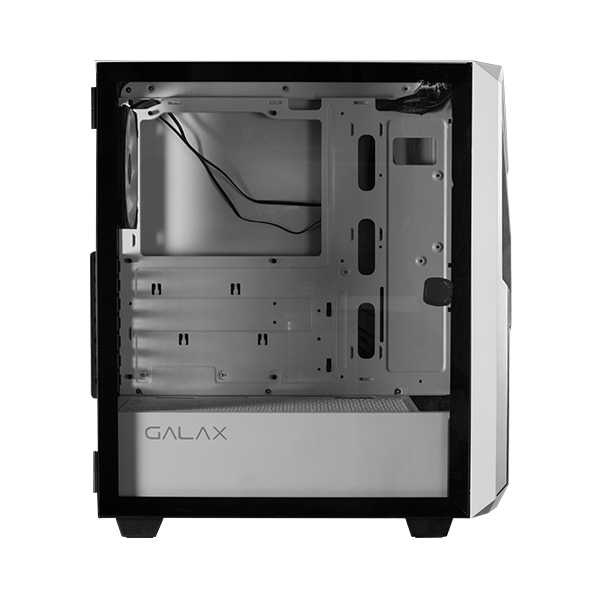

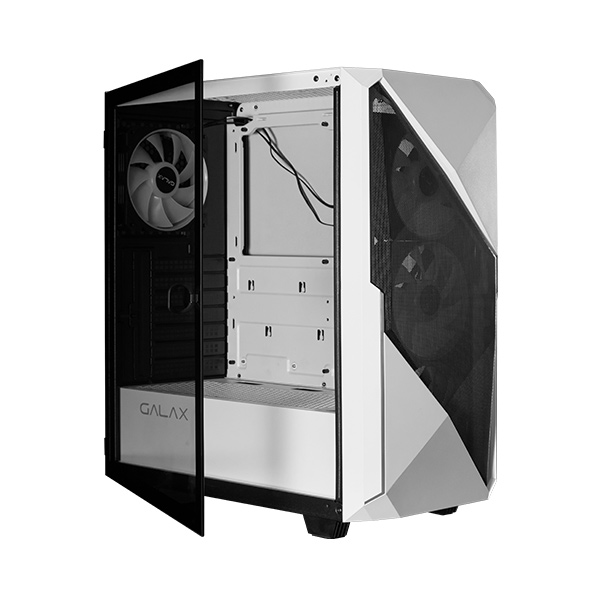

Rocking its all new arctic white finish, Galax Revolution 01 White is a mid tower PC case that supports ATX, M-ATX and ITX motherboards. Besides having a front panel mesh design for better heat dissipation, it also supports watercooling systems and up to 6 cooling fans installation. For the ease of customization, Galax Revolution 01 White also comes with a tempered glass panel and an built in ARGB controller, including the V2.0 PWM+ARGB(Rainbow) Hub.
Overview :
Specifications :
Form Factor (Midi, Micro, Mini ITX, Full) | Midi | ||
Chassis | SPCC: 0.45mm | ||
PSU Form Factor | Bottom/ATX | ||
M/B Form Factor | ATX、M-ATX、ITX | ||

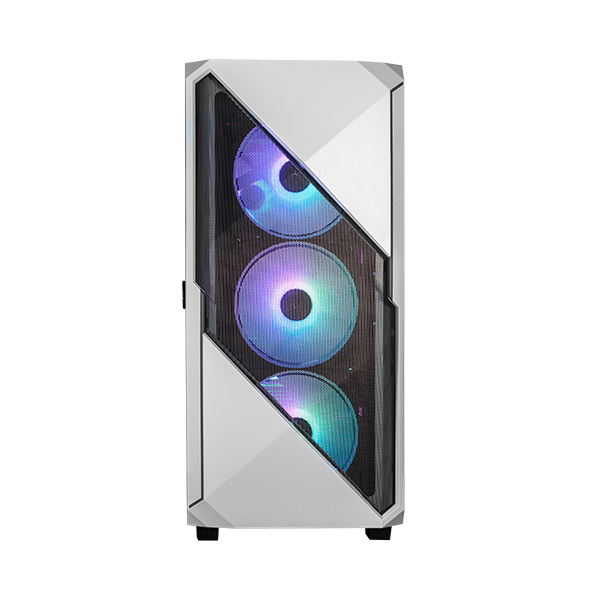

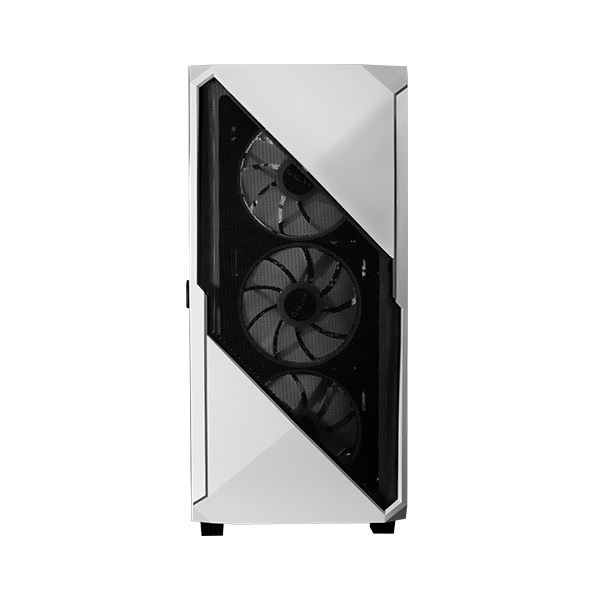

Front Panel | ABS, Mesh | ||
Top Panel | Metal cover | ||

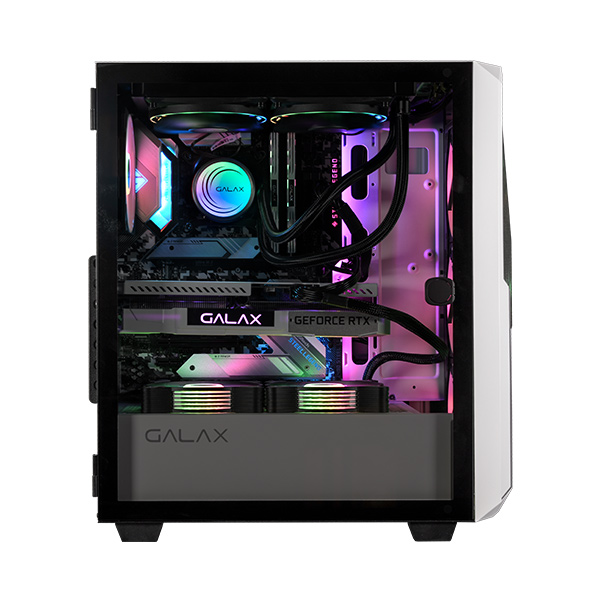

Side Panel | Left | Tempered Glass | |
Right | Metal cover | ||
External Drive Bay(s) | 5.25″ (ODD) | *0 | |
3.5″ | *0 | ||
Internal Drive Bay(s) | 3.5″ (HDD) | *2 | |
2.5″ (SSD) | *2 | ||
1*3.5HDD+3*2.5SSD or 2*3.5HDD+2*2.5SSD | |||

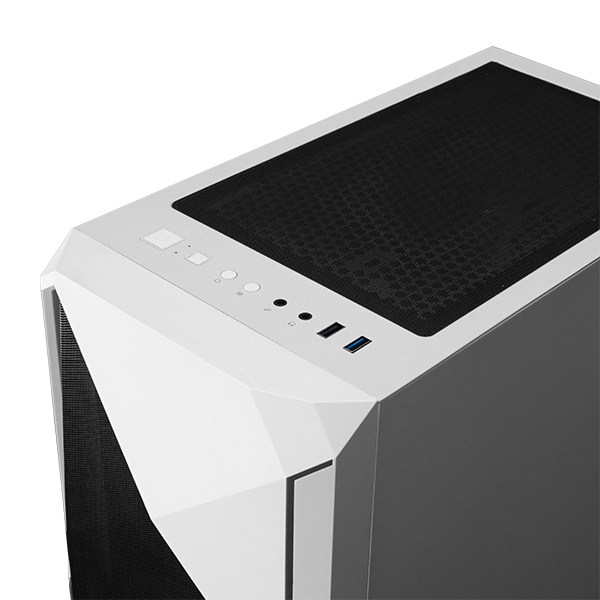

I/O | Buttons | *4 | |
USB1.1 Port(s) | *0 | ||
USB2.0 Port(s) | *1 | ||
USB3.0 Port(s) | *1 | ||
USB3.1 Port(s) | *0 | ||
HD Audio Support | *1 | ||
Card Reader (Support) | *0 | ||
P-Lock | *0 | ||
RGB Controller | *1 Rainbow+PWM V2.0 | ||
Controller max. fans | *5 | ||
RGB Controller max. LED strips | *2 | ||
Remote (IR or RF) | *0 | ||
Cooling Fan Support | Front | 3x120mm,2x140mm(Fan optional) | |
Top | 0 | ||
Rear | 1x120mm (Fan optional) | ||
Left Side | 0 | ||
PSU Cover | 2x120mm (Fan optional) | ||
Water Cooling Support | Front | 120mm, 140mm, 240mm, 280mm | |
(Radiator Size) | Top | 120mm, 140mm, 240mm | |
Rear | 120mm*1 | ||
Dust Cover | Bottom and top cover with dust filter | ||

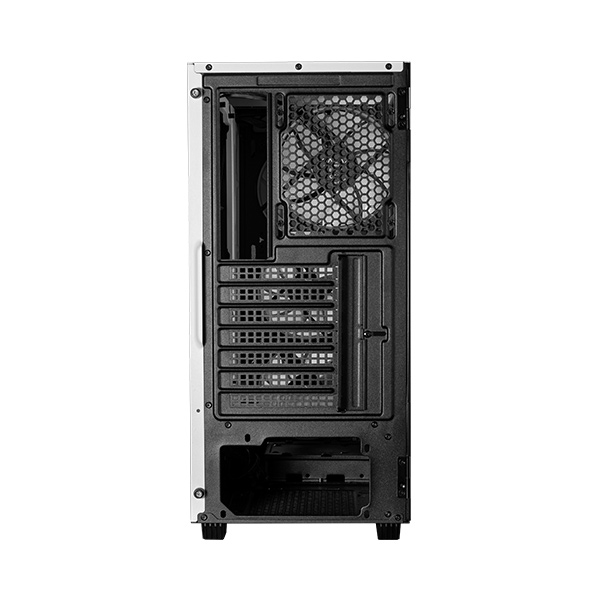

Slots | *7 | ||
Dimensions | Chassis | mm | (L)360*(W)210*(H)440 |
Full Case (inc Fascia) | mm | (L)424*(W)215*(H)460 | |
Carton | mm | (L)506*(W)266*(H)465 | |
Net Weight (Kg) | kg | 4.9 | |
Gross Weight (Kg) | kg | 5.8 | |
VGA Card Length | mm | up to 340 | |
CPU Cooler Height | mm | 170 | |
Cable Management Depth | mm | 22 |
