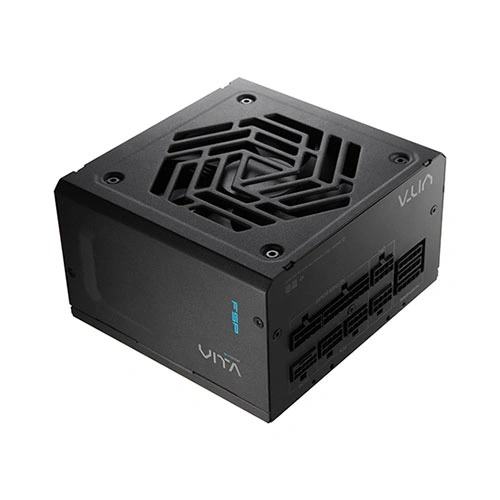

FSP VITA GM Gold 850W 80 Plus Gold ATX 3.1 Fully-Modular Power Supply with PCIe 5.1 Support

FSP VITA GM Gold 850W 80 Plus Gold ATX 3.1 Fully-Modular Power Supply with PCIe 5.1 Support

Feature:

• FSP VITA GM Gold 850W is Complies with ATX 12V V3.1 & EPS 12V V2.92
• Efficiency ≧ 90% at typical load
• 80 PLUS gold certified
• 105°C Japanese bulk capacitor
• 120mm hydraulic bearing ( HYB ) fan
• Fully modular cabling design
• Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO

Complies with Intel Power Design Guide ATX 3.1

Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.

High Efficiency in Gold-certified

FSP VITA GM Gold 850W is Certified by world-class organizations 80 PLUS gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation.

LLC Resonant-converter Topology with Synchronous Rectifier

Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.

+5V & 3.3V DC to DC Circuit Design

Increase the efficiency and stabilize the output voltage to ensure system stability.

105°C Japanese Bulk Capacitor

Equip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power.

120 mm hydraulic bearing (HYB) fan

Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.

Powerhouse Single +12V Rail

This high-amperage +12V rail delivers high load capabilities, it’s ideal for intensive workloads of high-performance CPUs and graphics cards.

The Force Comes with You

Individual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads.

The Force Comes with You

Dual PCIe 6+2Pin cables and a versatile 12V-2×6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.

Fully Modular Cabling Design

To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.

Compact PSU Size：140 x 150 x 86mm

140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.

Fortress-level Protection

Our comprehensive circuit shields your valuable components from harm.

Connector

• MB 20+4 PIN: 1
• CPU 4+4PIN: 2
• PCIe 6+2 PIN: 4
• PCIe 12V-2×6: 1
• SATA: 4
• MOLEX/SATA: 4

Detail Specs

• Rated Output Power: 850W
• Form Factor: ATX12V V3.1
• 80 PLUS Certification: GOLD
• Cybenetics Certification: GOLD
• Cybeneitcs Lambda: A
• Input Voltage: 100-240V
• Input Current: 11-5.5A
• Input Frequency: 50-60Hz
• PFC: Active ≧ 0.9
• Efficiency(at typical load): ≥90% at typical load
• Fan Type: HYB fan, 120mm
• Operation Temp: 40°C
• Protection: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO

Specification:
