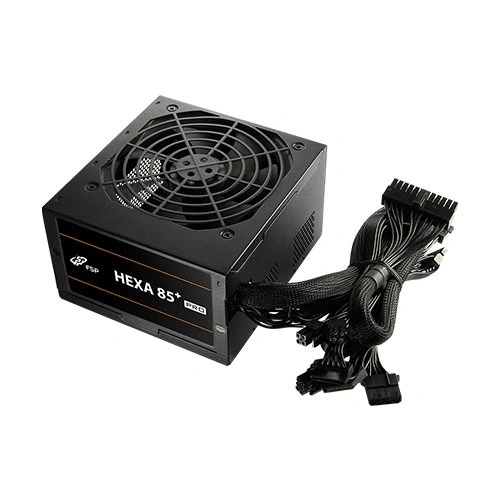

FSP Hexa 85 Plus Pro 650W 80 Plus Bronze ATX 3.1 Non-Modular Power Supply
Feature:
- Complies with ATX12V V3.1 & EPS12V V2.92
- Support native PCIe 12V-2×6 connector(850W & 750W)
- Efficiency ≧ 85% at typical load
- Active PFC ≧ 0.9
- Hold up time > 17ms at 80% load
- Japanese electrolytic capacitors
- +12V single-rail design
- +5V&3.3V DC to DC module design
- 120mm hydraulic bearing (HYB) fan
- Flat black ribbon cables
- Complete protection: OCP/OVP/OPP/SCP
80 Plus Bronze Certification
FSP Hexa 85 Plus Pro 650W Series, 80 PLUS bronze certified, saves energy through its high efficiency up to 85%.
All Black Flat Cables
It gives your system a superior look than ever, and straightforward rather so many entry-level power supplies
Stable DC to DC Output Quality
FSP Hexa 85 Plus Pro 650W series apply DC to DC modules to improve the reliability and greater compatibility with the quality with low ripple noise to reduce interference of system components, and prolong system lifetime.
+12V Single Rail Design
Designed for power-intensive VGA cards, provides strong power to any overloading condition.
Optimal Cooling
HEXA 85+ PRO series comes with a 120mm quiet hydraulic bearing fan(HYB) and a highly efficient ventilation fan guard to guarantee low noise operations without compromising its cooling efficiency.
Japanese Electrolytic Capacitors
Japanese electrolytic capacitors ensures safety on spare parts for prolonged lifespan and reliability.
Supports High-end Motherboard
For gaming enthusiast, the HEXA 85+ PRO 650W featured dual CPU power connectors for high-end motherboards and stable CPU power delivery.
Connectors
- MB 20+4 PIN: 1
- CPU 4+4 PIN: 2
- PCIe 6+2: 2
- SATA: 8
- Molex(PERIPHERAL): 2
- Floppy: 1
Specifiactions
- Model: HA2-650
- Form Factor: ATX
- 80 PLUS Certification: 80 PLUS Bronze
- Input Voltage: 100-240V
- Input Current: 9-4A
- Input Frequency: 50-60Hz
- PFC: Active PFC
- Efficiency: ≥85% at typical load
- Fan Type: Hydraulic Bearing (HYB) Fan, 120mm
- Protection: OCP/OVP/OPP/SCP
Specification:
| Wattage | 650 Watt |
| Series | HEXA SERIES |
| Certification | 80 Plus Bronze |
| Modular | NON MODULAR |
| PCIe Connector (6+2) | 2 |
| SATA Connector | 8 |
| Peripheral (4-Pin) | 2 |
| Warranty | 5 Years |
| Note*** | Features, Price, Specifications are subject to change without notice. Images used for representation purpose only |
