Fractal Design Ridge Mini Tower Cabinet, Vertical or Horizontal Layout, USB Type C, M-ITX Support, Up To 120 mm Radiator Support
Overview:
The Fractal Design Ridge PCIe 4.0 M-ITX Mini Tower Cabinet (White) FD‑C‑RID1N‑12 (Fractal Ridge PCIe 4.0 – White) is a compact yet powerful 12.6 L Mini‑ITX case. Engineered for living-room setups and minimalist desktops, it combines a ventilated steel frame with a clean fabric aesthetic. Fractal Design Ridge PCIe 4.0 M-ITX Mini Tower Cabinet (White) Supporting GPUs up to 335 mm via PCIe 4.0 riser, dual 140 mm side fans, and optional top fans, Ridge delivers a sleek, performance-focused SFF build in a space-saving footprint. Fractal Design Ridge PCIe 4.0 M-ITX Mini Tower Cabinet (White)
Key Features:
Sleek Small‑Form‑Factor Design

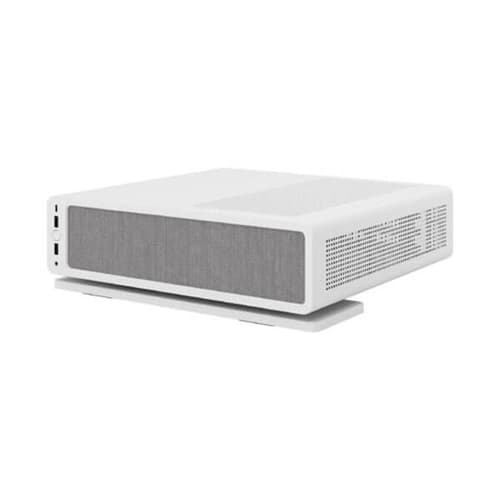

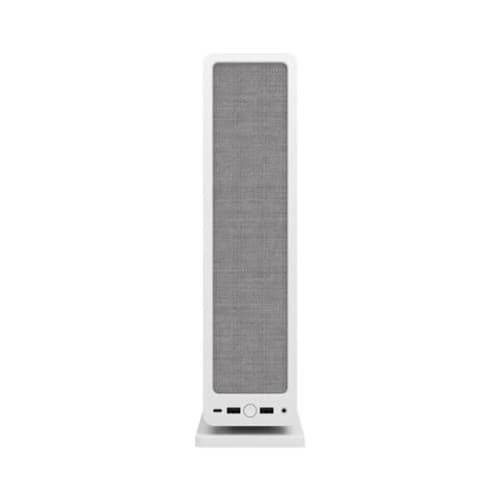

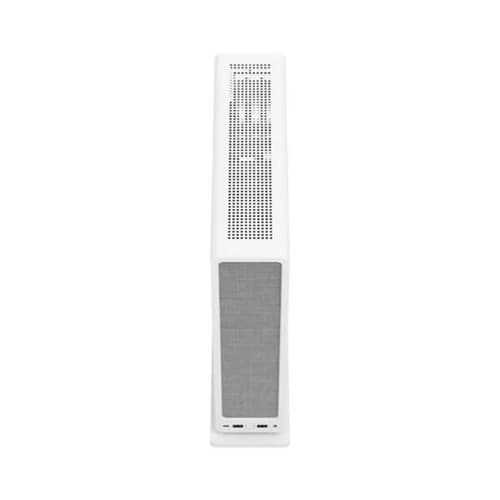

At just 12.6 L (374 × 110 × 395 mm vertical), Ridge fits compact spaces while offering flexible vertical or horizontal orientation with removable panels.Full‑Length GPU Compatibility
Supports GPUs up to 335 mm (325 mm with 2.5″ SSD installed), enabled by the included PCIe 4.0 riser card.Efficient Cooling Layout

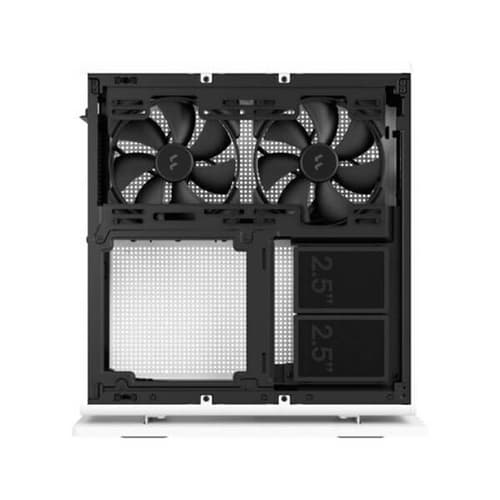

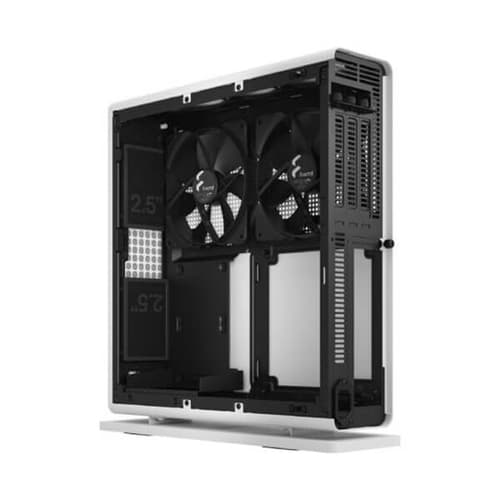

Comes with two 140 mm PWM side fans; supports additional “2×120/140 mm side + 3×80 mm top” fans. Handles side radiators up to 120 mm (with GPU) or 280 mm (without GPU).Premium Build & Ventilation
Steel side panels complement a CNC-machined aluminum frame, all sides ventilated for optimal airflow.Versatile Front I/O & Storage
Equipped with USB‑C Gen 2×2 (20 Gbps), 2× USB‑A 3.0, combo audio jack, and four dedicated 2.5″ drive mounts.Builder‑Friendly Design

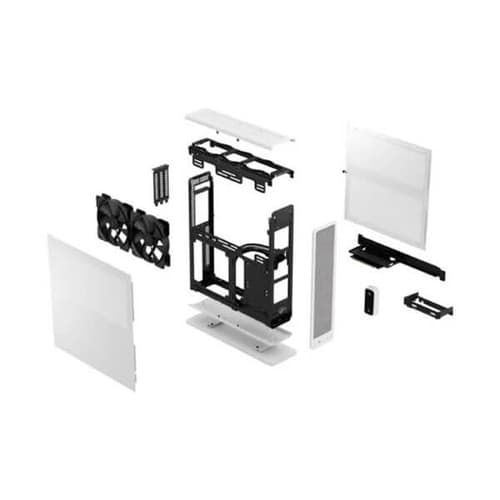

Tool-less slide-out panels, captive thumbscrews, 13.8 mm behind-PSU cable space, and support for SFX/SFX‑L PSUs ensure easy installation.
Specification Table:
| Component | Specification |
|---|---|
| Form Factor / Volume | Mini‑ITX, ~12.6 L (374×110×395 mm vertical; 360×375×115 mm horizontal) |
| Motherboard Support | Mini‑ITX |
| PSU Compatibility | SFX / SFX‑L (max ~130 mm) |
| GPU Support | Up to 335 mm (325 mm with SSD); height 125/137 mm; thickness up to 82 mm |
| CPU Cooler Height | 70 mm |
| Internal Drive Bays | 4× 2.5″ SSD mounts |
| Expansion Slots | 3 full-height |
| Fan Support | Side: 2× 140 mm (included); optional 2×120/140 mm side; top: 3× 80 mm |
| Radiator Support | Side: up to 120 mm (with GPU)/280 mm (without GPU) |
| Front I/O Ports | 1× USB‑C 3.2 Gen 2×2, 2× USB‑A 3.0, 1× combo audio, power LED/button |
| Cable Management | 13.8 mm clearance behind PSU |
| Panels & Construction | Steel sides, CNC-aluminium frame, tool-less with thumbscrews |
| Weight | 4.3 kg |
| Warranty | 2 years |
| Identifiers | EAN: 7340172706106; UPC: 843276106102 |
