Fractal Design Meshify 3 Black Mid-Tower Cabinet with Light-Tint Tempered Glass, Type C Port, E-ATX Support & Up to 360mm Radiator Support
Overview :

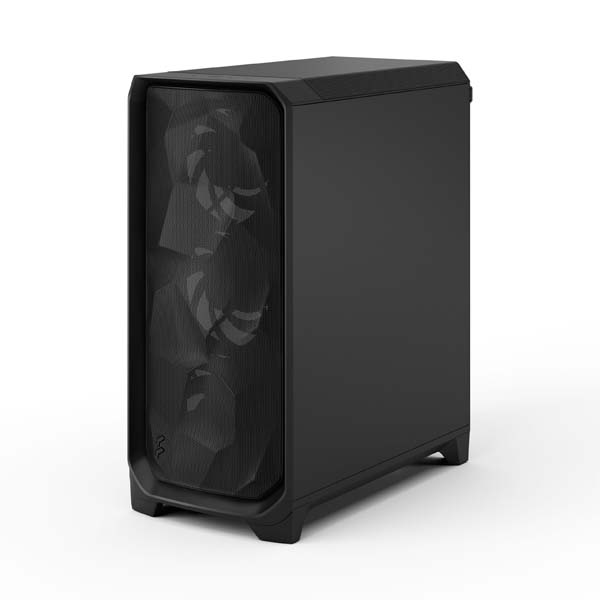

The Fractal Design Meshify 3 ATX Mid Tower PC Case Cabinet – Black TG Light Tint Tempered Glass, Mesh Front Panel, USB Type‑C, 360 mm Radiator Support is a premium mid-tower ATX chassis with a sleek light-tinted tempered glass side panel and the distinctive rock-face mesh front. Fractal Design Meshify 3 TG Light‑Tint supports E-ATX motherboards (up to 277 mm wide), Fractal Design Meshify 3 GPUs up to 349 mm, and advanced cooling setups—making it an ideal choice for gamers, creators, and power users .
Key Features :
E‑ATX support: compatible with boards up to 277 mm width .
Light-tinted tempered glass side panel for clean interior visibility.
High-performance airflow: includes three 140 mm Momentum fans; supports up to six 120 mm or five 140 mm fans + one 120 mm rear
Versatile radiator clearance: Front – 280/360 mm; Top – 240/280 mm; Rear – 120 mm
Modern I/O: USB‑C 20 Gbps, two USB‑A 5 Gbps, and combo audio jack
Smart cable management: 34.5 mm routing space, cable cover, 3 Velcro straps, and cable aligners
Tool-less design: push-to-lock for side/top panels, bottom filter, PSU bracket, and front panel
Solid steel construction with a clean interior and easy filter access
Two-year warranty from Fractal Design
Specifications :
| Specification | Details |
|---|---|
| Model | FD‑C‑MES3A‑02 (Meshify 3 TG Light‑Tint) |
| Case Type | Mid‑Tower (supports E‑ATX) |
| Materials | Steel chassis with light-tinted tempered glass |
| Dimensions (H × W × D) | 507 × 229 × 433 mm (483 × 229 × 423 mm without feet) |
| Net Weight | 8.8 kg |
| Motherboard Support | E‑ATX (≤277 mm), ATX, mATX, Mini‑ITX |
| Expansion Slots | 7 full‑height |
| Drive Bays | 2× 3.5″ or 4× 2.5″ (behind mobo), plus 2× dedicated 2.5″ = 6 total |
| Fan Support | Front: 3×120/140 mm; Top: 2×120/140 mm; Rear: 1×120 mm (3×140 mm Momentum included) |
| Radiator Support | Front: 280/360 mm; Top: 240/280 mm; Rear: 120 mm |
| Max GPU Length | 349 mm; Height up to 176 mm (7-slot) |
| Max CPU Cooler Height | 173 mm |
| PSU Max Length | 180 mm |
| Cable Routing Space | 34.5 mm |
| I/O Ports | 1× USB‑C 20 Gbps, 2× USB‑A 5 Gbps, audio combo jack, power button |
| Dust Filters | Removable PSU bottom filter |
| Warranty | 2 years |
