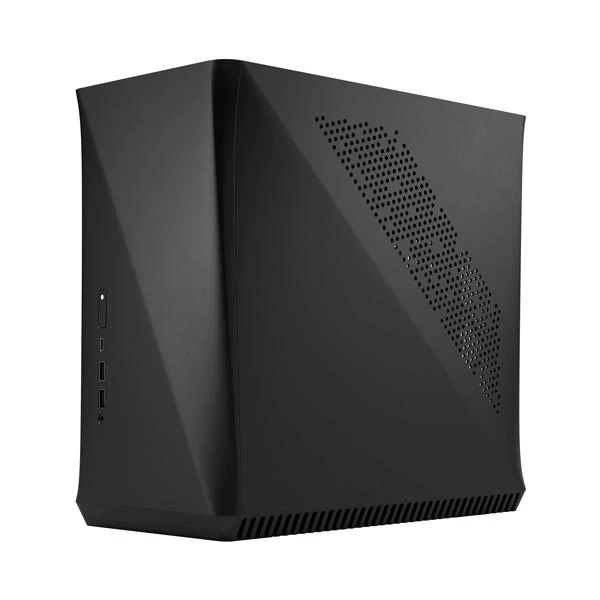

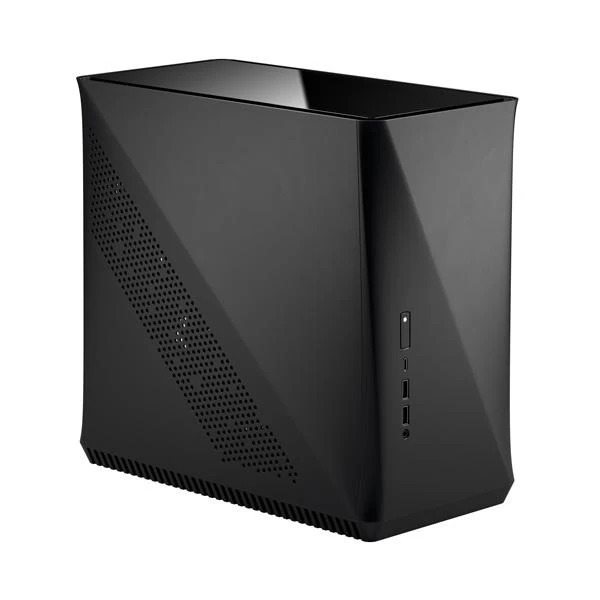

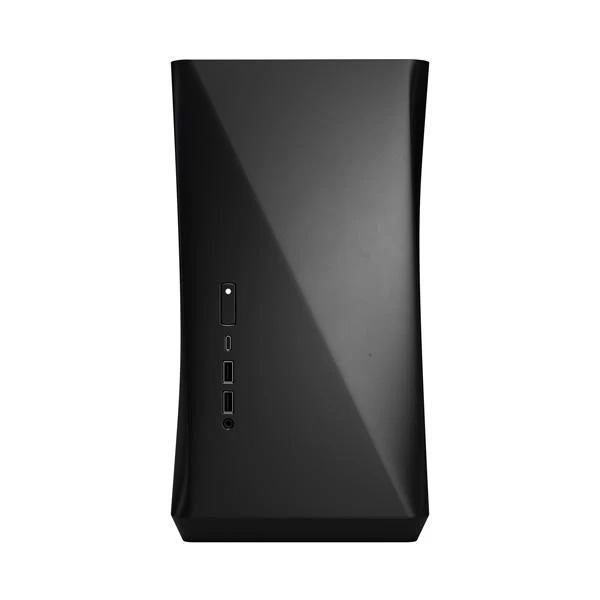

Fractal Design Era Carbon Black ITX Mini Tower Cabinet
Fractal Design Era Carbon Black ITX is a unique and elegantly understated feat of both design and technical engineering — a compact chassis free from the excessive restrictions traditionally associated with small form factor systems.
- Compact, uniquely designed aluminum exterior available in five colors
- Stylish color-coordinated top panel
- Supports dual slot graphics cards up to 295 mm in length

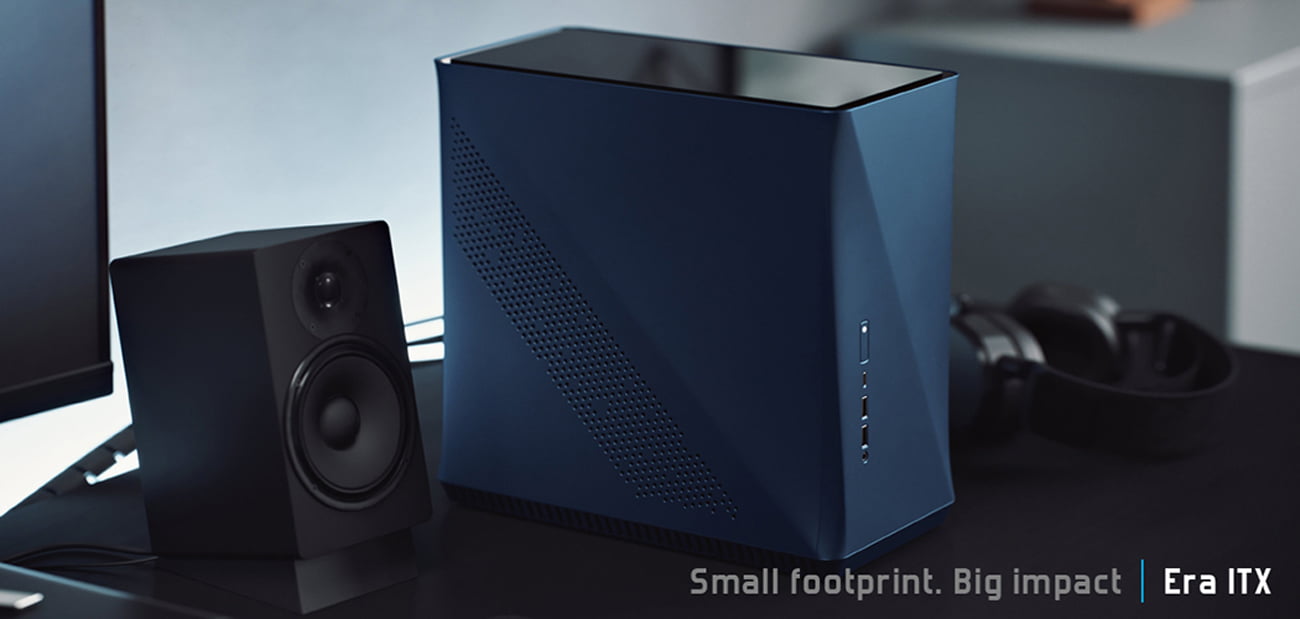

Small footprint. Big impact.
Don’t let the size fool you. Fractal Design Era Carbon Black ITX is uniquely designed SFF case supports professional grade hardware thanks to a remarkably versatile interior. As space efficient as it is flexible, the Fractal Design Era Carbon Black ITX comes with a sleek aluminum exterior and is available in five colors.
Just add water
The removable radiator bracket allows 240 mm or dual 120 mm radiators for robust liquid cooling in Fractal Design Era Carbon Black ITX

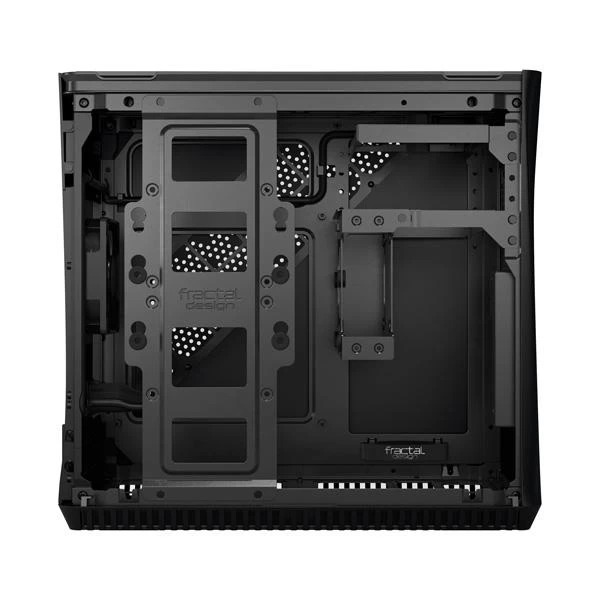

The two included storage brackets each support a single 3.5″ HDD or two 2.5″ SSDs.
Airflow and the Era
- Efficient chimney design optimizes airflow across five total fan positions
- Pre-installed 80 mm Fractal Design SSR3 fan exhausts heat silently and effectively
- Easy-to-clean, high airflow nylon filters on the top, sides and base
SFX or ATX? Yes.
Our innovative adjustable brackets give you total flexibility with PSU mounting height in order to maximize effective use of interior space.
Need more air?

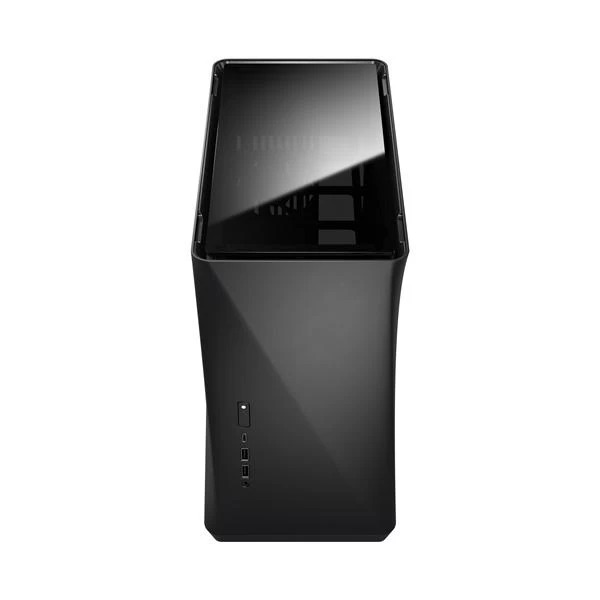

The color-coordinated wood and tempered glass top inserts are easily swappable with the included steel mesh panel for increased airflow.
USB 3.1 Gen 2 Type-C with support for fast charging and speeds up to 10Gbps
A magnetic top panel and tool-less latching side panels make for near-effortless maintenance
Large GPU Support
Fractal Design Era Carbon Black ITX allows dual slot graphics cards up to 295 mm in length
|3.5″/2.5″ Universal drive brackets||SFX PSU: 2 HDDs or 1 HDD + 2 SSDs; ATX PSU: 1 HDD|
|Dedicated 2.5″ drive brackets||SFX PSU: 4 SSDs or 2 SSDs + 1 HDD; ATX PSU: 2 SSDs|
|5.25” drive mounts||N/A|
|Front ports||1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 3.5 mm CTIA combined audio/mic|
|Total fan mounts||5|
|Top fan||2x 120 mm|

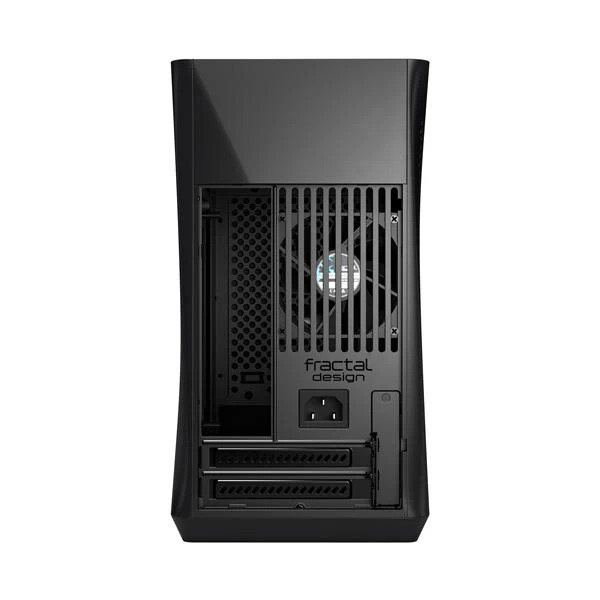

|Rear fan||1x 80 mm (1 x SSR3 80 mm included)|
|Bottom fan||2x 140 mm (without 2-slot GPU)|
|Dust filters||Bottom intake, Side intakes, Top exhaust|
|Fixed velcro straps||Yes|
|Tool-less push-to-lock||Both side panels|
|Left side panel||Aluminum|
|Right side panel||Aluminum|
|Power supply type||ATX, SFX-L, SFX|
|PSU max length||200 mm|
|Top radiator||120/240 mm or 2x 120 mm (max 125 mm width, 67 mm thickness w/ fans, dependent on PSU position/type)|
|GPU max length||295 mm or 210/190 mm (with low-mounted SFX/ATX PSU)|
|CPU cooler max height||120 mm (70 mm recommended with side-mounted 3.5” HDD)|
|Case dimensions (LxWxH)||325 x 166 x 310 mm|
|Case dimensions w feet/protrusions/screws||325 x 166 x 307 mm|
|Net weight||4.167 kg|
|Package dimensions (LxWxH)||385 x 240 x 420 mm|
|Gross weight||5.127 kg|
