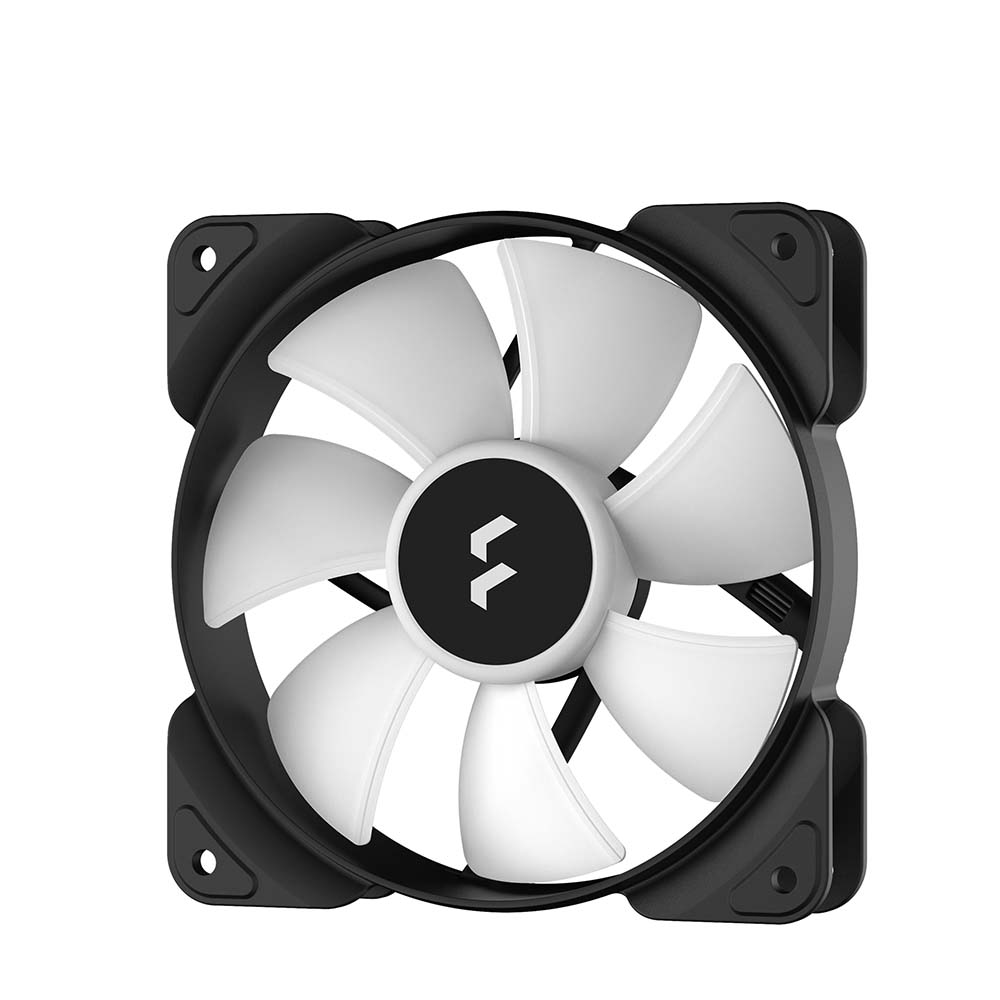

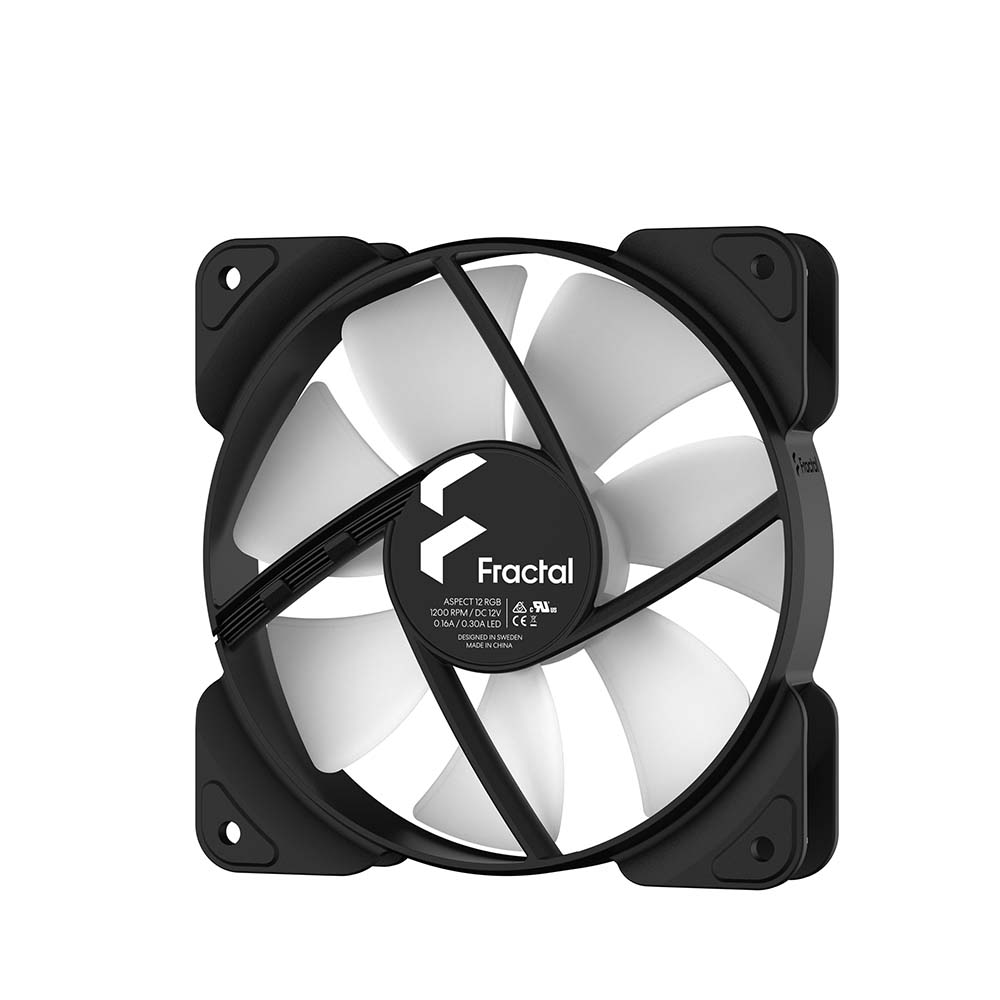

Fractal Design Aspect 12 RGB Black 120 x 120 x 25 mm Case Fan
Features :
• Less turbulence thanks to aerodynamic stator struts
• 6 individually addressable hub-mounted RGB LEDs
• Fractal Design Aspect 12 RGB Supports ASUS AURA, Gigabytes Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Overview :
Fractal Design Aspect 12 RGB Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal Design range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.

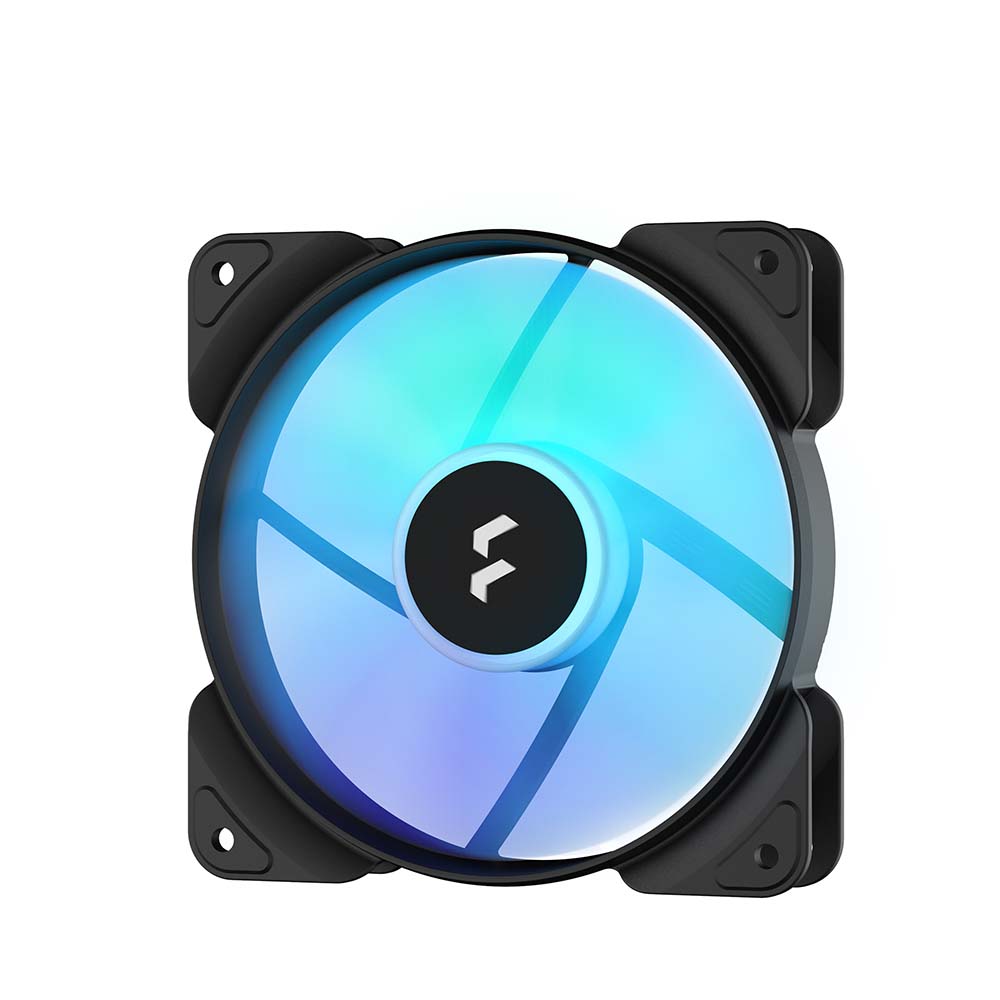

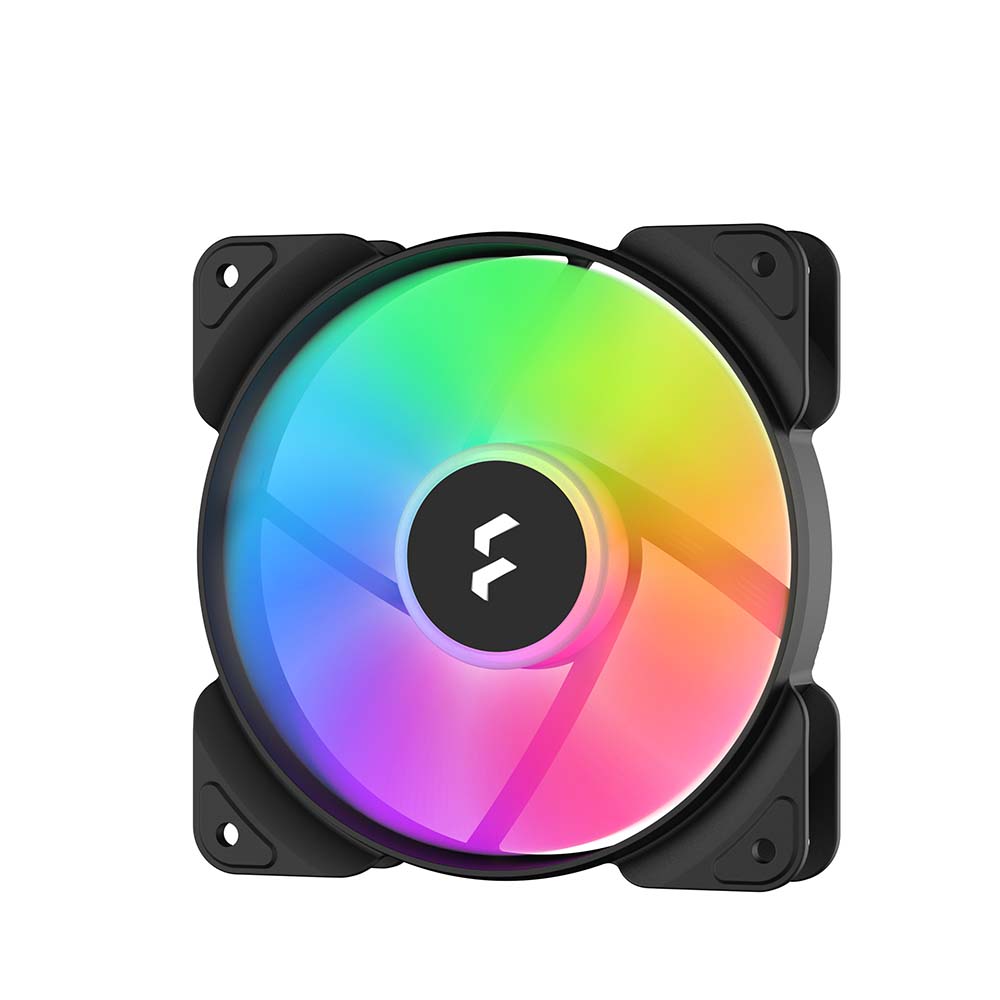

In living color
Let your system shine with six individually addressable hub-mounted RGB LEDs. The aerodynamic stator struts decrease turbulence and noise caused by flowing air. The Aspect frame offers aesthetics without compromising on performance
Extensive support
Fractal Design Aspect 12 RGB Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma.
Rifle bearings
Fractal Design Aspect 12 RGB More efficient than standard sleeve bearings.
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency.

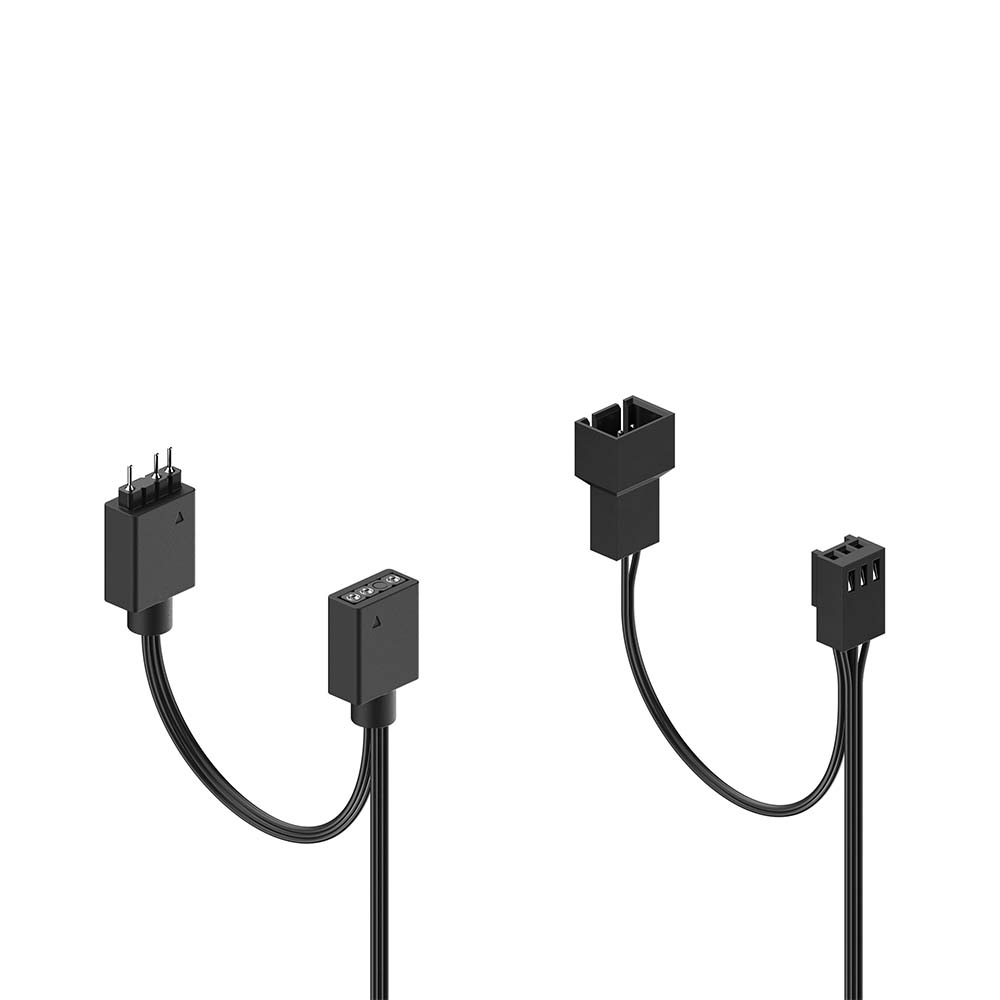

Chain Feature
Simplify cable management by using the Aspect chain feature for multiple units.
Specifications :
| Size | 120 x 120 x 25 mm |
| Screw hole pattern | 105 x 105 mm |
| LED type | Addressable RGB |
| Power connector | 3-pin |
| Bearing | Rifle |
| Number of blades | 7 |
Rotational speed | 1200 RPM |
Noise level | 18.3 dB(A) |
Max airflow (CFM) Max airflow (m³/h) Max pressure | 32 CFM 54.4 m³/h 1.20 mm H2O |
Fan typical input power Fan max input current Fan input voltage Minimum startup voltage LED rated voltage LED rated current LED Rated input power | 0.96 W 0.16 A 12 V 7 V 5 V 0.3 A 1.5 W |
MTTF | 90.000 h |
Unit weight | 135 g |
Cable length | 500 mm |
Cable type | Black ribbon (allows chaining) |
Other :
| Package contents Package weight Packaging dimensions including hanging tab Packaging dimensions excluding hanging tab (WxHxD) | Aspect Fan 4x Fan screw (12x in 3-pack) 155 g / 3pack: 408 g 123 x 192 x 30 mm / 3 pack: 123 x 192 x 87 mm 123 x 150 x 30 mm / 3 pack: 123 x 150 x 87 mm |
| EAN | Black – 7340172703310 / White – 7340172703556 / Black 3-pack – 7340172703518 |
| UPC | Black – 843276103316 / White – 843276103552/ Black 3-pack – 843276103514 |
| JAN | Black – 4537694287487 / White – 4537694288958/ Black 3-pack – 4537694288309 |
| Product code | Black – FD-F-AS1-1204 / White – FD-F-AS1-1208 / Black 3-pack – FD-F-AS1-1206 |
| Warranty | 2 Years |
