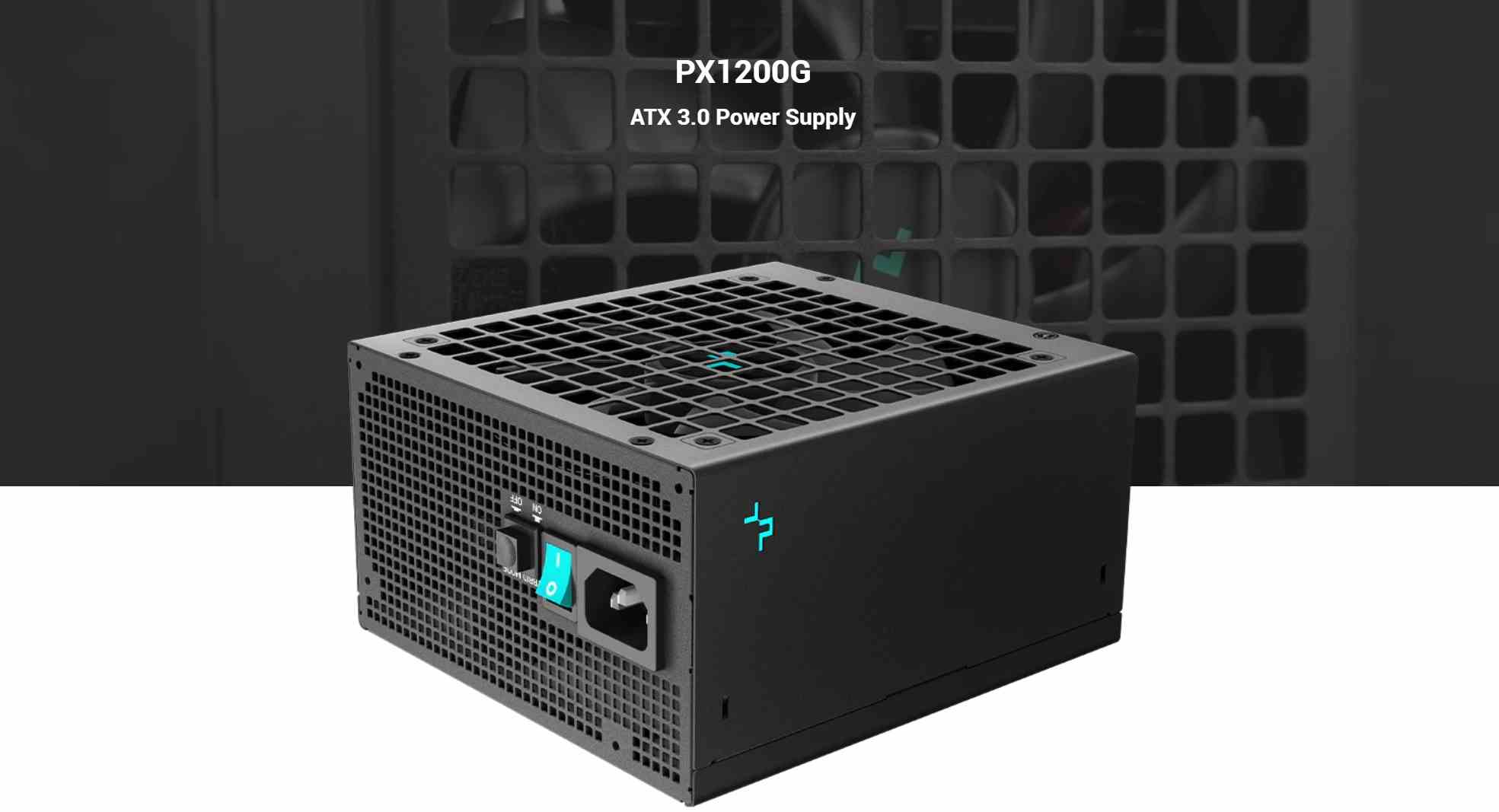

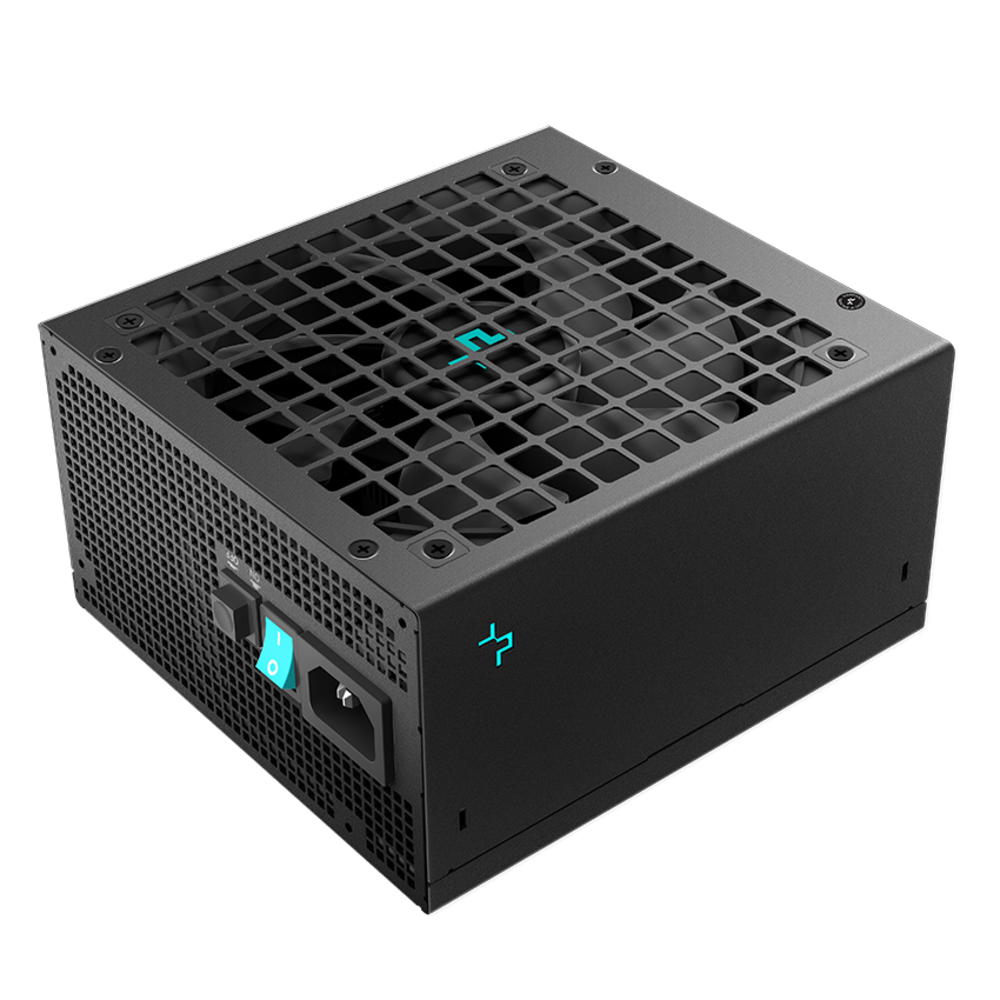

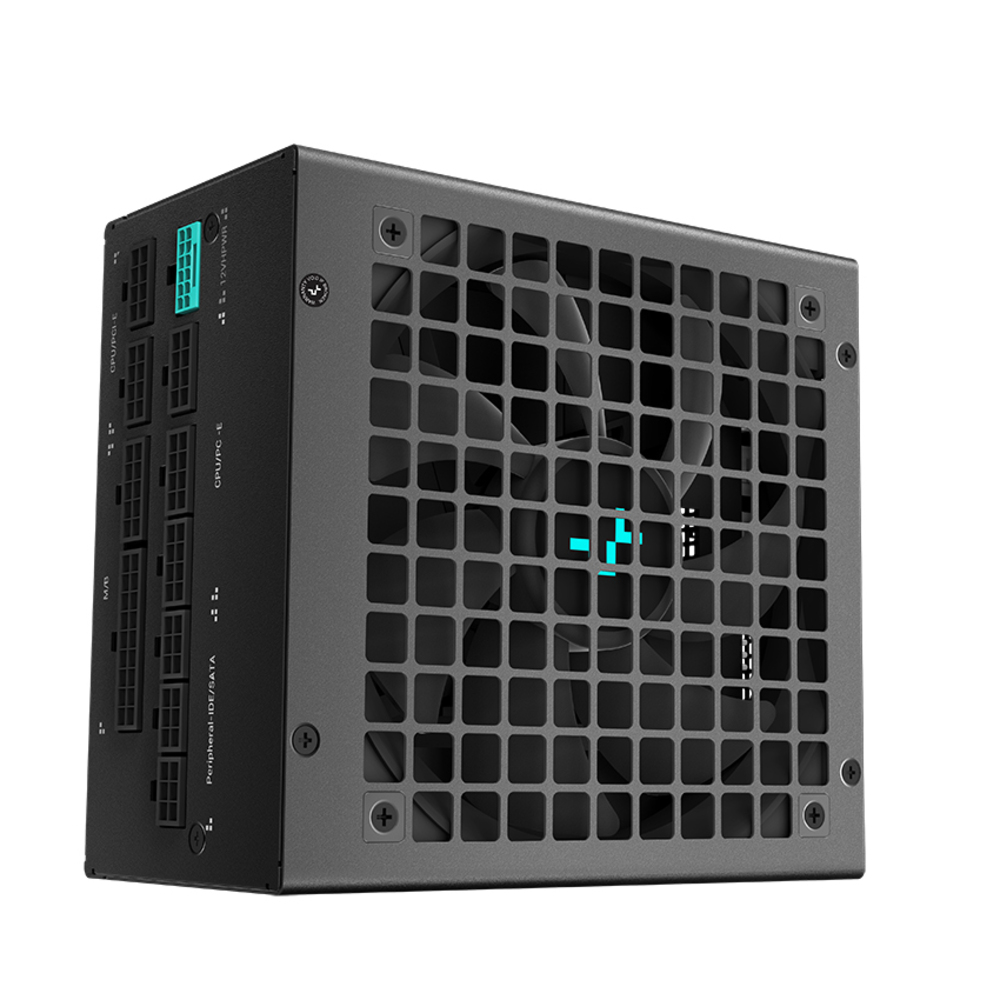

Deepcool PX1200G 1200W ATX 3.0 80 Plus Gold Power Supply
Overview :

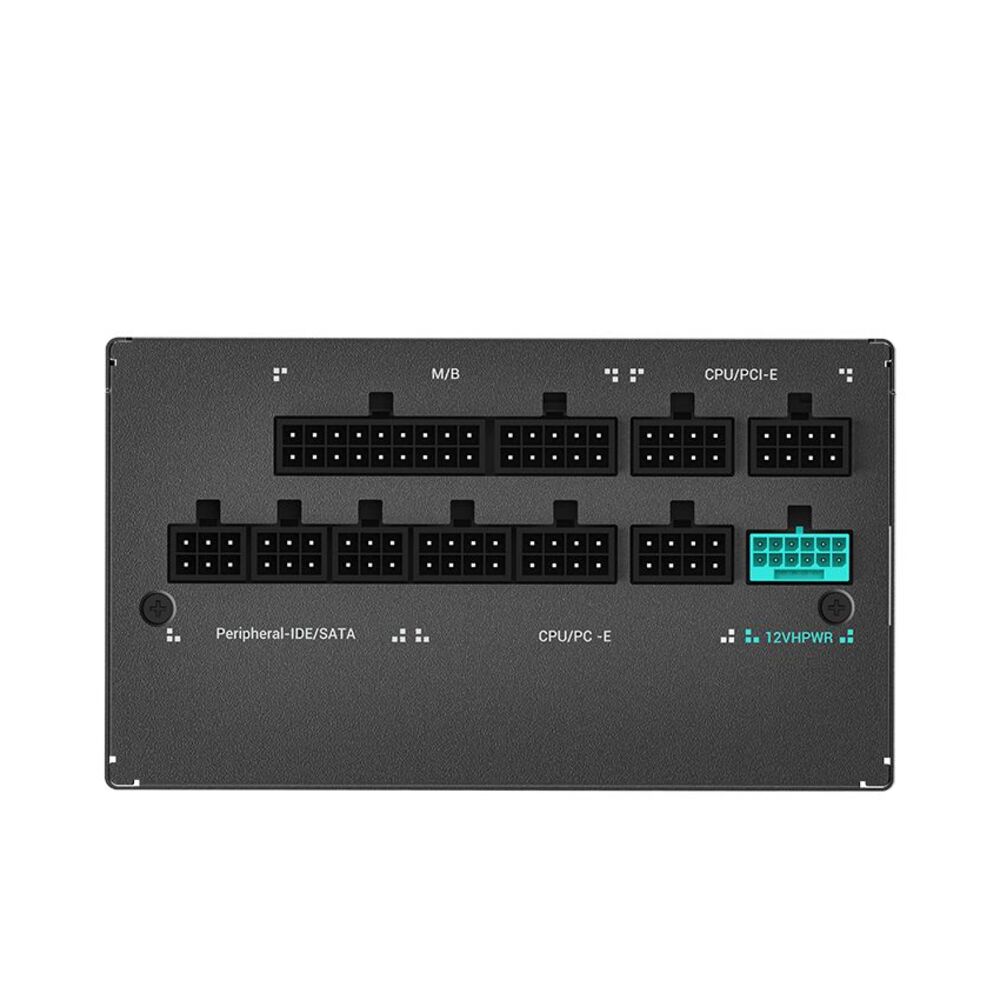

The DeepCool PX1200G 1200W ATX 3.0 is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1200G provides stable power for a wide range of components.
PAST, PRESENT, AND FUTURE
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1200G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
PREMIUM QUALITY
Solid and reliable power is provided through the use of full Japanese 105C capacitors. Due to the high quality of the PSU build, the PX1200G will operate at altitudes up to 5000 meters above sea level.
RELIABLE STABILITY
Through the use of a dual main capacitor topology,
the Deepcool PX1200G 1200W ATX 3.0 can keep the hold-up time to ≥ 16ms under full load.
PCI-E 5.0 POWER PERFECTED

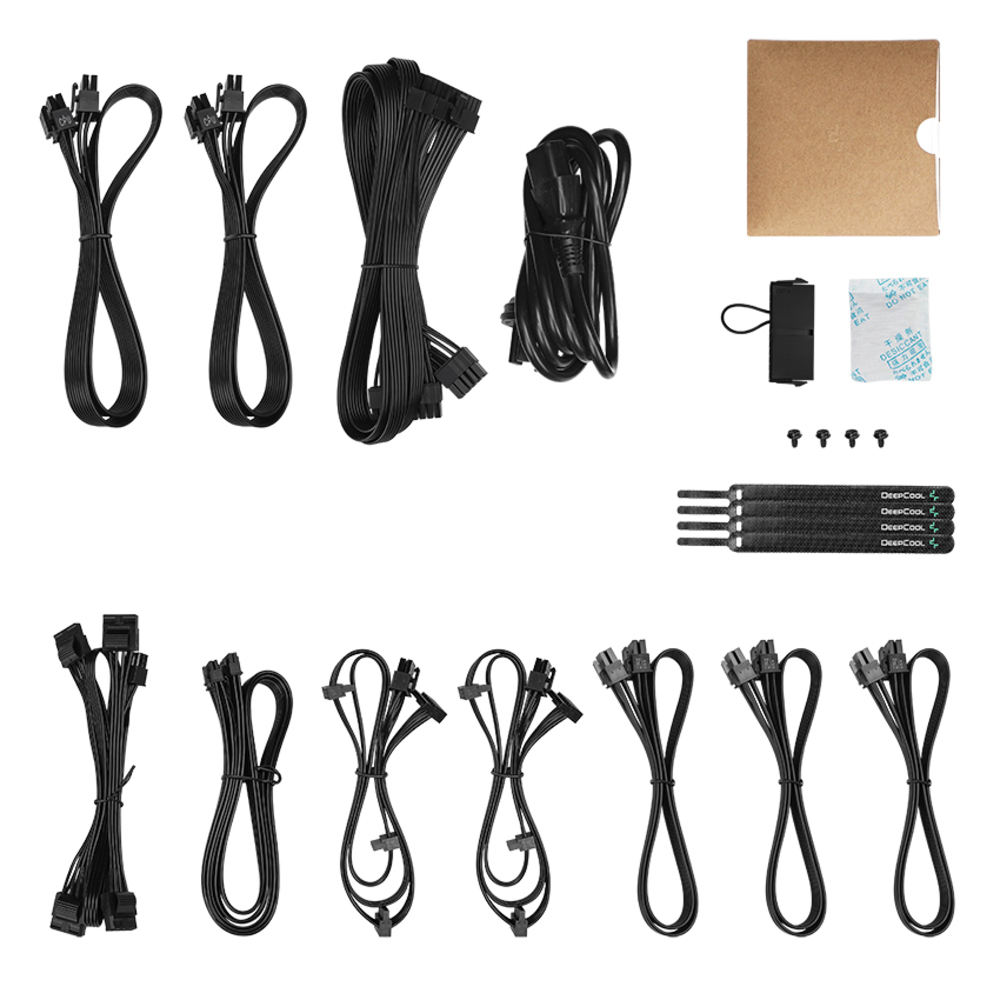

Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.
STATIC TO DYNAMIC

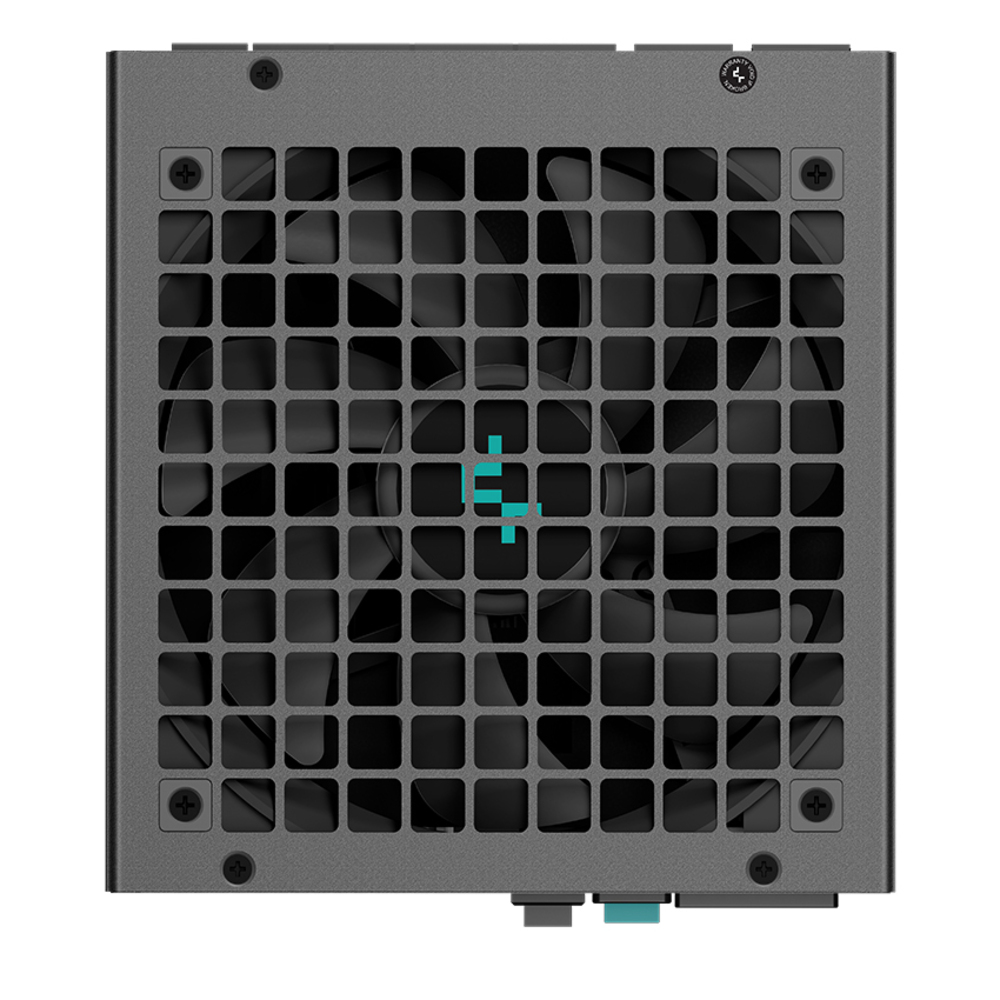

The Deepcool PX1200G 1200W ATX 3.0 comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
PEACE OF MIND
The Deepcool PX1200G 1200W ATX 3.0 includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, and UVP.
THE GLORY OF GOLD
80 Plus Gold certified to ensure 90% efficiency under typical load conditions.
Specifications :
| Type | ATX12V V3.0 |
| Product Dimensions | 150×160×86mm (W x L x H) |
| Efficiency certification | 80Plus GOLD/Cybenetics_Platinum |
| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC; |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412716891 R-PXC00G-FC0B-UK |
