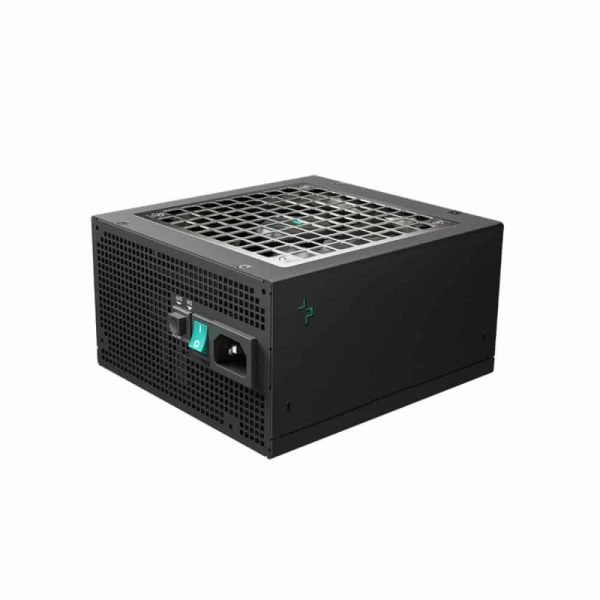

DeepCool PX1000P ATX3.0 80 PLUS Platinum 1000W Power Supply :
Overview :
HIGH-END SOLUTION
Deepcool PX1000P power supply is a newly designed power supply that meets the latest ATX 3.0 standard which supports modern power hungry GPUs with a dedicated 12VHPWR 600w high-power Cable, 2 EPS, and 5 PCI-e ports
DUAL-PLATINUM POWER
Dual certifications DeepCool PX1000P power supply meets both 80 PLUS Platinum standard and Cybenetics Platinum standard for the massive performance power efficiency to provide stable and consistent 1000w power for legacy and next-generation PC components
ALL FOR SAFETY
With the ability to provide three times the total GPU power excursion and twice the total system power excursion, random power spikes will never be an issue. Meanwhile, DeepCool PX1000P power supply includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP whiches prevents from potential risk
WORK OF QUALITY
Solid and reliable power is provided through the use of a semi-digital, interleaved PFC, Full-Bridge & LLC, and a DC to DC topology with full Japanese 105℃ dual main capacitors, the PX1000P PSU can keep the hold-up time to ≥ 16 ms under full load. Due to the high quality of the PSU build, DeepCool PX1000P power supply works at altitudes up to 5000 meters above sea level and -40℃ working temperature
QUIET & ECO-FRIENDLY DESIGN

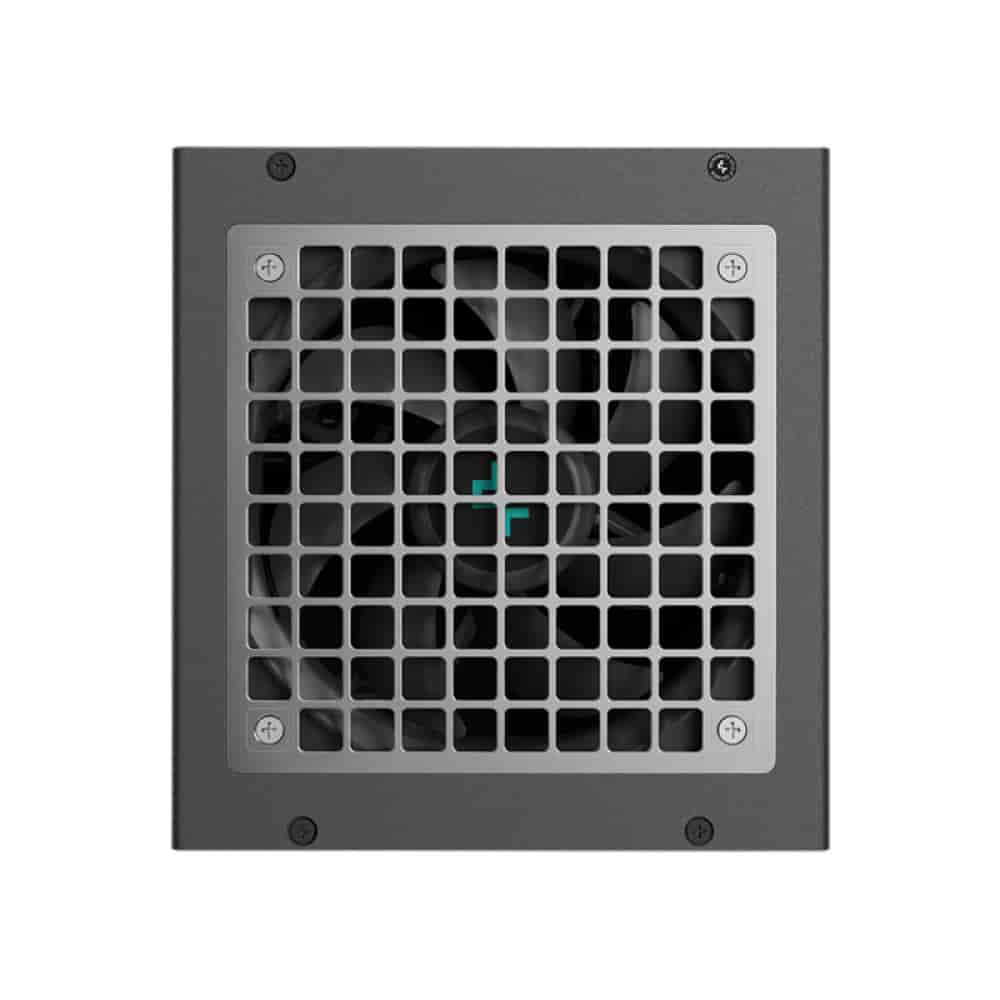

DeepCool PX1000P power supply comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the quiet 120mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold to be eco-friendly
LONG-TERM WARRANTY
DeepCool PX1000P features 12 years warranty for long-term use for the foreseeable future, any questions or technical support needs, please feel free to contact brand customer service, DeepCool always remains at your disposal
PCI-E 5.0 POWER PERFECTED
Equipped with a high-grade 105°C-resistant copper-core PCI-e Gen 5.0 12VHPWR cable, the PX-P provides up to 600W for power-hungry GPUs.
PAST, PRESENT, AND FUTURE
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, random power spikes will never be an issue. The PX1000P will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
RELIABLY STABLE
Through the use of a semi-digital, interleaved PFC, Full-Bridge & LLC, and a DC to DC dual main capacitor topology, the PX1000P can keep the hold-up time to = 16 ms under full load.
Specifications :
Type | ATX12V V3.0 |
Product Dimensions | 150×160×86mm (W x L x H) |
Efficiency certification | 80Plus Platinum/Cybenetics_Platinum |
Fan Size | 120mm |
Fan Bearing | FDB (Fluid Dynamic Bearing) |
Topology | Interleaved PFC, Full-Bridge & LLC + DC to DC |
Capacitors | Full Japan Electrolytic Capacitors |
Power Good Signal | 100-150ms |
Hold Up Time | ≥ 16ms |
Efficiency | ≥92% Under Typical Load (50% Loading) |
Protection | OPP/OVP/SCP/OTP/OCP/UVP/NLO/SIP |
Operation Temperature | 0-50°C |
Regulatory | CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/ |
Erp Regulation | ErP 2014 |
Environment Protection | WEEE/中国 RoHS/Triman |
MTBF | 100,000 Hours |

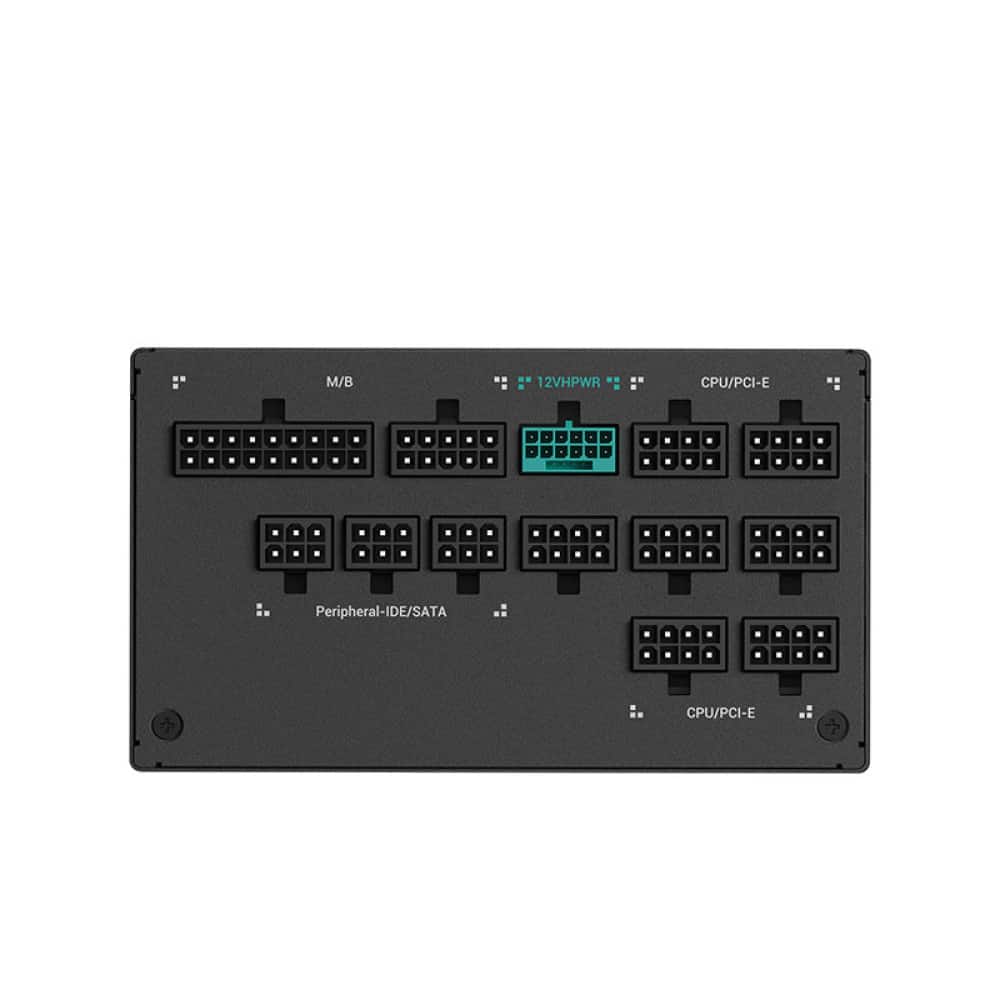

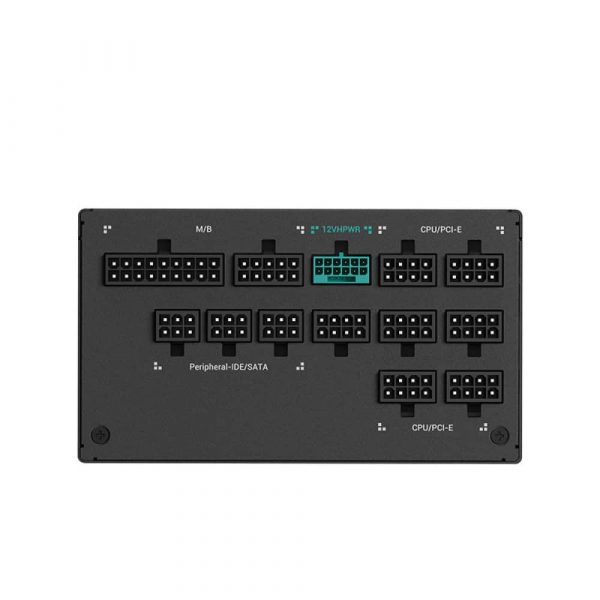

Connectors | Main 20+4Pin x1 = 1 CPU 4+4Pin x1 = 2 PCI-E 6+2Pin x1 = 5 SATA x4 = 2 12VHPWR(16Pin) x1 = 1 4Pin Peripheral x4 =1 |
Warranty | 12 Years |
