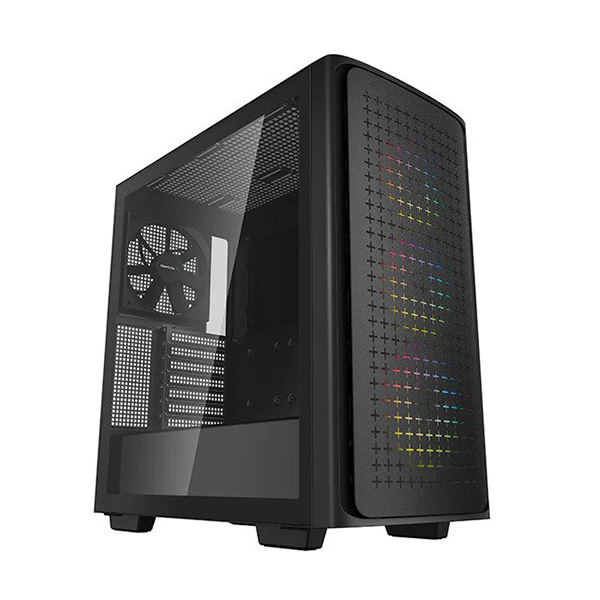

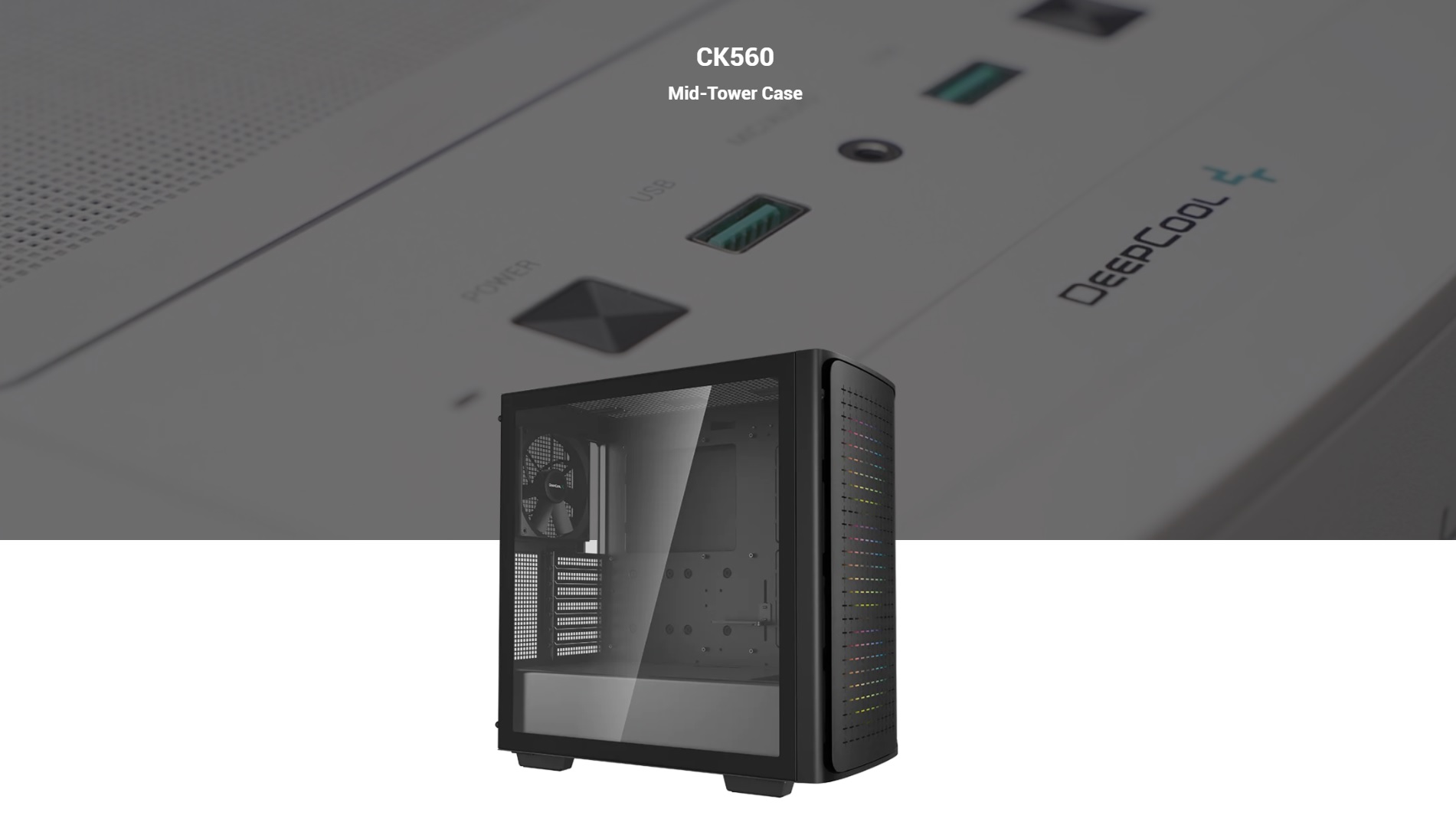

Deepcool CK560 Black Cabinet :
The DeepCool CK560 Black Mid-Tower Case offers a streamlined PC building experience with great compatibility and high-airflow performance thanks to four powerful pre-installed fans and ample ventilation throughout the chassis.
Overview :
DETAILS MAKE THE DIFFERENCE
The Deepcool CK560 Black Mid-Tower Case offers a streamlined PC building experience with great compatibility and high-airflow performance thanks to four powerful pre-installed fans and ample ventilation throughout the chassis.
Quick-Release Ventilated Front Panel
A patterned front panel introduces ample ventilation and airflow for better cooling performance. The solid steel panel is magnetically attached for easy access.
Wide and Spacious Interior
Maximize potential with flexible configurations that meet the needs of any system setup.
With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CK560 provides ample space without being too bulky.
Superb Air Cooling
Three pre-installed DeepCool 120mm airflow-focused ARGB fans and one 140mm DeepCool performance fan help concentrate cooling power for lower temperatures while keeping noise minimal.
Quickly and easily customize the ARGB fans with either preset lighting effects or through a 5V header for motherboard synchronization.
Choose Your Cooling Configuration
The Deepcool CK560 Black has great cooling capacity with up to 6x 120mm or 5x 140mm cooling fans and liquid cooling support for 280/360mm radiators through the front panel and 280/240mm radiators on the top panel.
Convenient Storage Options
Install up to 2x 2.5in storage drives directly onto the motherboard tray with quick-release push-pins and 2x 3.5in HDDs on a tool-less tray design for extra simplicity.
Modern Front I/O
Features two USB 3.0 ports, a single USB 3.1 Type-C port, and a combination audio jack for the most important connections up close.
Deepcool CK560 Black has a dedicated RGB control button offers multiple preset lighting effects for the included ARGB fans.
Specifications :
| Product Dimensions | 456×230×471mm(L×W×H) |
| Net Weight | 8Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
| Front I/O Ports | USB3.0×2、Audio×1、TypeC×1 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 2 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Front: 3×120mm |
| Rear: 1×140mm | |
| Fan Support | Front: 3×120 / 2×140mm |
| Top: 2×120 / 2×140mm | |
| Rear: 1×120 / 1×140mm | |
| Radiator Support | Front: 120/140/240/280/360mm |
| Top: 120/140/240/280mm | |
| Rear: 120/140mm | |
| CPU Cooler Height Limit | 175mm |
| GPU Length Limit | 380mm |
| Power Supply Type | ATX PS2 （maximum length: 160mm） |
| EAN Code | 6933412714842 |
| PN Code | R-CK560-BKAAE4-G-1 |
