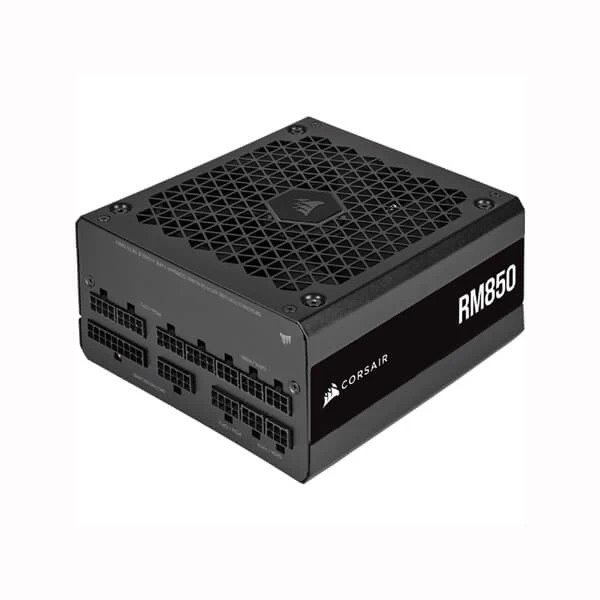

Corsair RM850 80 Plus Gold Power Supply:
Overview:
READY FOR MODERN STANDBY
Corsair RM850 80 Plus Gold Modern Standby is an upcoming feature for Windows 10 that vastly improves your PC’s sleep and wake functionality.
The technology allows your system to wake from sleep more than twice as fast, as well as maintain a network connection during sleep to continue downloading updates and receive emails and notifications – just like your phone. Best of all, it does this with less overall power consumption.
80 PLUS GOLD CERTIFIED
Corsair RM850 80 Plus Gold The RM Series delivers power at up to 90% efficiency, lowering energy consumption, noise, temperatures, and your power bill.
105°C-RATED CAPACITORS
Corsair RM850 80 Plus Gold Using industrial-grade electrolytic capacitors, RM Series power supplies offer the unwavering power and long-term reliability you demand from a CORSAIR power supply.
ZERO RPM FAN MODE
Corsair RM850 80 Plus Gold The RM Series’ cooling fan doesn’t spin until you need it, for near-silent operation at low and medium loads.
TUNED FOR LOW NOISE OPERATION
A 135mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load. When at low and medium loads, the fan stops spinning entirely until it’s needed, resulting in virtually silent operation.
COMPACT SIZE
A 160mm-long casing ensures an easy fit in almost all modern enthusiast PC cases, providing more space for cable management and airflow in your chassis.
MULTIPLE-GPU READY
PCI-E connectors to power dual or triple (RM850 only) GPUs for your most ambitious PC gaming builds.

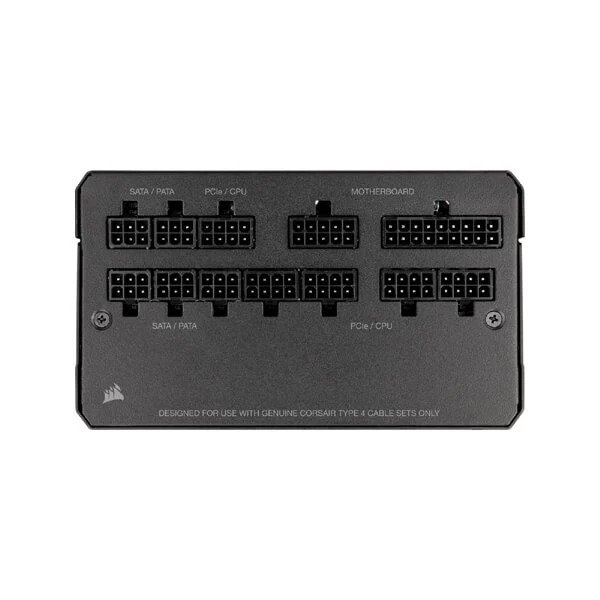

FULLY MODULAR CABLES
Use only the cables you need for quick and easy installation, simplifying routing and cable management. Store your unused cables in the included cable bag.
TEN-YEAR WARRANTY
CORSAIR provides a ten-year warranty on all RM Series power supplies; your guarantee of reliable operation that will last across several system builds. If you need help, CORSAIR customer service and tech support are always on hand.
Specifications:
Model | CP-9020235-IN |
ATX Connector | 1 |
Adjustable Single/Multi 12V Rail | No |
ATX12V Version | v2.52 |
Continuous output rated temperature C | 50°C |
Continuous power W | 850 Watts |
Fan bearing technology | Rifle Bearing |
Fan size mm | 135mm |
MTBF hours | 100,000 hours |
Multi-GPU ready | Yes |
80 PLUS Efficiency | Gold |
PSU Form Factor | ATX |
Zero RPM Mode | Yes |
iCUE Compatibility | No |
Cable Type | Low-Profile, All Black |
Dimensions | 150mm x 86mm x 160mm |
EPS12V Connector | 2 |
EPS12V Version | v2.92 |
Floppy Connector | 0 |
Intel C6C7 sleep state compatible | Yes |
Modular | Fully |
PCIe Connector | 4 |
SATA Connector | 12 |
PATA Connector | 4 |
Modern Standby Compatible | Yes |
Protection Circuits | OVP (Over Voltage) UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power) |
Warranty | 10 Years |
