Corsair Obsidian 450D Black Mid Tower Cabinet :
Overview :
MID-TOWER SIZE, WITH A ROOMY INTERIOR THAT’S OPTIMIZED FOR AIRFLOW.

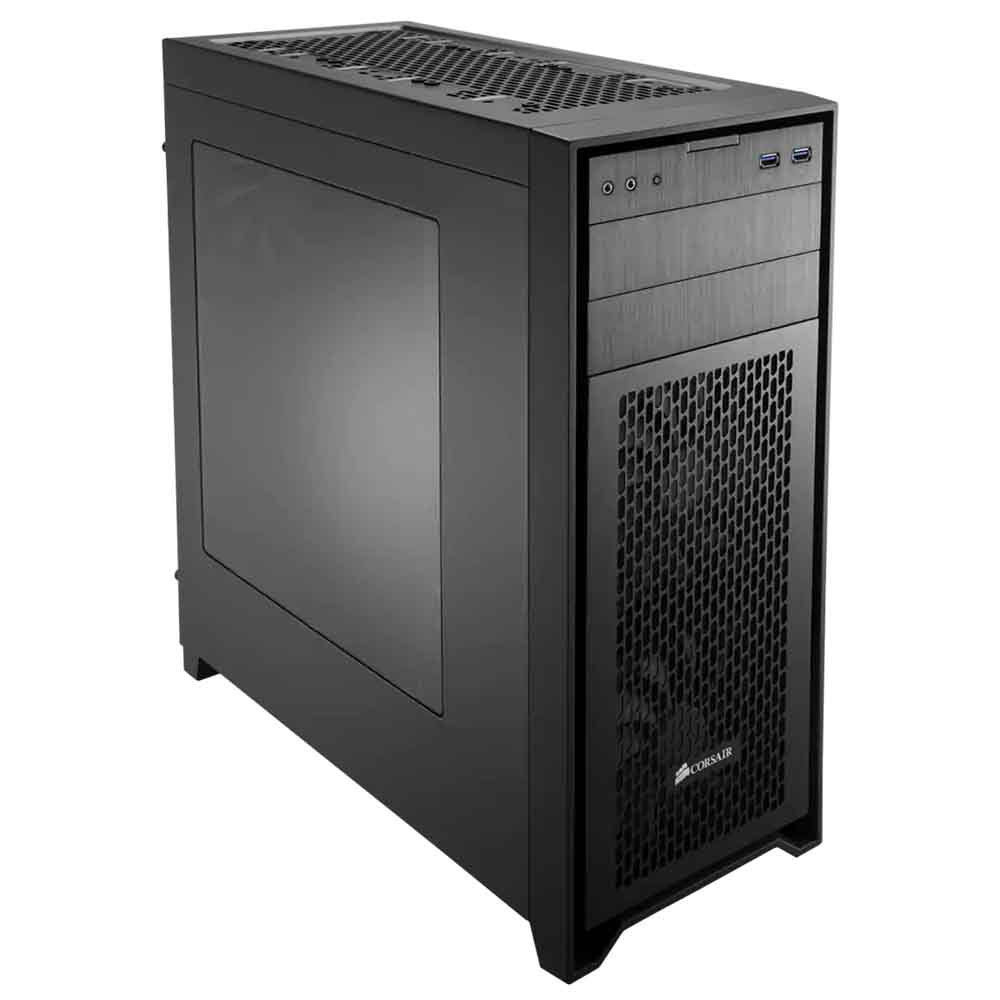

Corsair Obsidian 450D has an elegant brushed aluminum front panel and a solid steel body, with an interior that’s optimized for efficient, high-volume airflow. But don’t let its mid-tower size fool you – the Corsair Obsidian 450D can also house some serious watercooling gear. The included dual front AF140L intake fans provide direct GPU cooling, and there’s a total of seven fan mounts for your extremely high volume airflow projects. All air intakes are protected with removable dust filters.

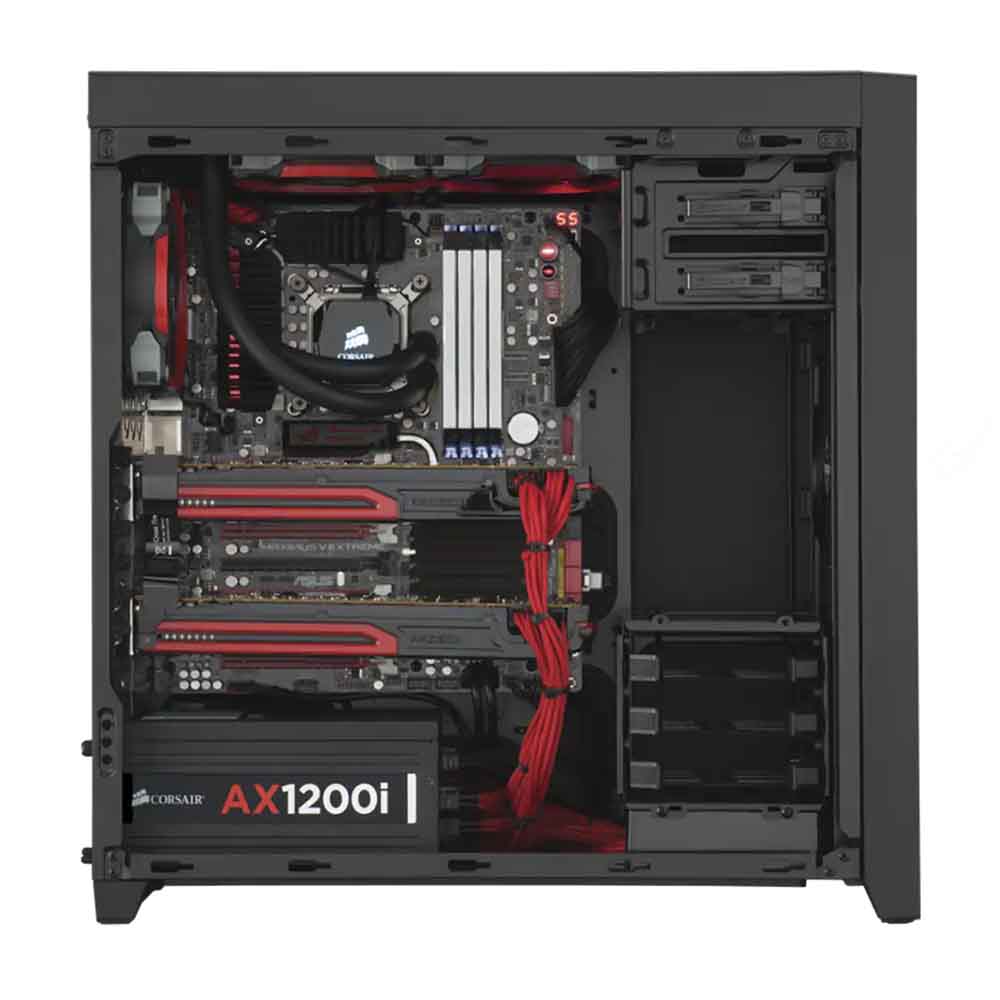

The interior is designed for superior cooling efficiency, with a modular removable drive cage system and dual SSD bays that mount behind the motherboard tray and out of the airflow path. The extra-large, flush mounted side window puts your system-building expertise on display while keeping with the sleek and refined Obsidian Series design.

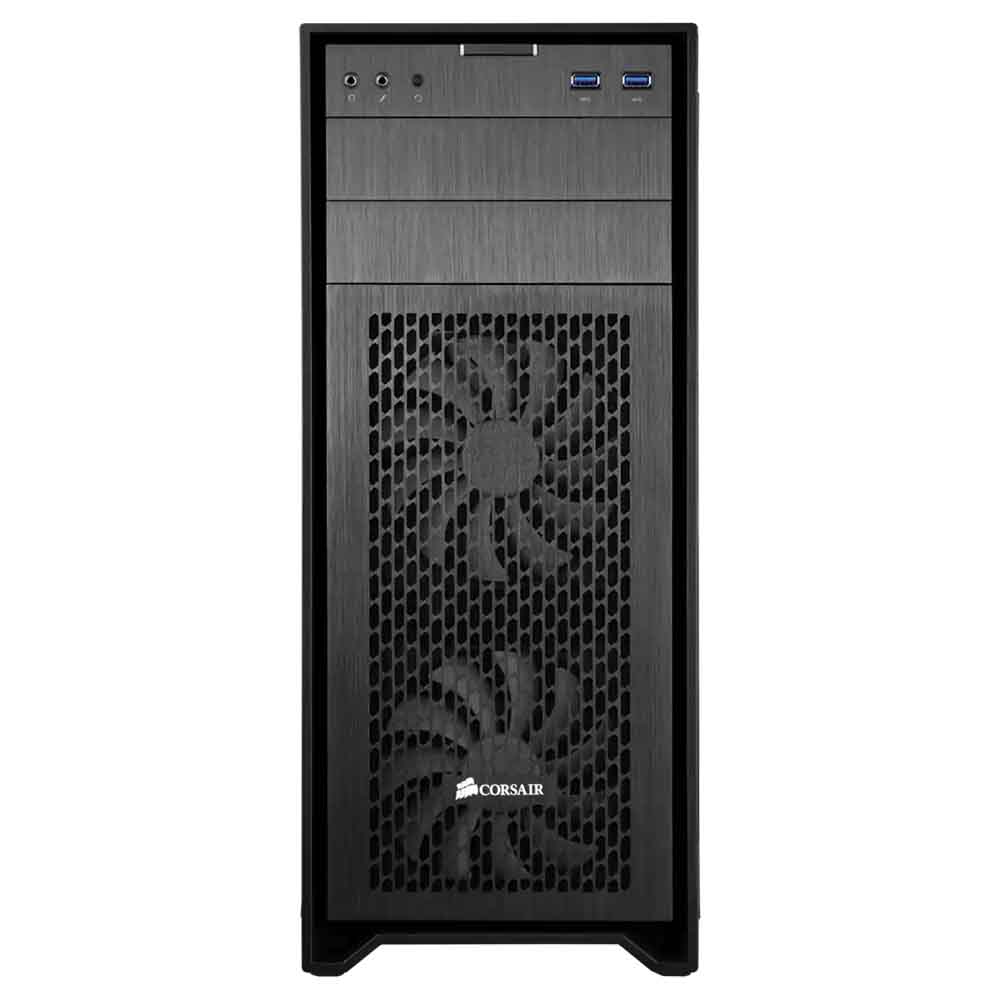

DUAL AF140L INTAKE FANS WITH DIRECT AIRFLOW PATH TO GPUS
The custom-designed, Corsair-exclusive AF140L 140mm intake fans deliver effective airflow with less noise and turbulence. Air intake passes directly across your GPUs for efficient heat dissipation.
SEVEN FAN MOUNTING POINTS FOR HIGH-AIRFLOW AND WATERCOOLING APPLICATIONS

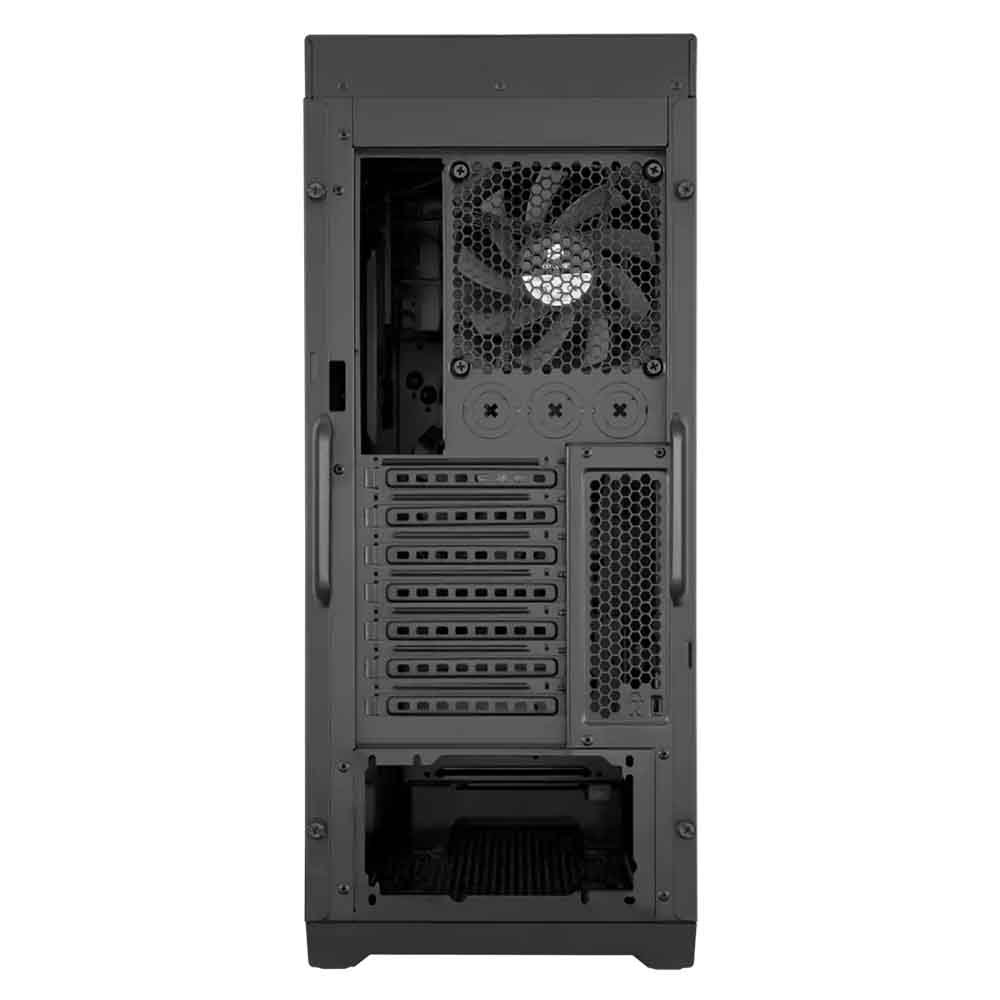

If your high-performance system build requires high-performance cooling, the Corsair Obsidian 450D is an ideal platform. The mounts support front, bottom and rear radiators for flexible watercooling installation options, or fans for superior ventilation.
MODULAR DRIVE CAGE SYSTEM WITH LATERAL SSD BAYS

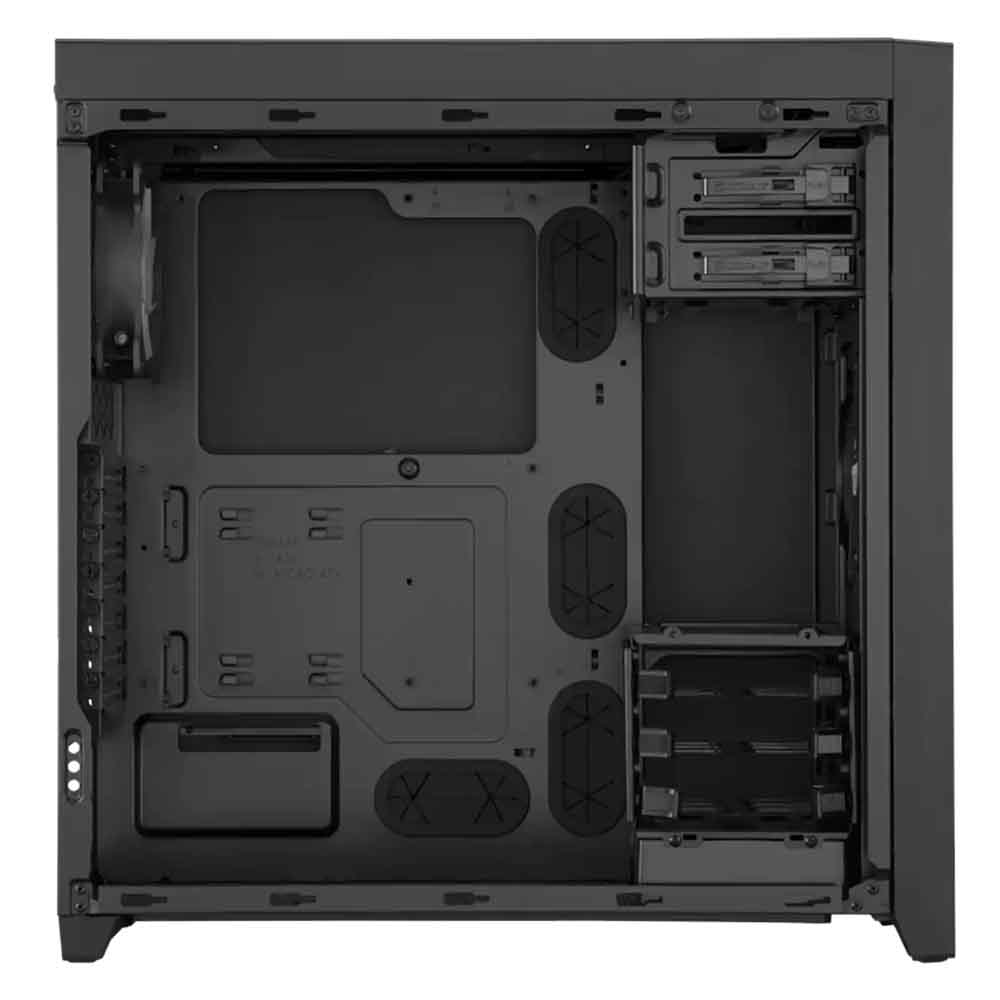

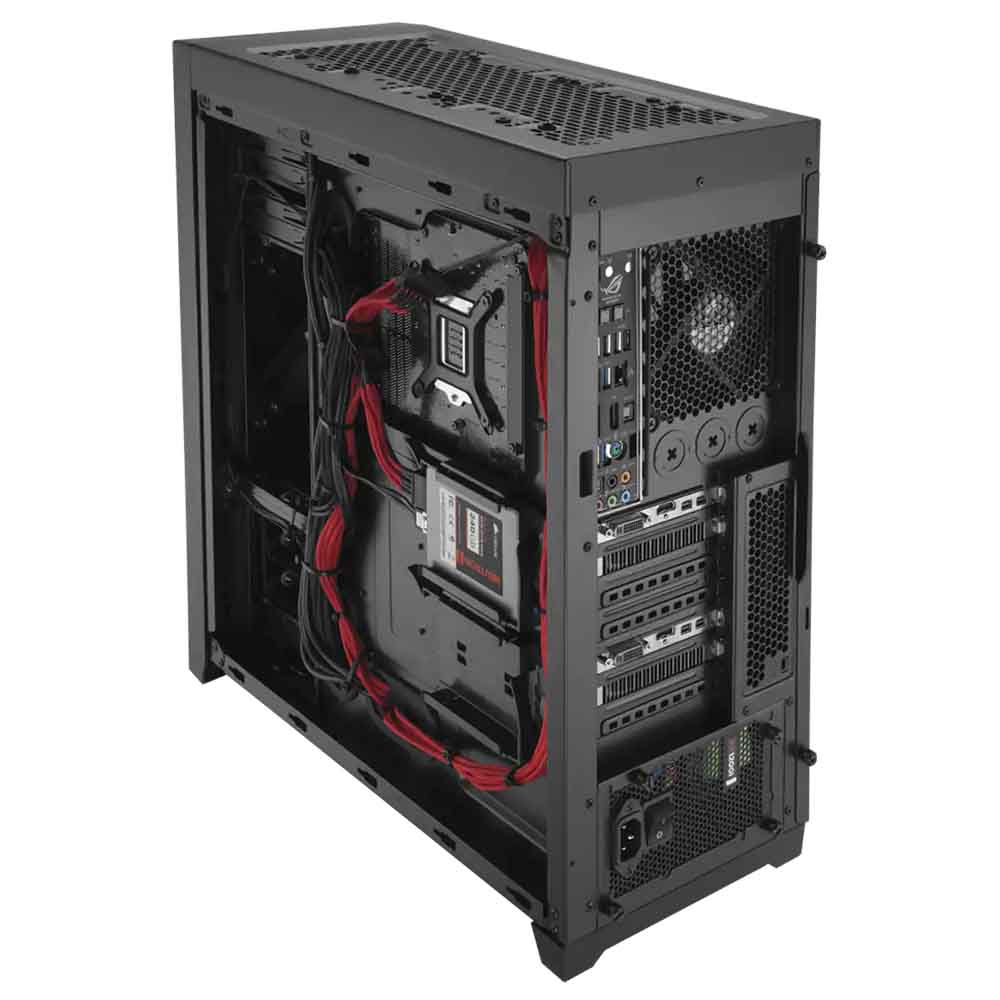

Mounting the SSDs under the motherboard uses interior space efficiently and gets your solid-state storage out of the airflow path. The removable drive cages allow you to use only the space you need for your storage requirements.
BLACK ANODIZED BRUSHED ALUMINUM FASCIA
The elegant aluminum front fascia is an Obsidian Series hallmark. It’s durable and resistant to scratches and fingerprints.

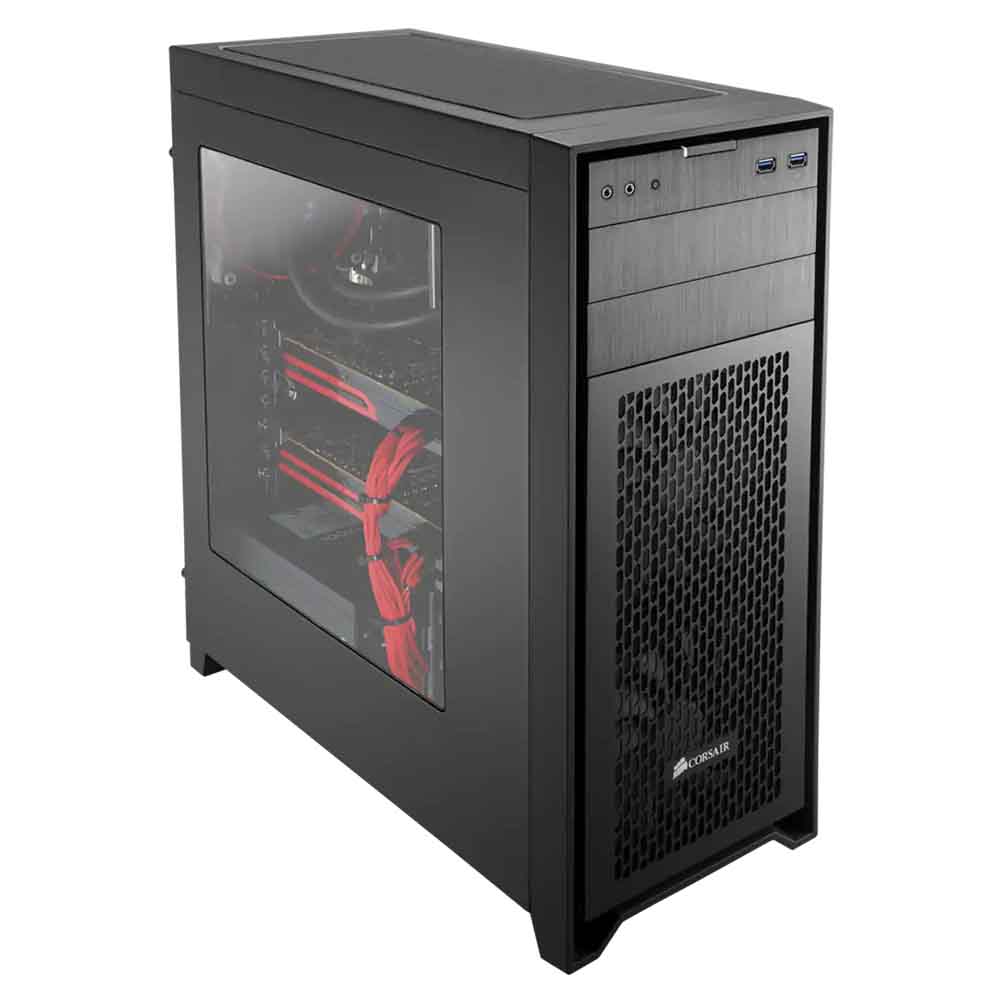

EXTRA-LARGE, FLUSH-MOUNT SIDE WINDOW
The clear acrylic window lets you show off your work in Corsair Obsidian 450D.
Specifications :
| Case Dimensions (mm) | 494mm x 210mm x 497mm |
|---|---|
| Maximum GPU Length (mm) | 430mm |
| Maximum PSU Length (mm) | 200mm |
| Maximum CPU Cooler Height (mm) | 165mm |
| Expansion Slots | 7 |
| Case Drive Bays | (x2) 5.25in (x2) 2.5in (x3) Combo 3.5in/2.5in |
| Form Factor | MID TOWER |
| Case Windowed | Acrylic |
| Case Warranty | 2 Year |
| Corsair Link Enabled | No |
| Case Material | Aluminum, Steel |
| Radiator Compatibility | 120mm; 240mm; 280mm; 360mm |
| Compatible Corsair Liquid Coolers | H55, H60, H75, H80i, H90, H100i, H105, H110 |
| Weight | 7kg |
| Drive Bays 3.5″ | 3 |
| Drive Bays 2.5″ | 5 |
