Cooler Master V Platinum 1600 V2 1600Watt ATX 3.1 80 Plus Platinum Power Supply :
Features :
- Dual 40 series GPU support
- ATX 3.1 support & two durable 90° 12V-2×6 cables
- Advanced heat dissipation
- Ultra-quiet Mobius fan
- 80 Plus Platinum certification
- 12-year warranty
Overview :
Quietly Supreme
Cooler Master V Platinum 1600 V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency, backed by a 12-year warranty.
Silent fan performance with a zero speed mode
A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM.
Quietly Supreme
Cooler Master V Platinum 1600 V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency, backed by a 12-year warranty.

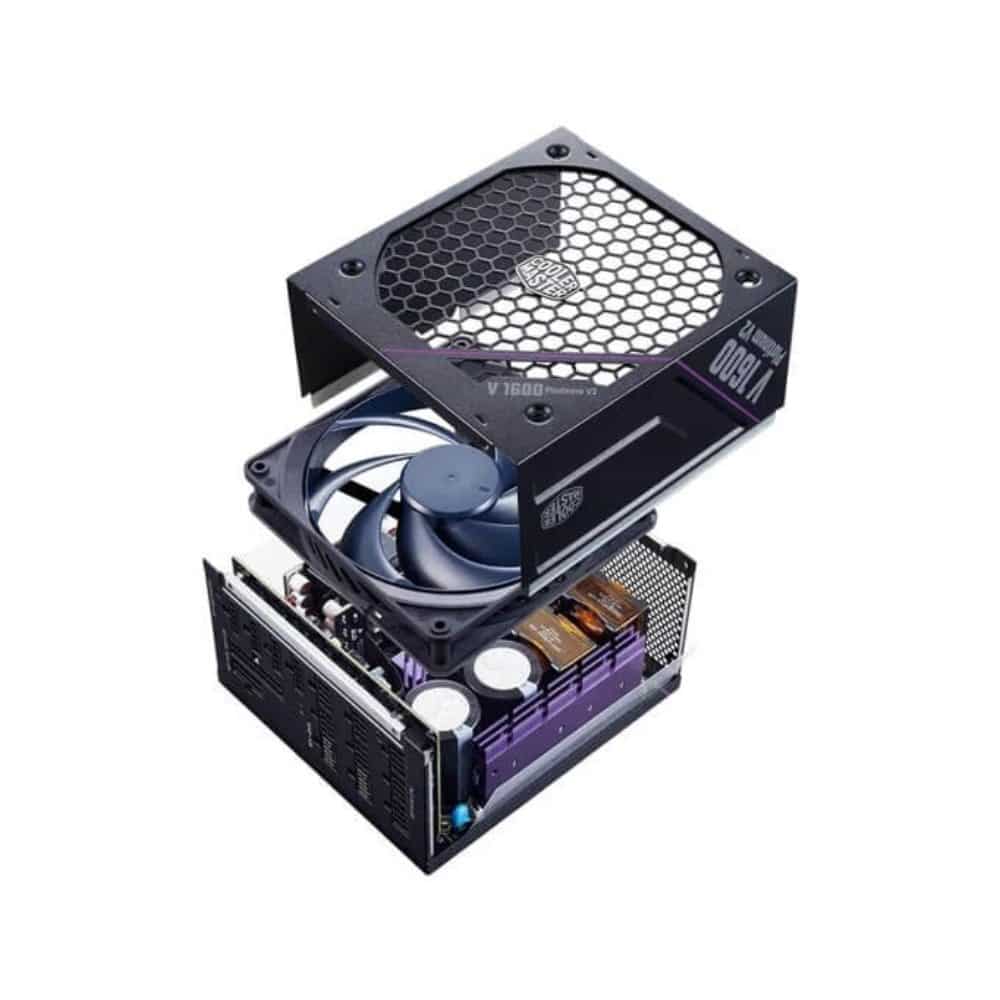

Advanced heat dissipation
Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.
Mobius fan featuring a Ring Blade Design (RBD) for advanced heat dissipation
Cooler Master V Platinum 1600 V2 An angled inner frame rim with chamfered side vents boosts airflow draw, maximizing force induced air pressure and diminishing dead air.
Fully Modular Cabling
A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.
PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
Specifications :
| Model | Cooler Master V Platinum 1600 V2 |
| ATX Version | ATX 12V V3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 16-8A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 135mm |
| Fan Bearing | LBD |
| Fan Speed | 2400±10% RPM |
| Efficiency | ≥ 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 – 150 ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 Hours |
| Protections | OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region’s requests.) |

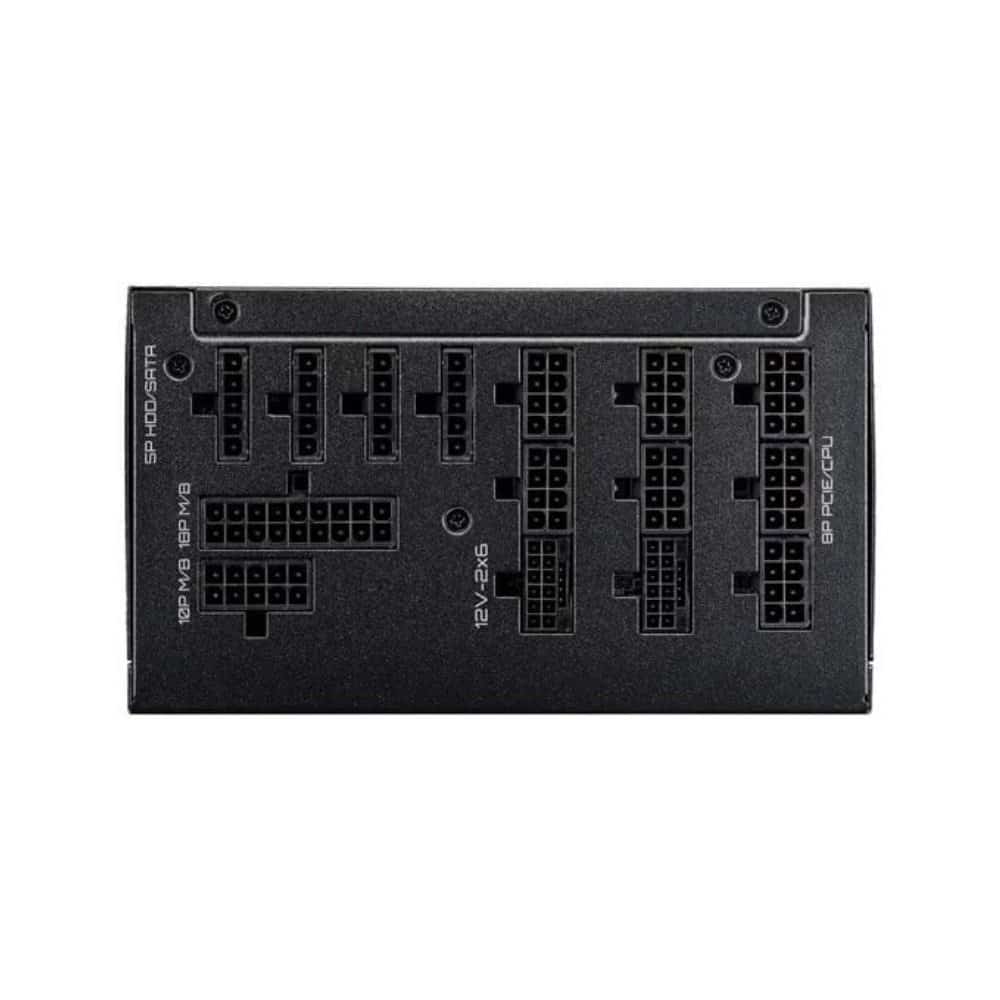

| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 16 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 5 |
| 12V-2×6 Connectors | 2 |
| Series | V Platinum Series |
| Modular | Full Modular |
| Wattage | Above 750W |
Form Factor | ATX |
| Watts | 1600W |
| Warranty | 12 years |
