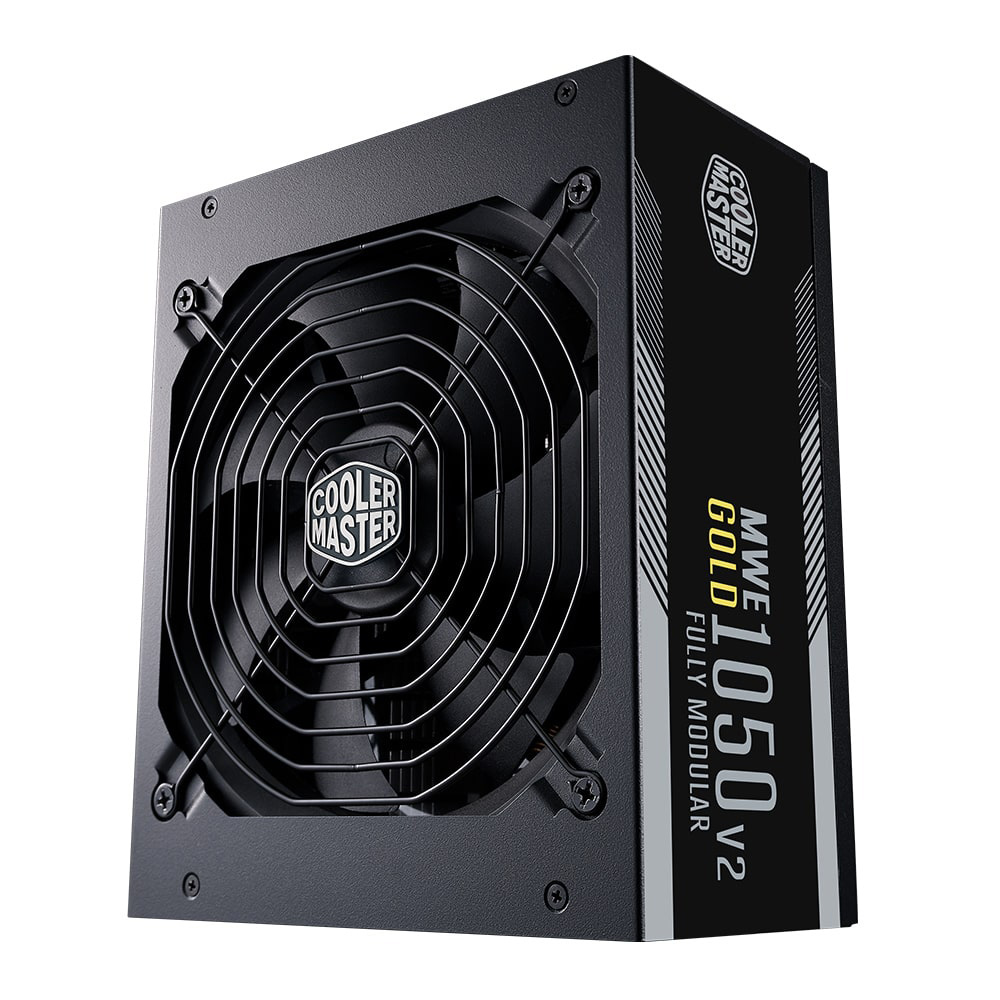

Cooler Master MWE 1050 V2 ATX 3.0 80 Plus Gold Power Supply :
Cooler Master MWE 1050 V2 ATX 3.0 brings optimal performance for a classic configuration. The Cooler Master MWE 1050 V2 ATX 3.0 power supply features virtue of 80 PLUS Gold efficiency, fully modular cabling, and a 140mm silent fan, fully support ATX3.0 with 600W 12VHPWR connectors. Together, Cooler Master provides the power supply complete with high efficiency and reliability to improve your PC experience.
Highly Efficient Performance : The 80 PLUS Gold certification guarantees a minimum efficiency of 90%.
140mm FDB Fan : Cooler Master MWE 1050 V2 ATX 3.0 has delivered to a premium high air flow and long life bearing fan, offering more effective cooling performance.
Fully support ATX3.0 : Fully ATX 3.0 and PCIe Gen 5.0 compatible. The compacted 12+4 pin 12VHPWR connector supports up to 600W of power to a GPU through a single cable.
100% Japanese Capacitors : Implementing the highest quality of Japanese capacitors to increase efficiency and reduce ripple noise.

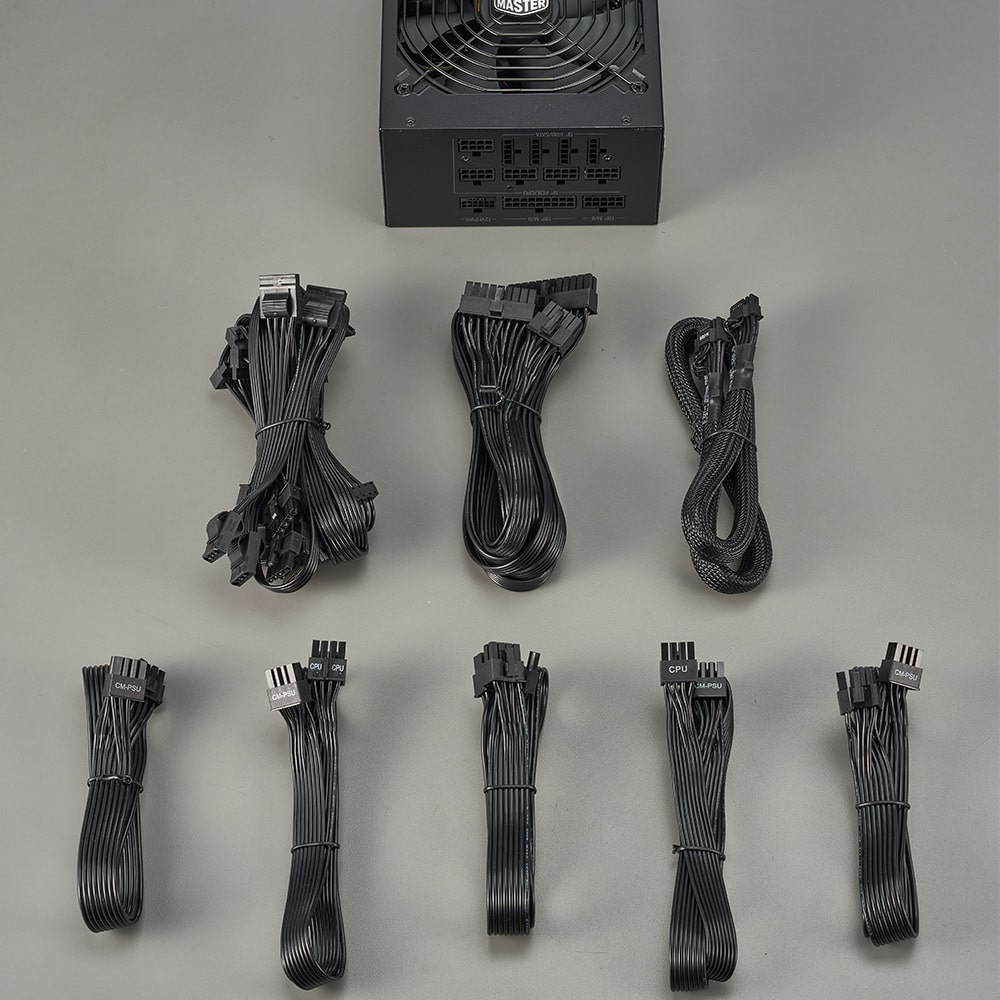

Fully Modular Cabling : Cooler Master MWE 1050 V2 ATX 3.0 comes with fully modular flat, black cables for increased airflow.
10 Year Warranty : Cooler Master MWE 1050 V2 ATX 3.0 model comes with a 10 year factory warranty from purchase date.
|ATX VERSION||ATX Rev. 3.0|
|INPUT VOLTAGE||100 – 240V|
|INPUT FREQUENCY||50 – 60Hz|
|DIMENSIONS (L X W X H)||180 x 150 x 86 mm|
|EFFICIENCY||≥ 90% @ Typical Load|
|80 PLUS RATING||80 PLUS Gold|
|ERP 2014 LOT 3||Yes|
|POWER GOOD SIGNAL||100 – 150 ms|
|HOLD UP TIME||≥ 16ms at 100% Load|
|PROTECTIONS||OVP / OPP / SCP / OCP / UVP / OTP /|

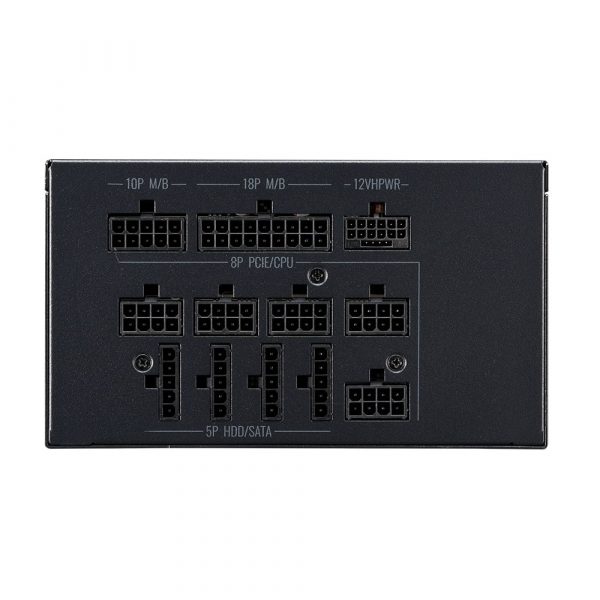

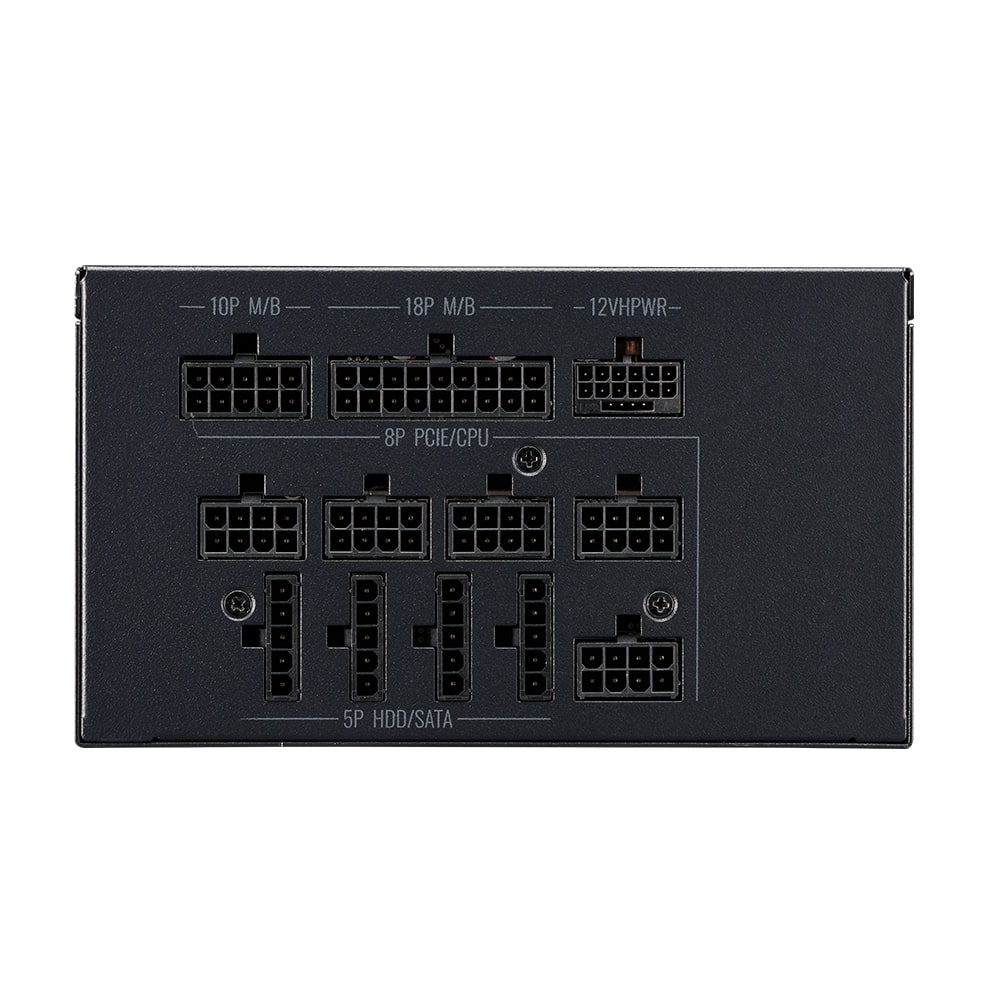

|ATX 24-PIN CONNECTORS||x1 = 1x (650mm)|
|EPS 4+4 PIN CONNECTORS||x1 = 1x (650mm)|
|EPS 8 PIN CONNECTOR||x1 = 1x (650mm)|
|SATA CONNECTORS||x12 = 3x (500+120+120+120mm)|
|PERIPHERAL 4-PIN CONNECTORS||x4 = 1x (500+120+120+120mm)|
|PCI-E 6+2 PIN CONNECTORS||x3 = 3x (550mm)|
