Cooler Master MB520 Mesh White ARGB Cabinet :
Cooler Master MB520 Mesh White is the ideal chassis for both novice and experienced gamers alike, providing users multiple options in case design to satisfy different needs. Whether you place upmost value on system performance and high quality gaming experiences, or dazzling aesthetics and an outlook that stands out, Cooler Master MB520 Mesh White has something in for you. Pre-installed with three 120mm ARGB fans, your system is brought to life with stunning lighting effects, completely customizable to match your theme or preference. Additional mechanical upgrades such as a removable top panel and robust dust filter ensure a pleasant, hassle-free installation experience.

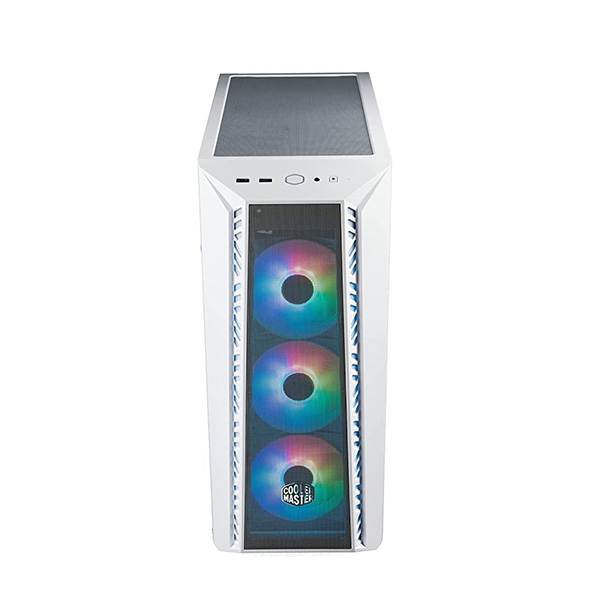

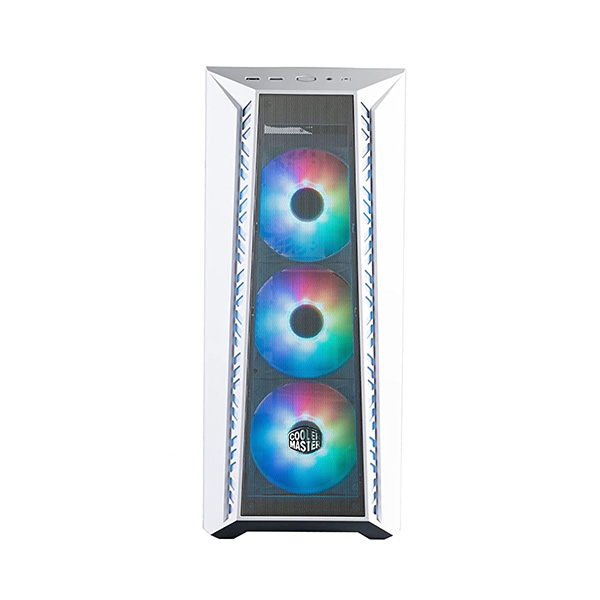

FineMesh Performance Front Panel – Cooler Master MB520 Mesh White has large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
Three CF120 ARGB Fans Included – Cooler Master MB520 Mesh White have Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions. The included ARGB controller allows users to manage systems lighting independently from the hardware configuration if needed.
Removable Top Panel – The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

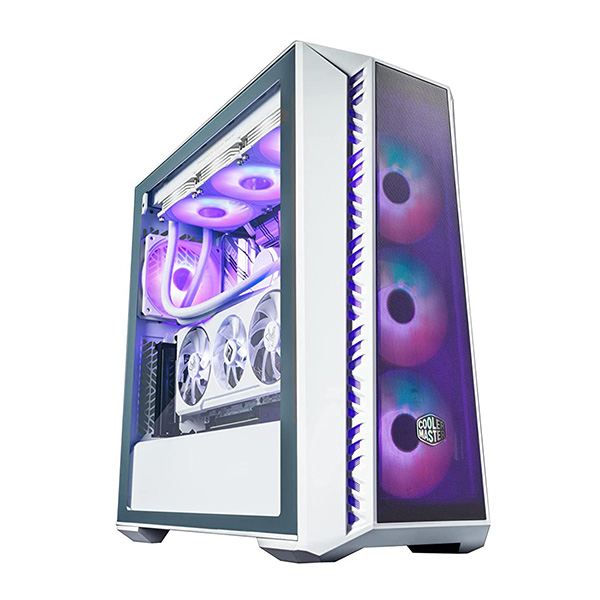

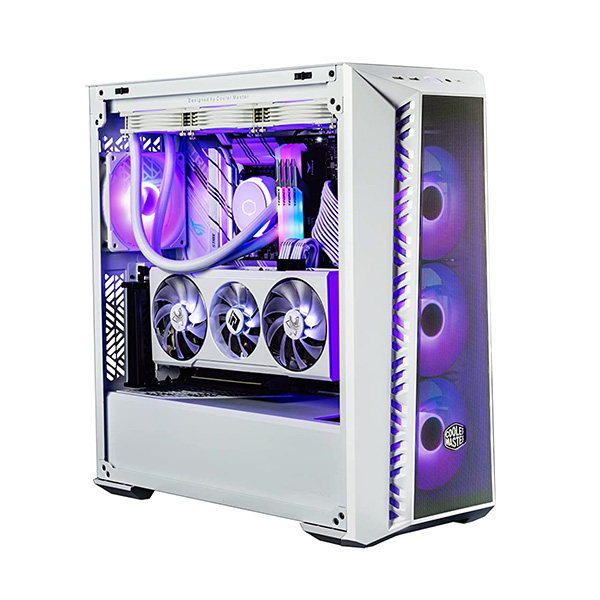

Screwless & Tool-Free TG Side Panel – The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
Versatile Cooling Options – Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

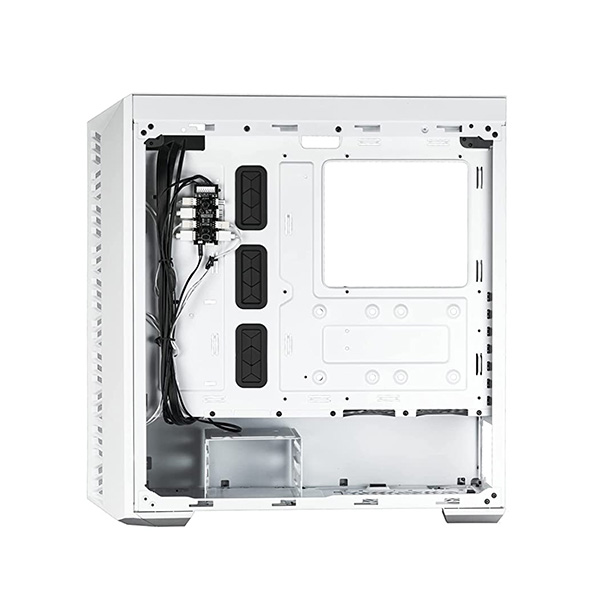

Removable HDD cage – The HDD cage is completely removable for improved access during assembly and system upgrades.
Upgraded Removable Dust Filter Bracket – The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
|Product Name||MasterBox 520 Mesh White|
|Materials||Exterior||Mesh, Steel, ABS Plastic, Tempered Glass|
|Left Side Panel||Tempered Glass|
|Dimensions (L x W x H)||incl. Protrusions||502 x 210 x 498mm|
|Body Size||443 x 210 x 498mm|
|Motherboard Support||Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX*|
(*up to 12″ x 10.7″ motherboards, may impact cable management feature)
|Drive Bays||5.25“ ODD||0|
|I/O Panel||USB Ports||1x USB 3.2 Gen1 Type-A|
|1x USB 3.2 Gen2 Type-C|
|Audio In / Out||1x 3.5mm Headset Jack (Audio + Mic)|
|Other||1x Reset/ARGB Button|
|ARGB Control||ARGB/PWM Hub|
|Pre-installed Fan(s)||Front||3x 120mm ARGB Fan|
|Fan Support||Front||3x 120mm / 2x 140mm|
|Top||3x 120mm / 2x 140mm|
|(recommended maximum thickness – 55mm)|
|(recommended up to 170mm)|
|Dust Filters||Front, Top, Bottom|
|Power Supply Support||Bottom mount, ATX PS2|
