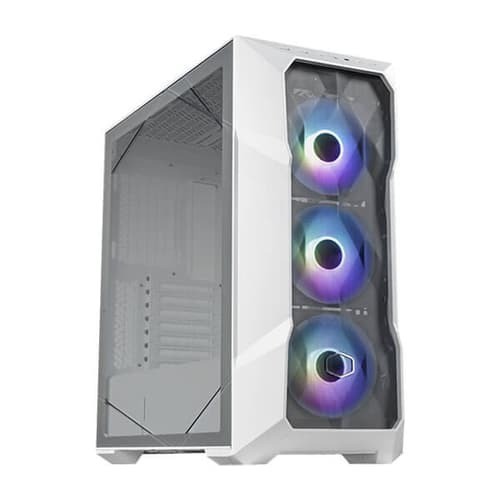

MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.
Cooler Master MasterBox TD500 Mesh V2 White ARGB Cabinet :
- Front Panel with Polygonal FineMesh
- Included are three CF120 ARGB fans.
- Support for USB 3.2 Gen 2 Type C
- Tool-Free Crystalline TG Side Panel
- Removeable PSU Shroud Cover
- With ARGB Controller
- Top Panel is Detachable
- enclosure for removable HDDs

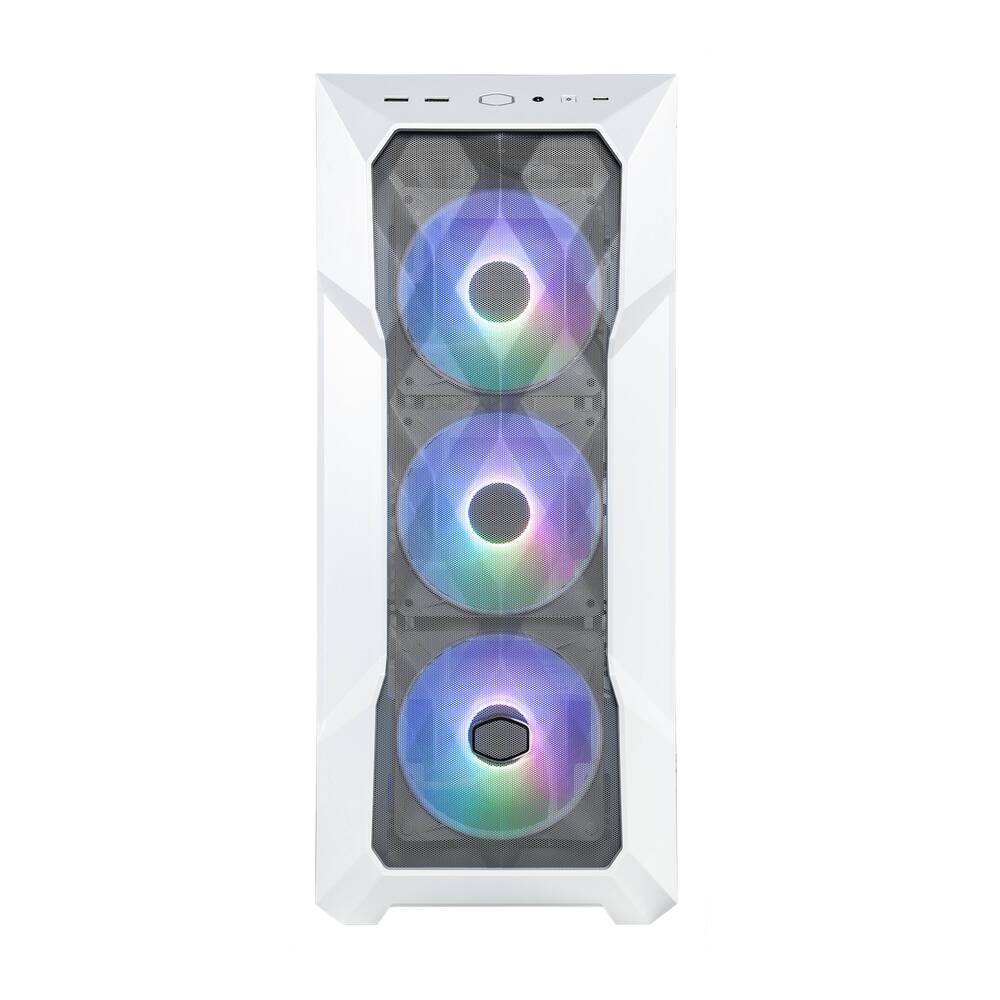

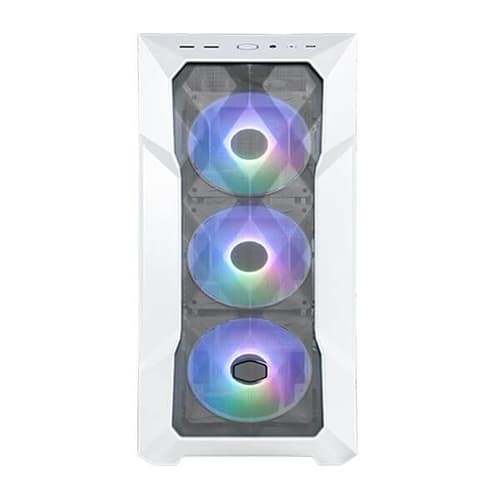

PERFORMANCE FRONT PANEL FOR FINEMESH
In addition to having a 3D contour, Polygonal FineMesh can concurrently provide high airflow and dust filtration.
IN BOTH BLACK AND WHITE COLORS AVAILABLE
You can select the hue that most closely resembles your setup by choosing the Cooler Master MasterBox TD500 Mesh V2 White in either black or white!
INCLUDED ARE THREE CF120 ARGB FANS
Cooler Master MasterBox TD500 Mesh V2 White from Cooler Master Pre-installed CF120 ARGB fans ensure sufficient airflow, maintaining cool temperatures, excellent performance, and attractive design even during the most demanding gameplay sessions.
SUPPORT FOR USB 3.2 GEN 2 TYPE C
The I/O panel’s built-in USB 3.2 Gen 2 Type C port enables flexible and efficient data transfer.

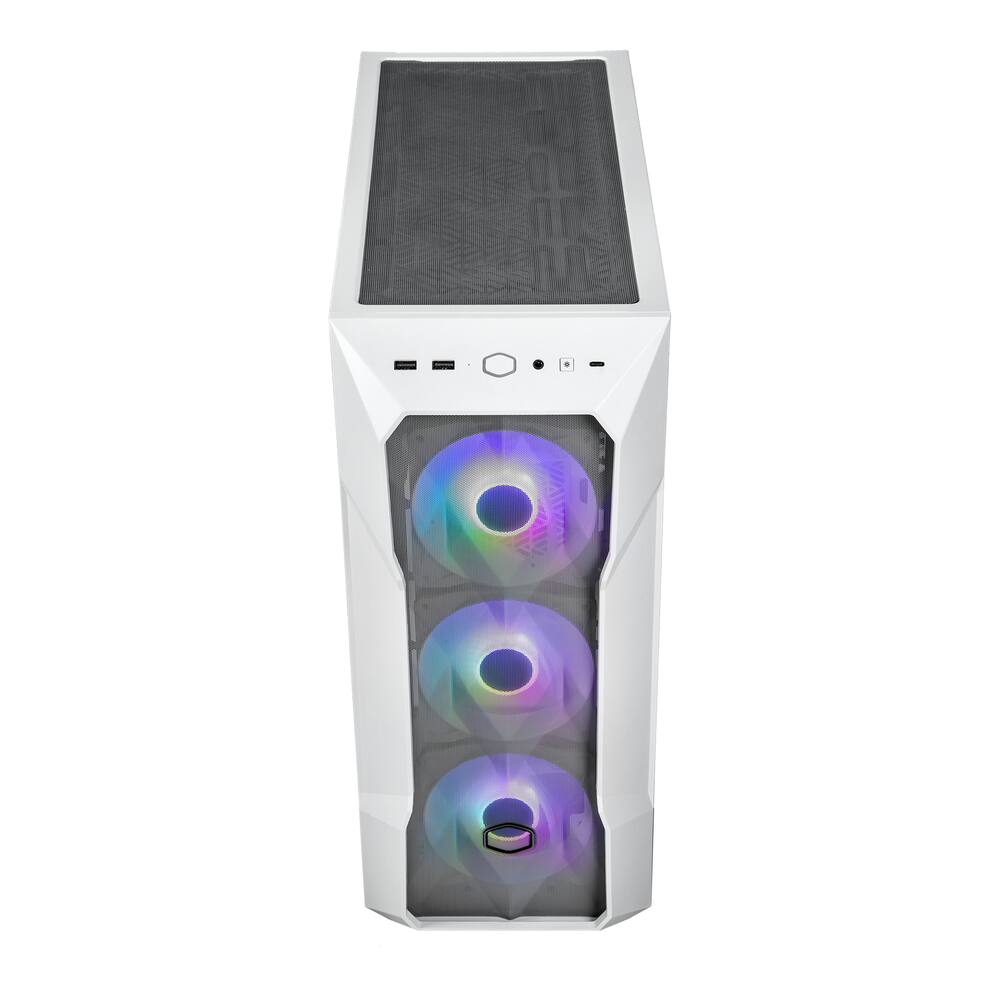

TOP PANEL IS REMOVABLE
For improved access during assembly and simple mounting of cooling solutions, the top panel is completely detachable.

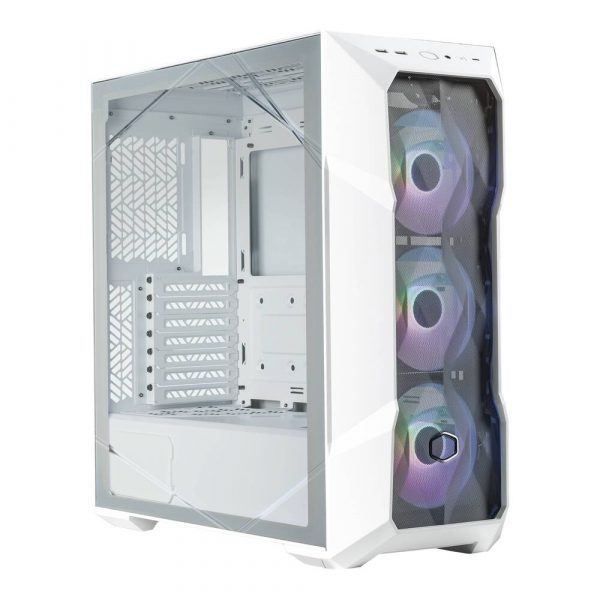

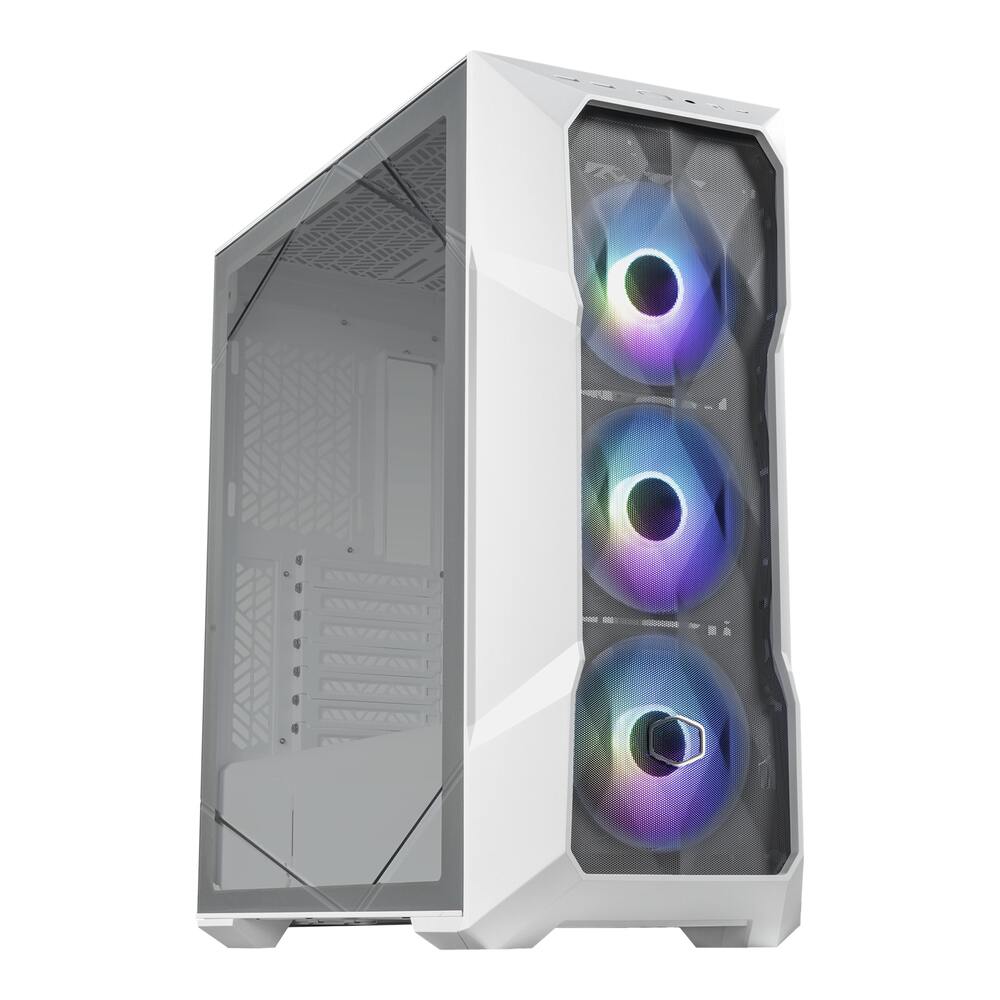

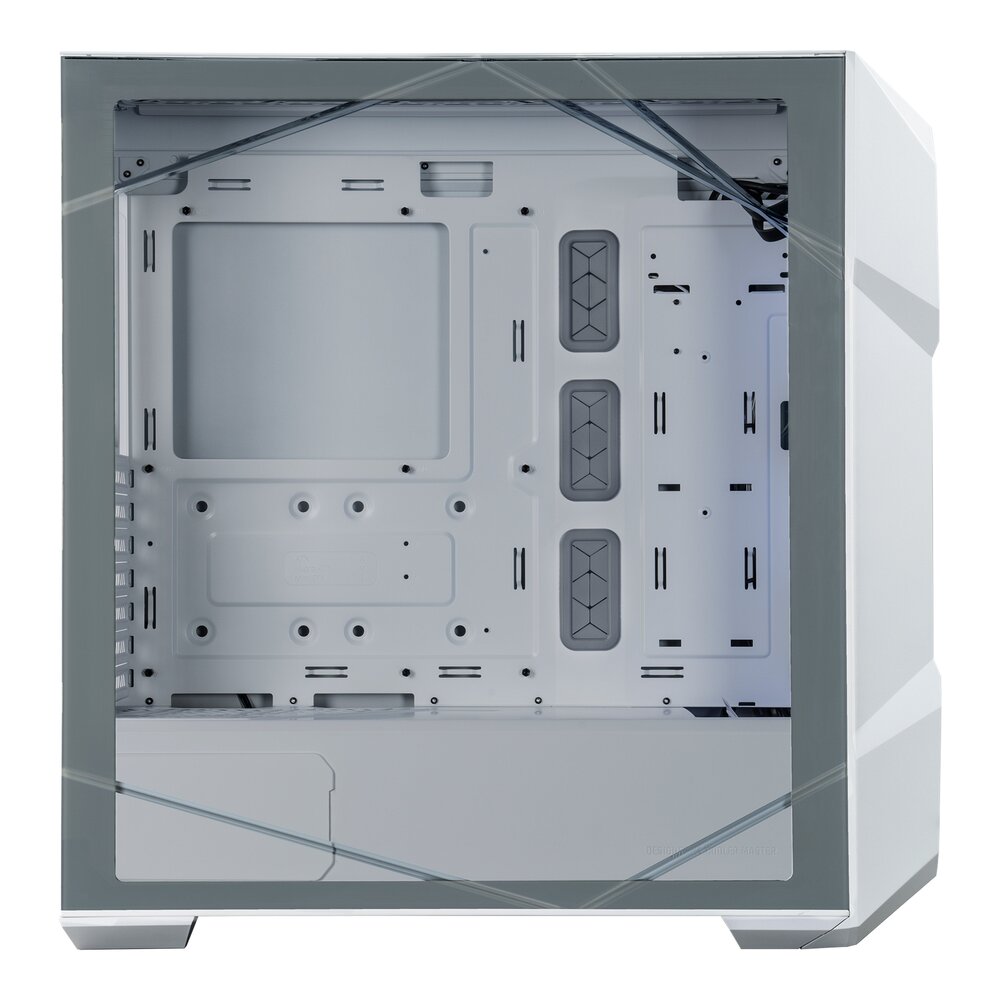

CRYSTALLINE TG SIDE PANEL WITHOUT TOOLS
Having a tool-free side panel made of crystal-clear tempered glass for easy entry to the interiors.
MODERN COOLING OPTIONS
Performance is not sacrificed thanks to support for up to seven 120mm fans and 360mm front and top radiator support.
WITH REMOVABLE COVER PSU SHROUD
Users of the Cooler Master MasterBox TD500 Mesh V2 White removable PSU cover can easily choose whether to display or conceal their PSUs.

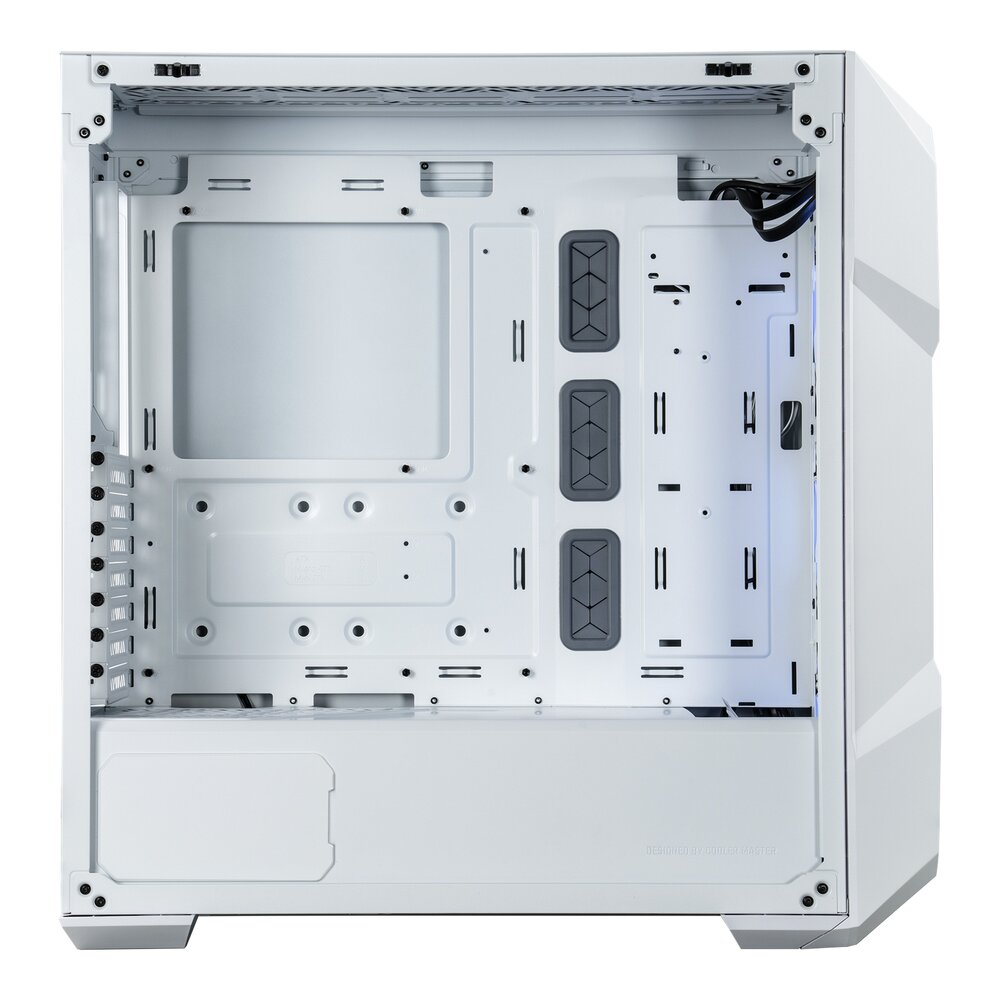

COMPATIBILITY OF HARDWARE

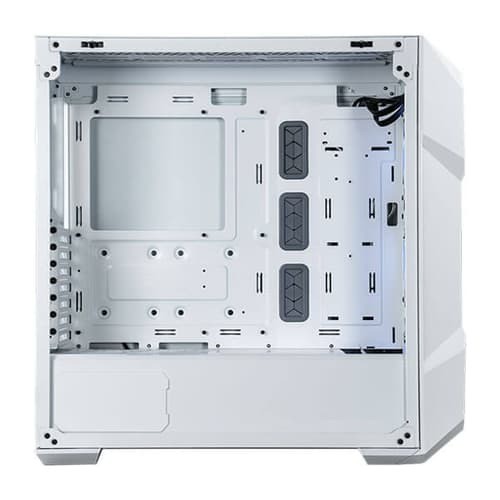

ITX, M-ATX, and ATX systems are inherently compatible with the Cooler Master MasterBox TD500 Mesh V2 White. E-ATX motherboards can accommodate measurements up to 12″ x 10.7″; examples include the SSI-CEB versions.
|Materials – Exterior||Steel, Mesh, Plastic|
|Materials – Left Side Panel||Tempered Glass|
|Dimensions (L x W x H)||499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)|
|Volume||50L (excl. Protrusions)|
|Motherboard Support||Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12″ x 10.7″ motherboards, may impact cable management feature)|
|3.5″ Drive Bays||2|
|2.5″ Drive Bays||3|
|I/O Panel – USB Ports||2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C|
|I/O Panel – Audio In / Out||1x Audio Jack|
|I/O Panel – Other||1x ARGB Fan Hub|
|Pre-installed Fans – Front||3x 120mm CF120 ARGB|
|Fan Support – Top||3x 120mm, 2x 140mm|
|Fan Support – Front||3x 120mm, 2x 140mm|
|Fan Support – Rear||1x 120mm|
|Radiator Support – Top||120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)|
|Radiator Support – Front||120mm, 140mm, 240mm, 280mm, 360mm|
|Radiator Support – Rear||120mm|
|Clearance – CPU Cooler||165mm / 6.49″|
|Clearance – PSU||200mm, (Recommended up to 170mm)|
|Clearance – GFX||410mm / 16.14″|

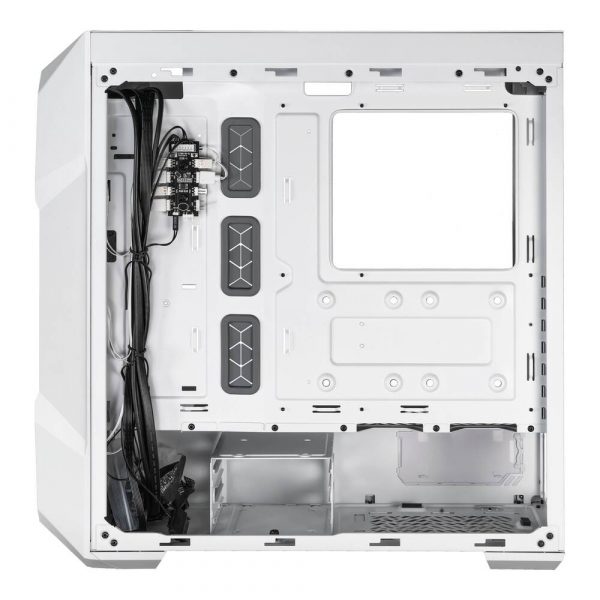

|Cable Routing – Behind Motherboard Tray||19mm / 0.74″|
|Dust Filters||Front, Top, Bottom|
|Power Supply Support||Bottom Mount, ATX|
