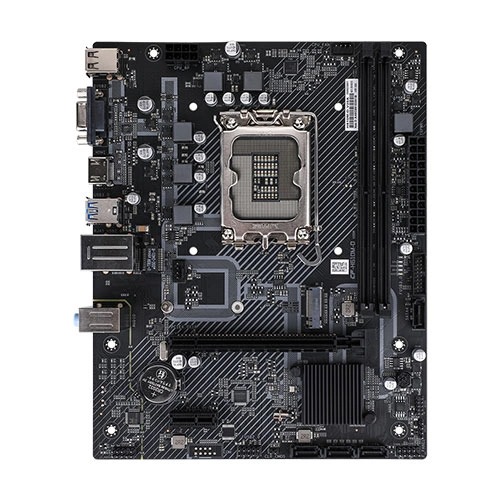

Colorful H610M-D V20A M-ATX Motherboard (Intel Socket LGA1700, DDR4)
Feature:
- Intel H610 chipset
- Colorful H610M-D V20A Supports dual-channel DDR4-3200MHz memory
- Provides 1 PCIe 3.0 x4 M.2 SSD slot
- Equipped with HDMI+VGA display interface
- Equipped with Realtek 8111H Gigabit wired network card
- Equipped with Realtek ALC897 sound card chip, supporting up to 5.1 channels
- Rear: 2 USB 3.2 Gen 1 Type-A interfaces, 4 USB 2.0 interfaces
- Front: Expandable 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
HD 5.1 Audio
Enjoy the pure rhythm, restore nature of sound
Gigabit Ethernet
Enjoy seamless networking and faster file transfers for a lag-free experience.
4x SATA 3.0
4 x SATA 3.0 Ports (6Gbps) for easy installation and cost-effective storage
DDR4 Memory Slot
Colorful H610M-D V20A has Two DDR4 memory slots with a total capacity of up to 64GB Supports DDR4 3200/2933 /2666/2400 MHz
Turbo M.2 Slot
Supports PCIe and M.2 SATA SSD Up to 32 Gbps high-speed transmission for a faster gaming experience
Specification:
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen |
| Chipset | H610 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports dual-channel memory technology (*Please visit Colorful\’s official website www.colorful.cn for the latest memory compatibility list) |
| Expansion Slots | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
| Back Panel I/O Ports | 4×USB 2.0 interfaces 2×USB 3.2 Gen 1 Type-A interfaces 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution 1×VGA interface 1×Gigabit network interface 3×Audio interfaces (audio input/audio output/microphone) |
| Internal I/O Connector | 1×CPU fan pin 1×System fan pin 1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces 1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces 1×Front audio pin 1×Front panel pin 1×Speaker pin 1×Clear CMOS jumper 1×BIOS burner pin |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only. |
