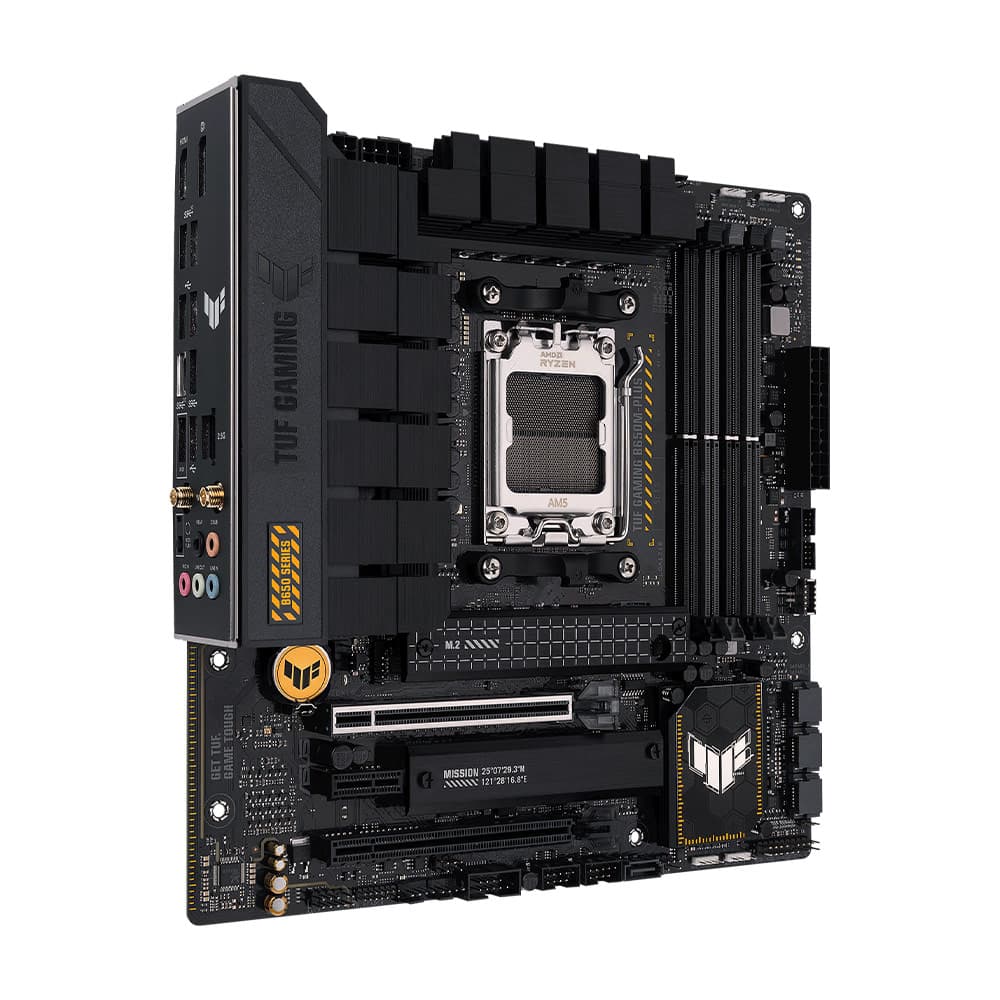

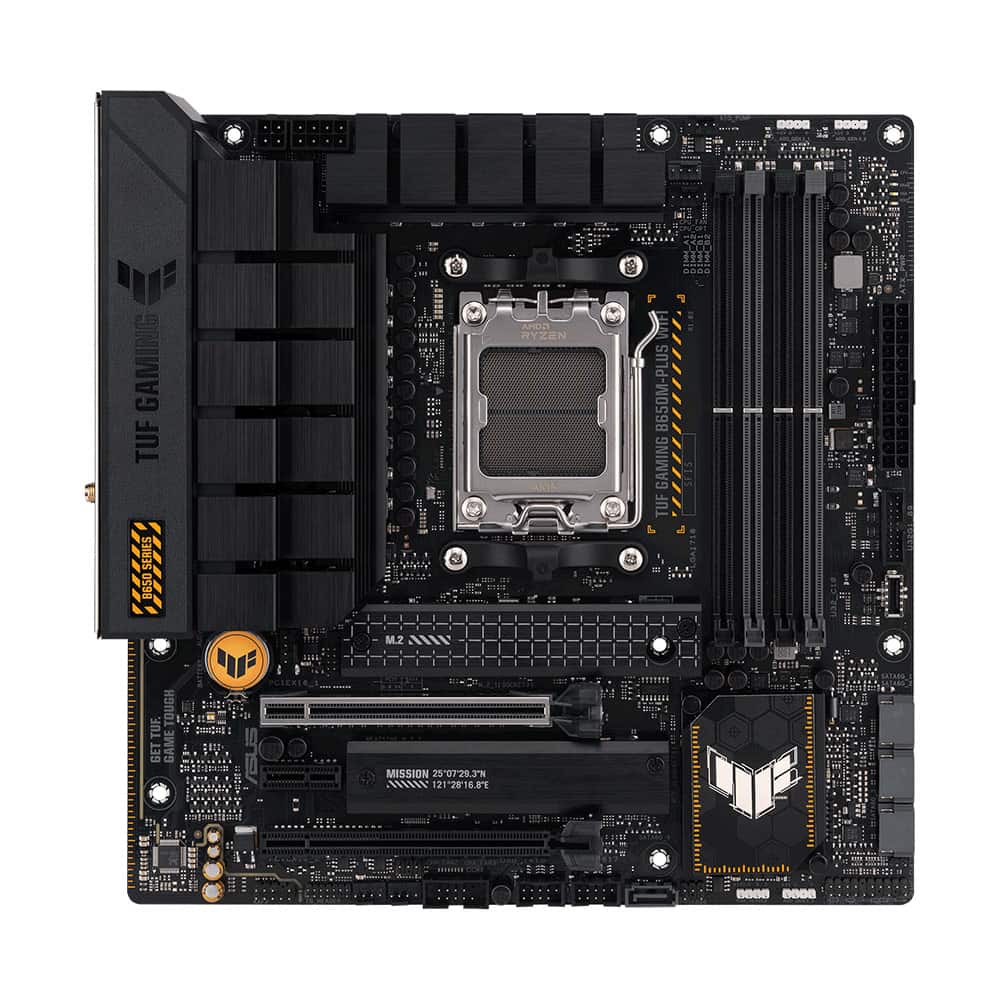

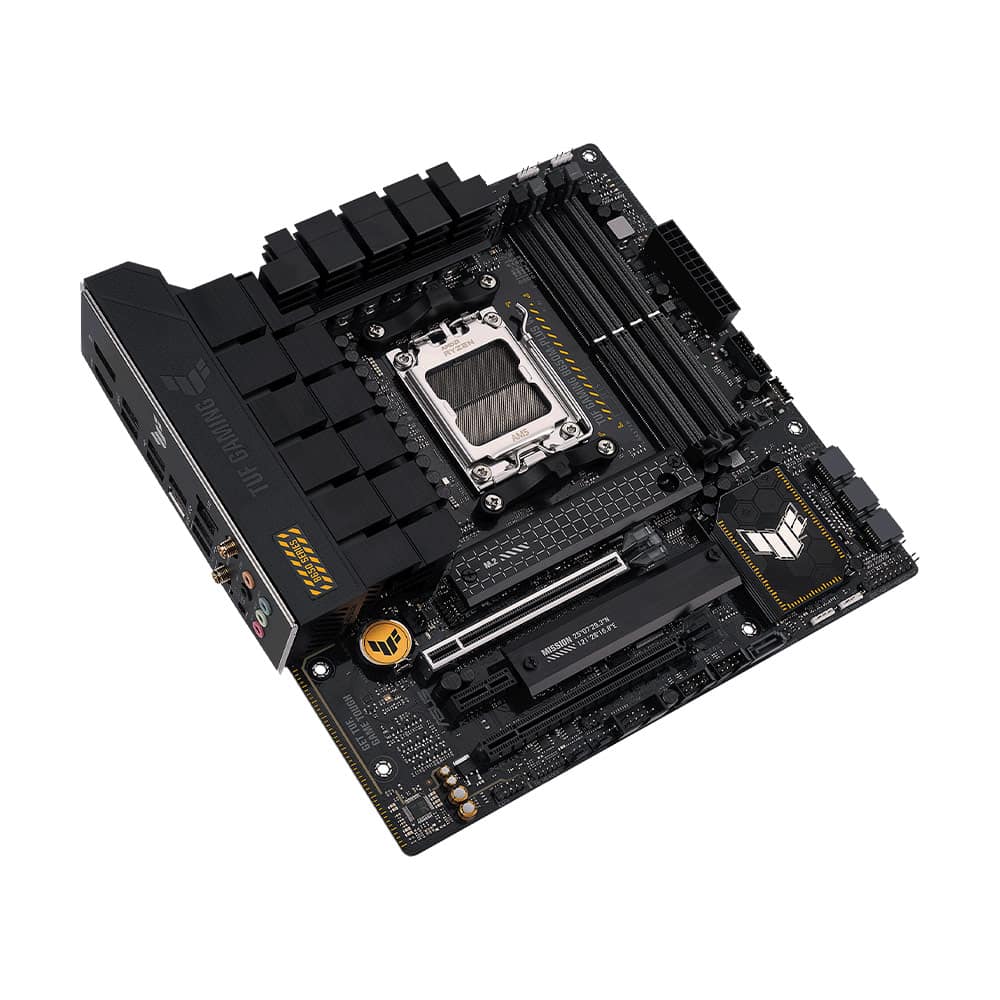

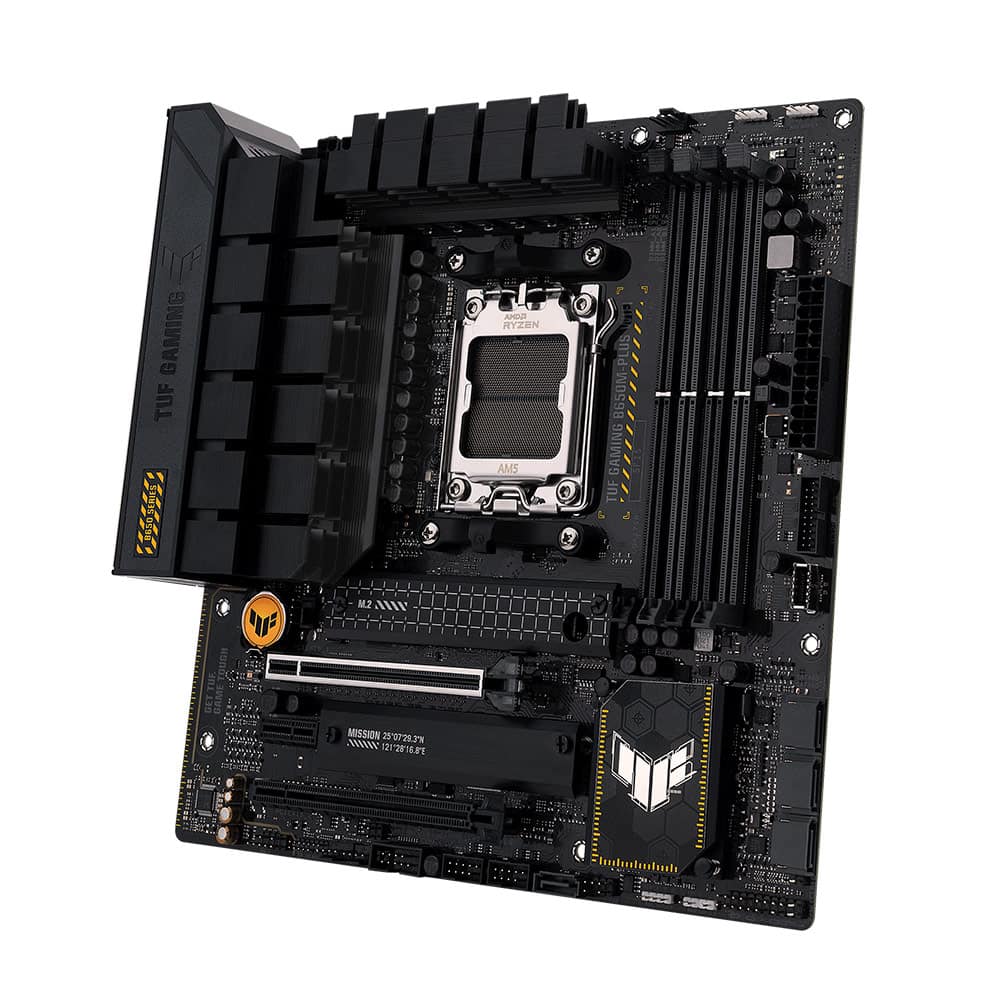

Asus TUF Gaming B650M Plus WIFI DDR5 Motherboard
Features of Asus TUF Gaming B650M Plus WIFI DDR5 :
- 12+2 power stages (rated 60A) with enlarged VRM heatsinks
- PCIe®0 for M.2 storage
- DDR5 memory module support
- USB 3.2 Gen 2×2 Type-C®and a front-panel USB 3.2 Gen 1 Type-C® header
- 5 Gb Ethernet
- ASUS Two-Way AI Noise Cancelation
- WiFi 6
Overview of Asus TUF Gaming B650M Plus WIFI DDR5 :
INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The Asus TUF Gaming B650M Plus WIFI DDR5 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Armoury Crate
The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 2+ and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD’s latest CPUs, plus support for faster memory and storage, Asus TUF Gaming B650M Plus WIFI DDR5 motherboards are the perfect foundation for your next high-core-count AMD battle rig.
Teamed Power Stages
12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
DRAM Overclocking Performance
DDR5 OC 6400
Comprehensive memory tuning options are the cornerstone of Asus TUF Gaming B650M Plus WIFI DDR5 motherboards. With Asus TUF Gaming B650M Plus WIFI DDR5 motherboards, you can extract all of the potential out of your DDR5 modules, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.
Cooler By Design
1. Enlarged VRM Heatsink
The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.
2. Optimized M.2 Heatsink Design
All M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.
Connectivity
Asus TUF Gaming B650M Plus WIFI DDR5 motherboards reach new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt™ (USB4®) expands compatibility and bandwidth even further.
EASY PC DIY
The Asus TUF Gaming B650M Plus WIFI DDR5 offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
Safeslot Core+ & SafeDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.
M.2 Q-Latch
The innovative Q-Latch in Asus TUF Gaming B650M Plus WIFI DDR5 makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
IMMERSIVE GAMING
Asus TUF Gaming B650M Plus WIFI DDR5 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
2.5 Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
Realtek 7.1 Surround Sound
The unique audio codec designed in close collaboration with Realtek for Asus TUF Gaming B650M Plus WIFI DDR5 motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.
THIS CHANGES EVERYTHING
FROM THIS NEW PLATFORM,
YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and Asus TUF Gaming B650M Plus WIFI DDR5 motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.
Specifications of Asus TUF Gaming B650M Plus WIFI DDR5 :
CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
* Refer to www.asus.com for CPU support list. | |
Chipset | AMD B650 |
Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture | |
Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
OptiMem II | |
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
Graphics | 1 x DisplayPort** |
1 x HDMI® port*** | |
* Graphics specifications may vary between CPU types. | |
** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
***Supports 4K@60Hz as specified in HDMI 2.1. | |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
1 x PCIe 4.0 x16 slot | |
AMD B650 Chipset | |
1 x PCIe 4.0 x16 slot (supports x4 mode) | |
1 x PCIe 4.0 x1 slot | |
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | |
Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
AMD Ryzen™ 7000 Series Desktop Processors | |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
AMD B650 Chipset | |
4 x SATA 6Gb/s ports | |
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
TUF LANGuard | |
Wireless & Bluetooth® | Wi-Fi 62×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
USB | Rear USB (Total 8 ports) |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) | |
2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
1 x USB 3.2 Gen 1 port (1 x Type-A) | |
4 x USB 2.0 ports (4 x Type-A) | |
Front USB (Total 7 ports) | |
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODECSupports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
Audio Features | |
Audio Shielding | |
Premium audio capacitors | |
Dedicated audio PCB layers | |

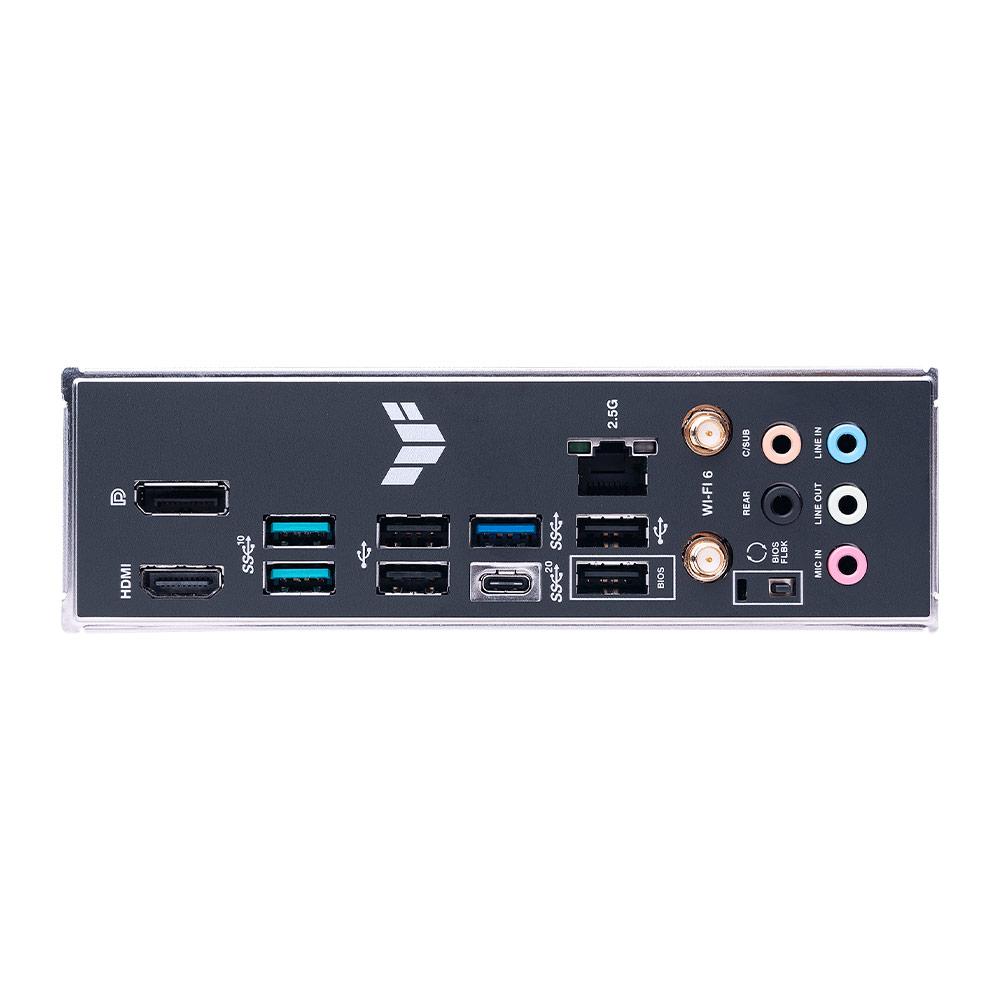

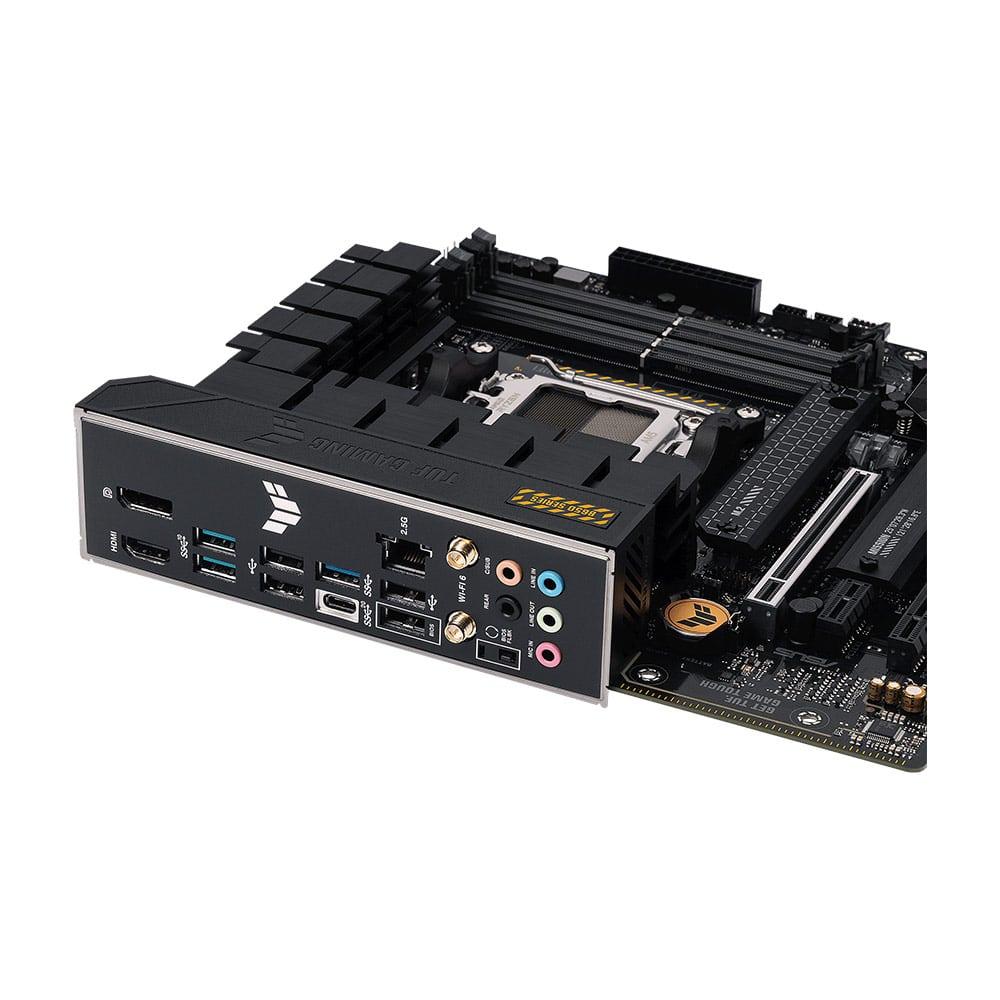

Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
1 x USB 3.2 Gen 1 port (1 x Type-A) | |
4 x USB 2.0 ports (4 x Type-A) | |
1 x DisplayPort | |
1 x HDMI®port | |
1 x Wi-Fi Module | |
1 x Realtek 2.5Gb Ethernet port | |
5 x Audio jacks | |
1 x BIOS FlashBack™ button | |
Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
3 x 4-pin Chassis Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
1 x 8-pin +12V Power connector | |
1 x 4-pin +12V Power connector | |
Storage related | |
2 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB Gen 1 connector (supports USB Type-C® ) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x Aura RGB header | |
1 x Clear CMOS header | |
1 x COM Port header | |
1 x Front Panel Audio header (AAFP) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thunderbolt™ header | |
Special Features | ASUS TUF PROTECTION |
DIGI+ VRM (Digital power design with DrMOS) | |
Enhanced DRAM Overcurrent Protection | |
ESD Guards | |
TUF LANGuard | |
Overvoltage Protection | |
SafeSlot Core+ | |
Stainless-Steel Back I/O | |
ASUS Q-Design | |
M.2 Q-Latch | |
Q-DIMM | |
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
Q-Slot | |
ASUS Thermal Solution | |
M.2 heatsink | |
VRM heatsink design | |
ASUS EZ DIY | |
BIOS FlashBack™ button | |
BIOS FlashBack™ LED | |
ProCool | |
Pre-mounted I/O shield | |
SafeDIMM | |
Aura Sync | |
Aura RGB header | |
Addressable Gen 2 headers | |
Software Features | ASUS Exclusive Software |
Armoury Crate | |
Aura Creator | |
Aura Sync | |
Fan Xpert 2+ | |
Power Saving | |
Two-Way AI Noise Cancellation | |
AI Suite 3 | |
-TurboV EVO | |
-DIGI+ VRM | |
-PC Cleaner | |
TUF GAMING CPU-Z | |
DTS Audio Processing | |
MyAsus | |
Norton Anti-virus software (Free Trial version) | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
ASUS CrashFree BIOS 3 | |
ASUS EZ Flash 3 | |
ASUS UEFI BIOS EZ Mode | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

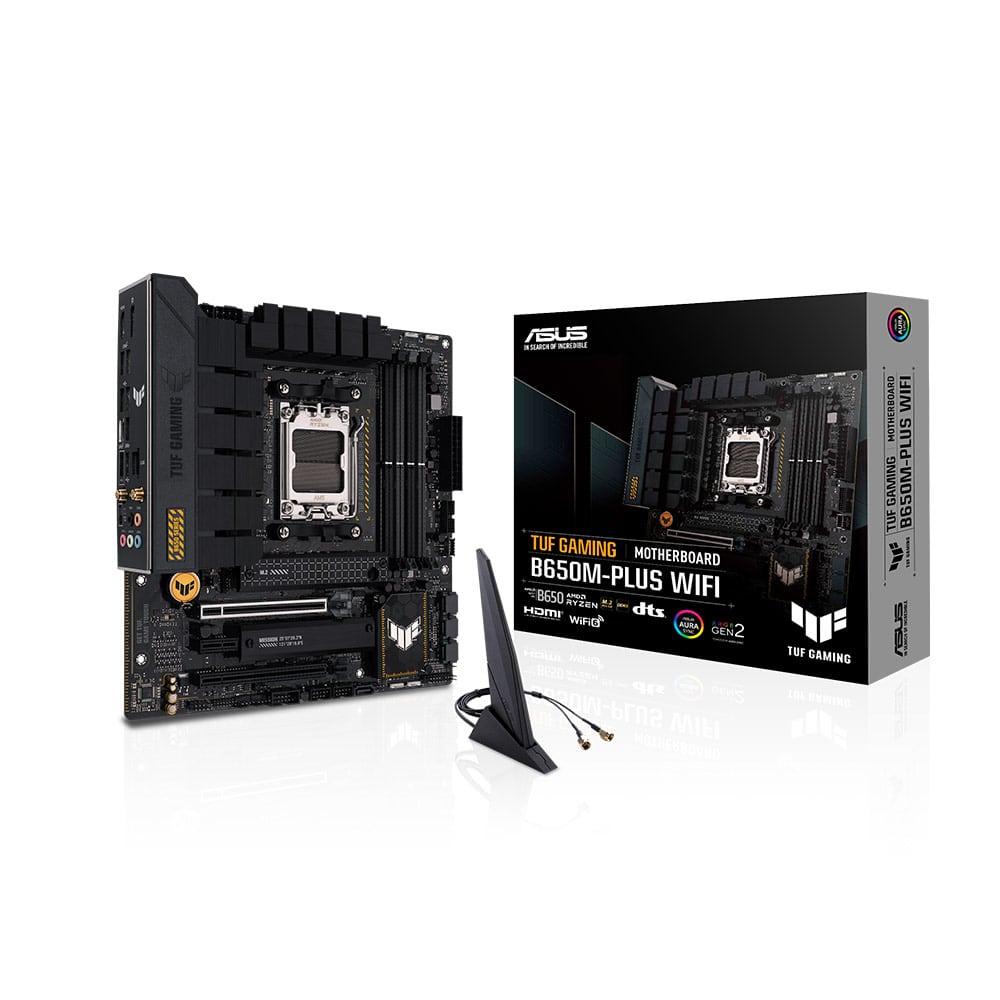

Accessories | Cables |
2 x SATA 6Gb/s cables | |
Miscellaneous | |
1 x ASUS Wi-Fi moving antennas | |
1 x Rubber Package for M.2 | |
1 x Screw package for M.2 SSD | |
Documentation | |
1 x TUF Certification card | |
1 x User guide | |
Operating System | Windows®11, Windows®10 64-bit |
Form Factor | micro-ATX Form Factor |
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | |
Warranty | 3 Years |
