- Premium aesthetics: 4 mm tempered glass panels with aluminum frame and integrated Aura Sync lighting create a sleek and stylish appearance
- Patented 11° tilt design & optimized airflow: Delivers enhanced airflow and cooling around CPU, graphics card, and a back-mounted M.2 SSD
- Compatibility with demanding hardware: Supports one ATX PSU, 3-slot graphics card without a riser cable, 240 mm radiator, water-cooling pump and reservoir, and up to five fans
- Extensive connectivity: Built-in extension hub and advanced front panel I/O ports with one USB 3.2 Gen 2 Type-C®, two USB 3.2 Gen 1 Type-A, and an ARGB control button provide broad connectivity options
- Easy cable management and case maintenance: Extra cable routing space from the 11° tilt design, a multifunction cover and cable strips ensure effortless cable management, and removable dust filters provide simple cleaning and maintenance
- Dual orientation: Provides the flexibility to choose orientation based on workspace availability, preferences, and component display

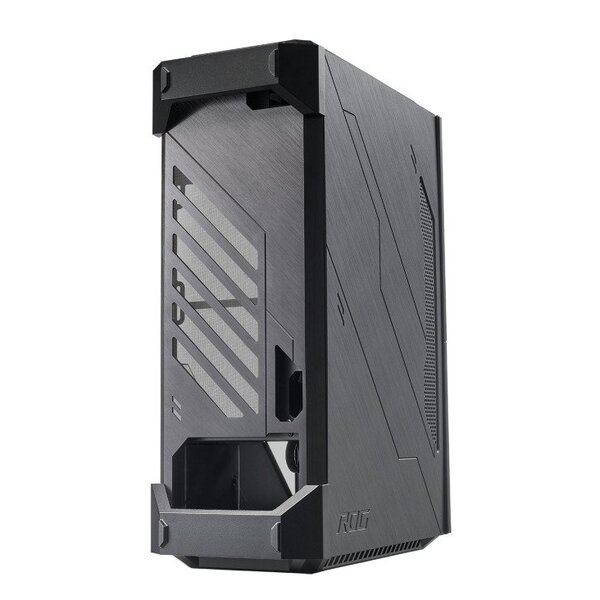

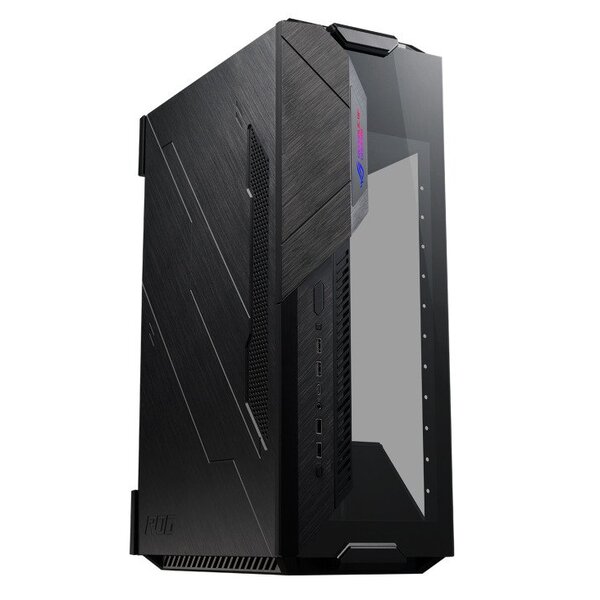

ROG Z11 is a premium Mini-ITX/DTX case with a sleek and stylish look that rises above the competition by empowering users to showcase compact builds without compromise. Each feature has been designed conscientiously with the user in mind to maximize utility, flexibility and connectivity.
Asus ROG Z11 ARGB Cabinet (Black) The patented 11° tilt design provides optimized airflow and heat dissipation to create an innovative solution that maximizes thermal performance with demanding hardware—such as an ATX power supply or a 3-slot graphics card without a riser cable. For fans of water cooling,

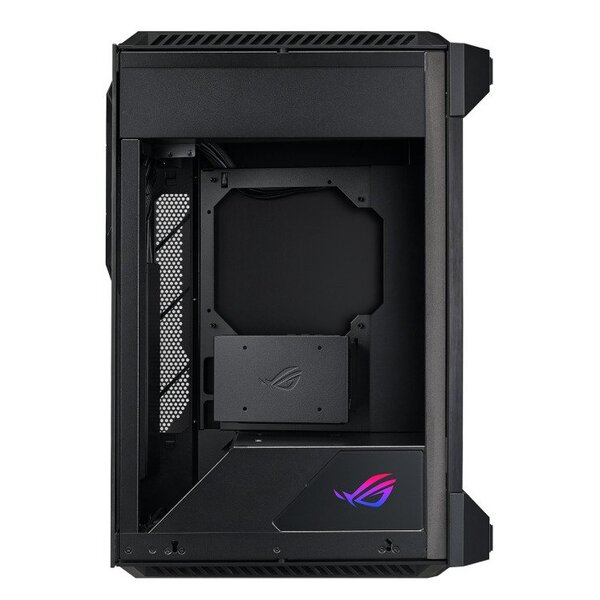

Asus ROG Z11 ARGB Cabinet (Black) offers ample space and the option of a custom liquid cooling loop. Adding style to substance, internal build components are beautifully illuminated by Aura Sync lighting that can be seen through the front and right-side 4 mm gray tempered glass panels.
THERMAL PERFORMANCE Patented 11° Tilt Design

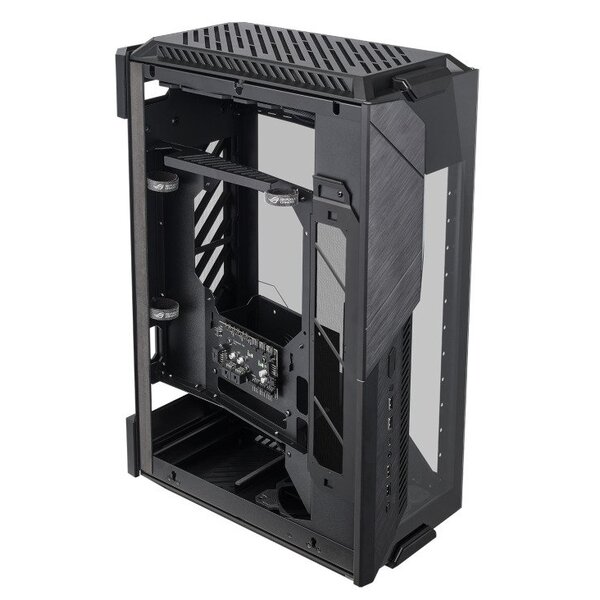

Asus ROG Z11 Black ARGB Cabinet Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.
Asus ROG Z11 Black ARGB Cabinet is built for optimized cooling performance. The entire design is conducive to efficient heat discharge from the case via the chimney effect and negative air pressure, which is generated by the fans expelling hot air at a faster rate than intake. With the choice of up to five 120 mm fans, or three 140 mm plus two 120 mm fans, users can maximize airflow and have the flexibility to customize.
EXPERIENCE Extra Cable Routing Space

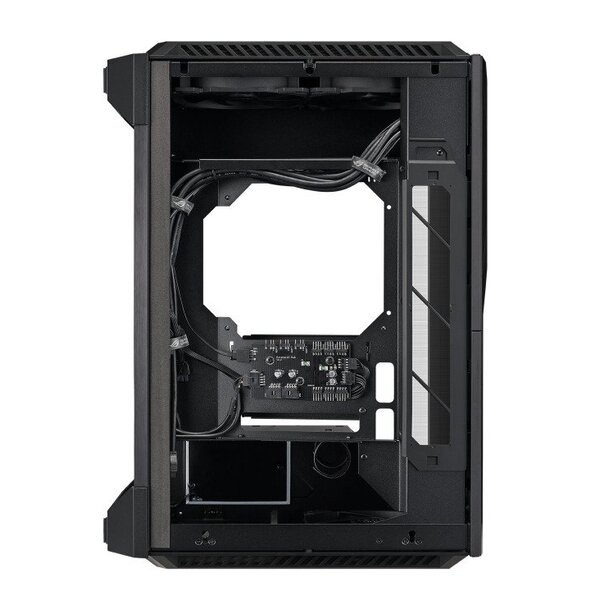

Asus ROG Z11 Black ARGB Cabinet The motherboard tray’s 11° tilt creates a maximum of 40 mm of extra space for easy cable management.
Asus ROG Z11 Black ARGB Cabinet A built-in extension hub enables builders to connect up to six PWM fans and three addressable RGB fans or LED strips, and offers an extra USB 2.0 port to make assembly easier. Plenty of I/O ports and an ARGB lighting control button on the front panel make connecting components and devices a breeze.
Removable Dust Filters
Asus ROG Z11 ARGB Cabinet (Black) Removable dust filters on the top, bottom, left, front and back sides provide complete protection from dust, and make short work of cleaning and maintenance.
PERSONALIZATION Aura Sync RGB Lighting
Asus ROG Z11 ARGB Cabinet (Black) Integrated addressable RGB LEDs in the front and side panels can be customized using a dedicated control button or with Aura Sync lighting software. These allow ROG Z11 to flash with millions of colors and a range of effects, which can be synchronized with a vast ecosystem of Aura Sync-compatible components for ultimate personalization.
Custom Liquid Cooling
Asus ROG Z11 ARGB Cabinet (Black) ROG Z11 offers an expansive setup for liquid cooling. The case reserves space for a water-cooling pump and reservoir above the power supply unit shroud, providing mini-ITX/DTX enthusiasts with the flexibility to customize their liquid-cooling loop solution.
Asus ROG Z11 ARGB Cabinet (Black) Two ROG nameplates are included to complement onboard Aura Sync lighting—one nameplate for vertical display and one for horizontal display.
|Dimensions||194 x 386 x 531 mm (WxDxH)|
|Form Factor||Mini ITX/Mini-DTX(up to 6.7”x 8”)|
|Drive Bays||Up to 2.5” SSD x 4 pcs or 2.5” SSD x 2 pcs / 3.5″ HDD x 1 pcs|
|System Fan Support||Pre-installed Fans|
Top: 2 x 140 mm
Bottom: 1 x 140 mm
|Expansion Slots||PCI-E x 2 (3 expansion slots space)|
|Weight||N.W. 8.73 kg|
|Front I/O Ports||1 x USB 3.2 Gen 2 Type-C™|
2 x USB 3.2 Gen 1 TYPE A
2 x USB 2.0 TYPE A
1 x Headphone / Microphone
Power On Button
1 x ARGB LED-illuminated Mode/Color Button
|Power Supply||ATX or SFX PSU: 160mm|
Aluminum, Steel, Tempered Glass, ABS PlasticMaximum GPU Length: 320 mmMaximum CPU Cooler Height: 130 mmRadiator Compatibility
Rear: 120, 240 mm (Thickness: 30mm)
Bottom: 120 mm (Thickness: 30mm)Cooling Support
Rear: 2 x 120 mm
Top: 2 x 120mm / 2 x140 mm
Bottom: 1 x 120mm / 1 x 140 mmCable Routing: Max. 40mmExtension Hub
Support Fan x 6, ARGB LED Strip x 3, USB 2.0 x 2
