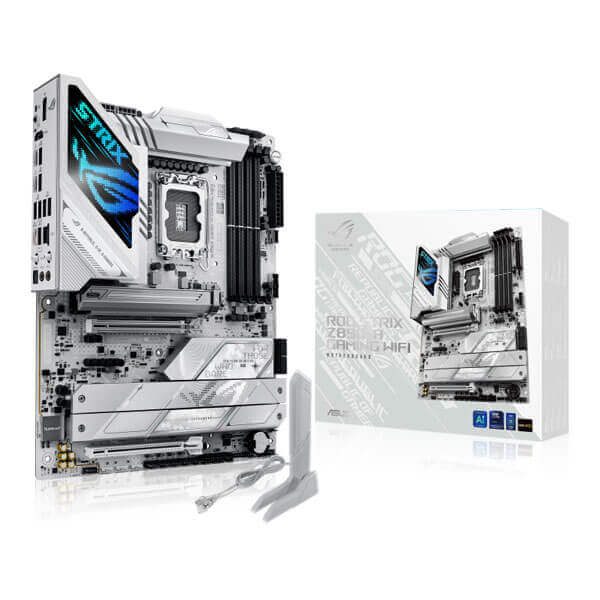

ASUS ROG Strix Z890-A Gaming WIFI ATX Motherboard (Intel Socket LGA 1851, DDR5, Wi-Fi 7)
Feature:
With Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, the ASUS ROG Strix Z890-A Gaming WIFI delivers lightning-fast data transfers, exceptional connectivity and a customizable aesthetic that can be subtle or bold. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS ROG Strix Z890-A Gaming WIFI has ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS ROG Strix Z890-A Gaming WIFI motherboards in a simple and straightforward way.
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7
PCIE 5.0
Fully embracing the new standard, the ASUS ROG Strix Z890-A Gaming WIFI offers end-to-end PCIe 5.0 support.
Specification:
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9066+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex Supports DIMM FIT ASUS Enhanced Memory Profile III (AEMPIII) |
| Graphics Port | 1 x DisplayPort,1 x HDMI,2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs |
| Expansion Slots | Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge) 2 x USB 5Gbps ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connector | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice.Images use for Representation Purpose Only. |
