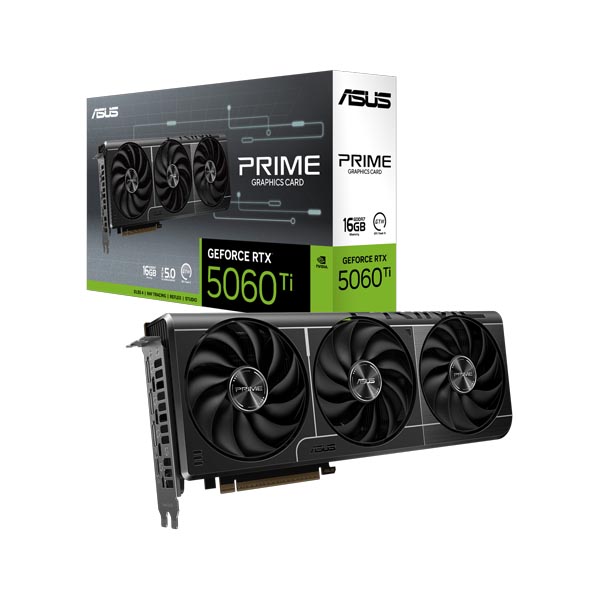

Asus PRIME RTX 5060 Ti 16GB GDDR7 Triple Fan Graphics Card
Feature:
The SFF-Ready ASUS PRIME RTX 5060 Ti 16GB GDDR7 boasts three axial-tech fans for supreme cooling.
- AI Performance: 758 AI TOPS
- OC mode: 2602 MHz (OC mode)/ 2572 MHz (Default mode)
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- 2.5-slot design allows for greater build compatibility while maintaining cooling performance
- Dual-ball fan bearings last up to twice as long as standard sleeve bearings
- 0dB technology lets you enjoy light gaming in relative silence
- Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles
- Protective Backplate is reinforced by a metal backplate for rigidity and protection.
- Auto-Extreme manufacturing process for precision and reliability
- GPU Tweak IIIÂ software provides intuitive performance tweaking, advanced thermal control and system monitoring
Primed for Power
Experience Primal performance with the ASUS PRIME RTX 5060 Ti 16GB GDDR7, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Cooling
2.5-slot Design
The ASUS PRIME RTX 5060 Ti 16GB GDDR7 features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.
0dB Technology
All three fans come to a standstill when GPU temperatures are below 50°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55°C, establishing a speed curve that balances performance and acoustics for work or play.
Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.
Specification:
| Model | PRIME-RTX5060TI-16G |
| Graphic Engine | NVIDIA® GeForce RTX™ 5060 Ti |
| AI Performance | 759 TOPs |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL® 4.6 |
| Video Memory | 16GB GDDR7 |
| Engine Clock | OC Mode: 2602MHz; Default Mode: 2572MHz (Boost Clock) |
| CUDA Cores | 4608 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Digital Max Resolution | 7680 × 4320 |
| Interface | 1 × Native HDMI 2.1b, 3 × Native DisplayPort 2.1b |
| HDCP Support | Yes (2.3) |
| Maximum Display Support | 4 |
| NVLink / CrossFire Support | No |
| Recommended PSU | 550W |
| Power Connectors | 1 × 8-pin |
| Slot | 2.5 Slot |
| Dimensions | 304 × 120 × 50mm |
| Software | ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver |
| Accessories | 1 × Speedsetup Manual, 1 × ASUS Velcro Hook & Loop, 1 × Thank You Card |
| Warranty | 3 Years |
