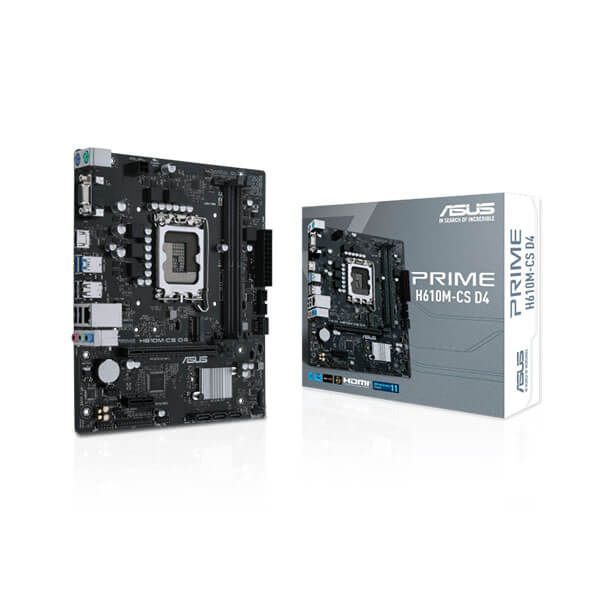

Asus Prime H610M-CS D4 M-ATX Motherboard (Intel Socket LGA1700, DDR4)
Feature:
- Intel® LGA 1700 socket:Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
- Luminous anti-moisture coating: Keep key components from moisture and corrosion
PRIME
Asus Prime H610M-CS D4 series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Asus Prime H610M-CS D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Specification:
| Platform | INTEL |
| Cpu Type | 14th Gen,13th Gen, 12th Gen,Pentium Gold,Celeron |
| Chipset | H610 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel® Extreme Memory Profile (XMP) *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to Brand Website for memory support list. |
| Graphics Port | 1 x D-Sub,1 x HDMI |
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x 16 slot Intel® H610 Chipset 1 x PCIe 3.0 x 1 slot |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Internal I/O Connector | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header support additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
